Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：39.0x40.8x6.2
Size of View Window(mm)：36x23.5
Display size(mm) ：33.25x20.45
Point spacing(mm)：0.32x0.26
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：12PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-40~70℃
Power supply voltage：3.3V
Driver chip model：ST7567

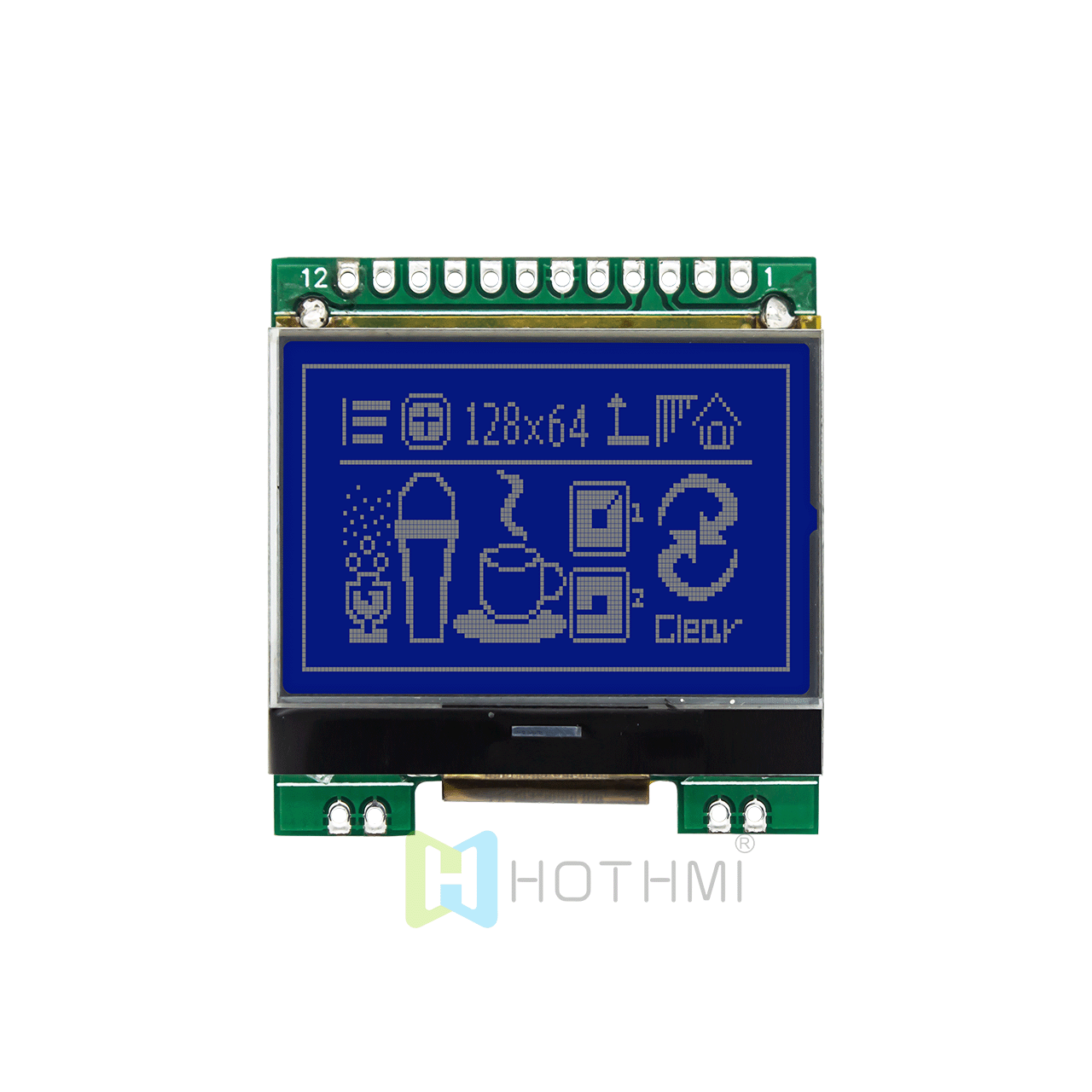

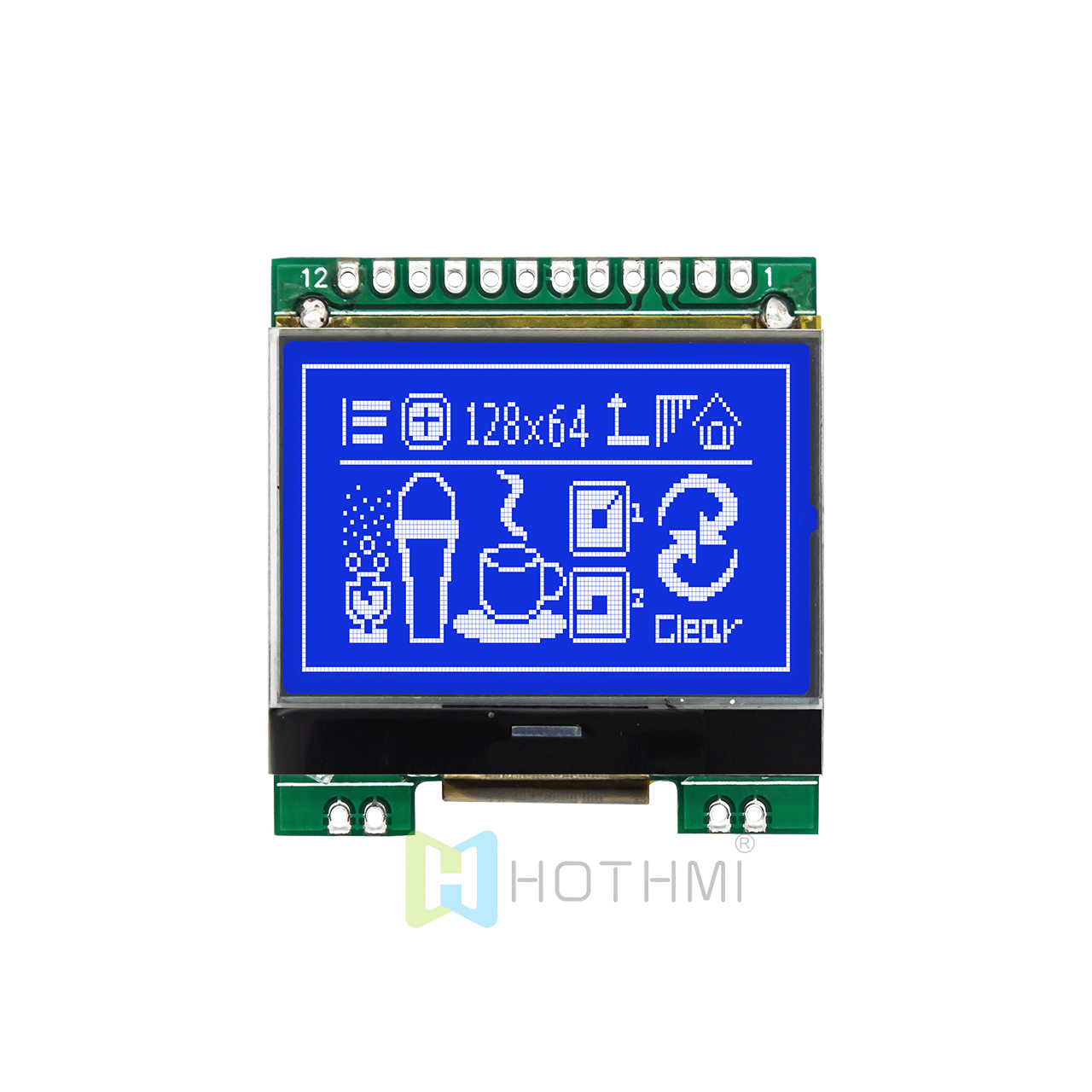

This LCD graphics module HotDisplay128x64 displays white pixels on a blue background.
Hot Display HTM12864C-25W-A5P is a 128 x 64 LCD that displays white characters on a blue background. This transmissive graphics display operates on a 5V supply voltage. Compact design, blue LCD display, provides you with the best viewing experience and optimal 6 o'clock viewing direction. It operates over a wide temperature range, from as low as -20°C to as high as 70°C. It stands out with its unique side white backlighting, which improves visibility and readability in harsh lighting environments. This LCD display features a built-in ST4565R controller, ensuring high compatibility with a range of interfaces and development boards, including Arduino.
