Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：39.0x40.8x6.2
Size of View Window(mm)：36x23.5
Display size(mm) ：33.25x20.45
Point spacing(mm)：0.32x0.26
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：12PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-40~70℃
Power supply voltage：+3.3V
Driver chip model：ST7567

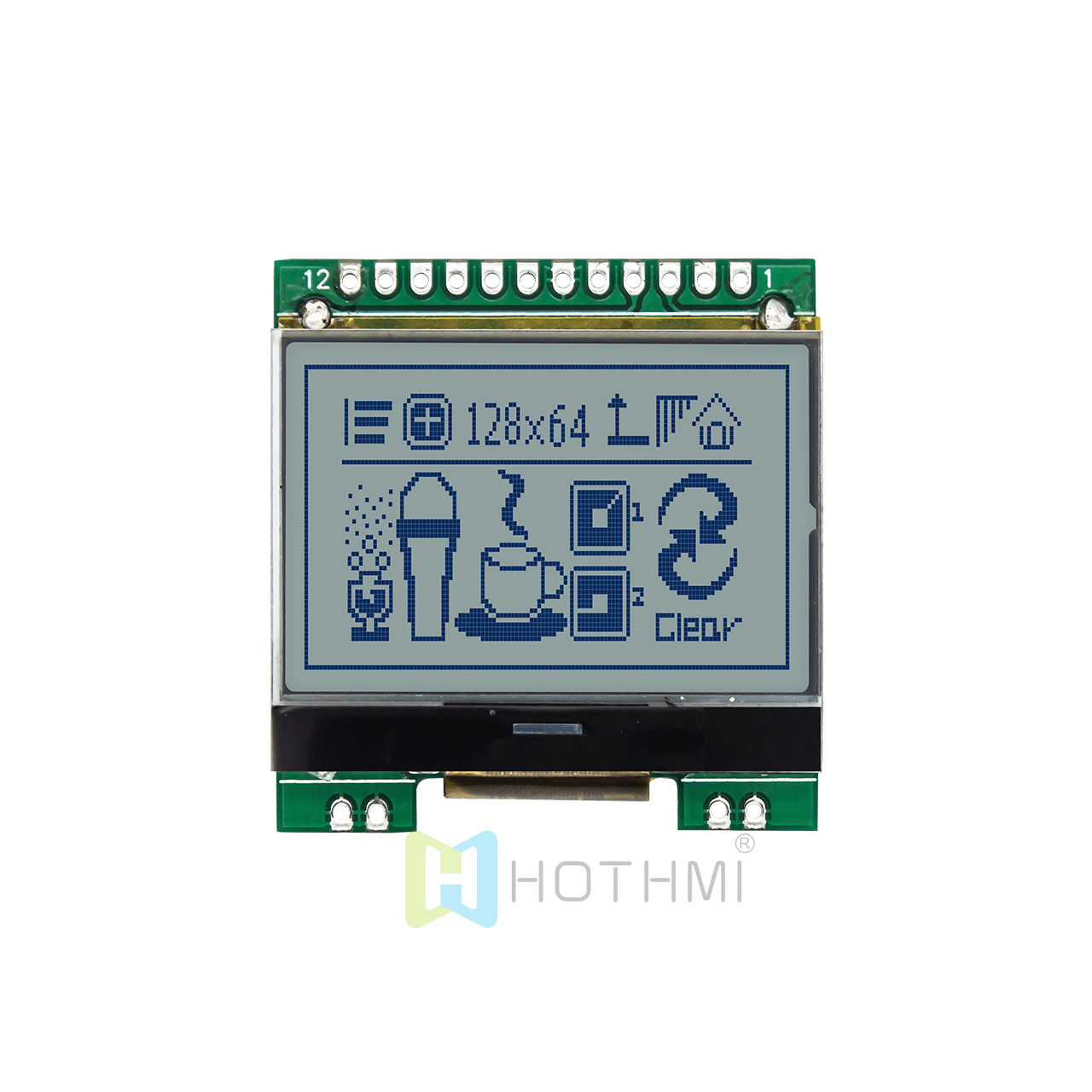

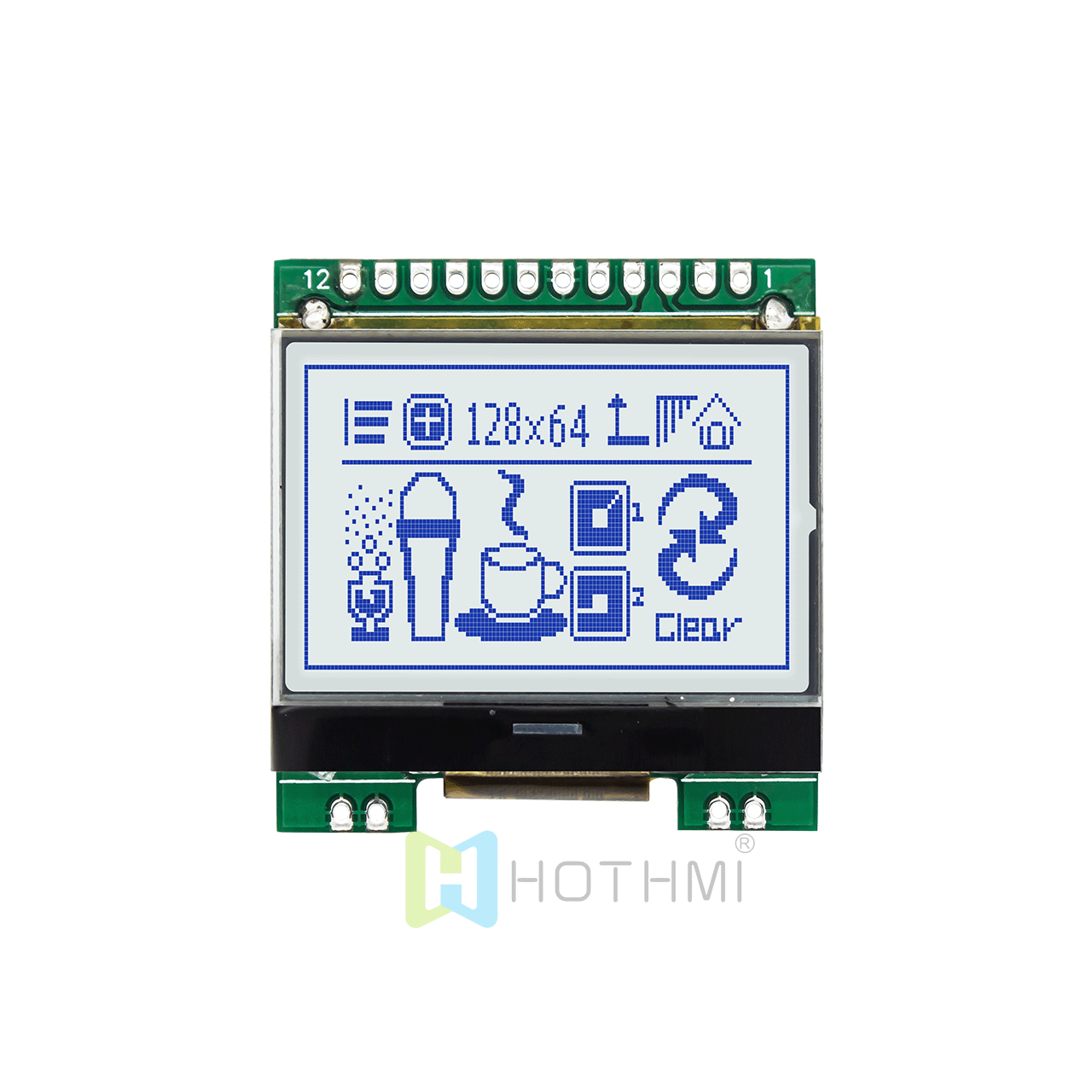

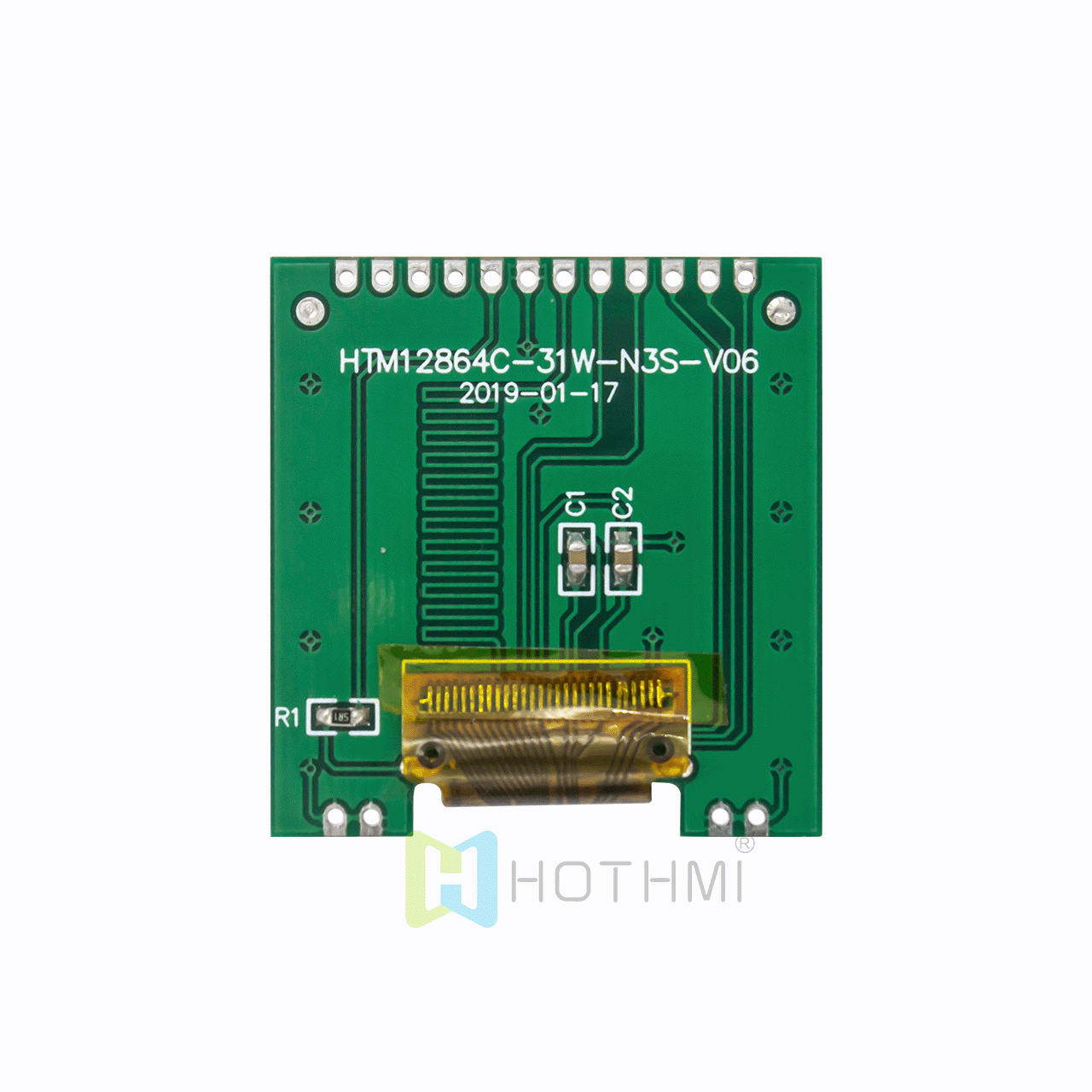

HTM12864C-11W-N3S-V06 is a 1.7-inch 128x64 dot matrix monochrome graphic LCD module, built-in ST7567 controller, 3.3V/5V voltage, white LED backlight, the brightness can be adjusted through the resistor behind the board, STN type LCD, Positive display, blue fonts and gray background when lit. The operating temperature is minus 40 degrees to above zero 70 degrees. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.
