5.0-inch 480x272 high brightness capacitive touch display | IPS full viewing angle | SPI | QSPI | MCU compatible

1. Product Overview

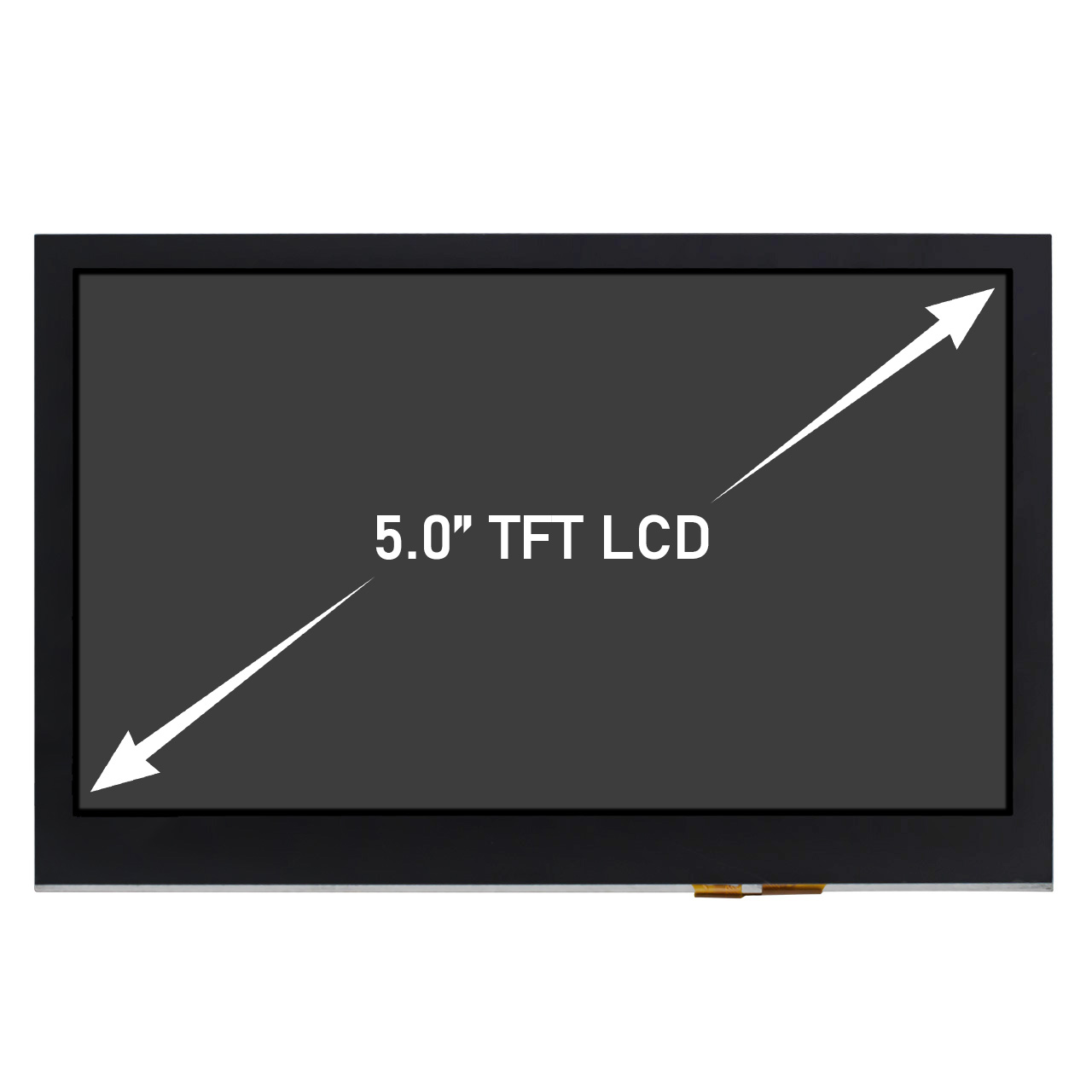

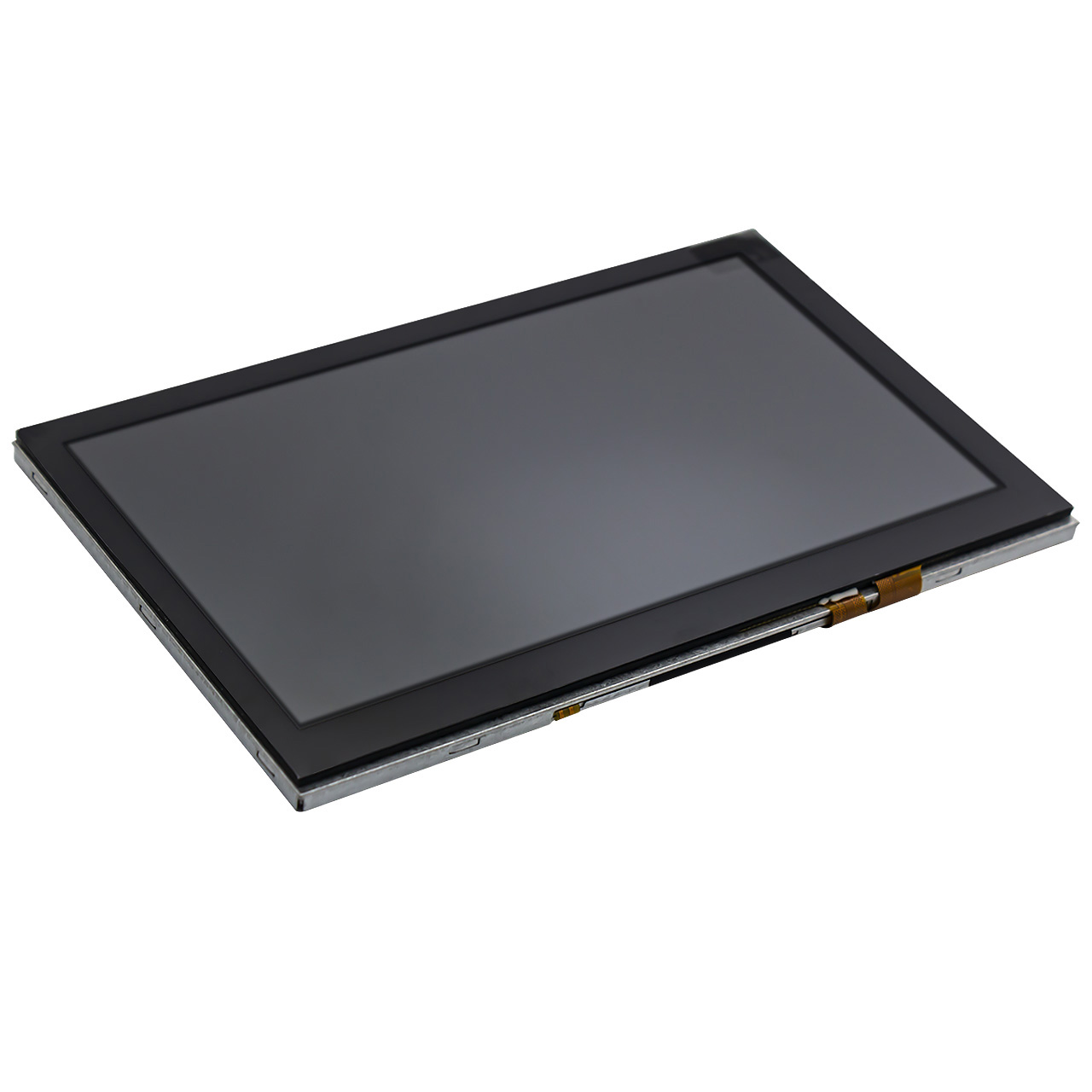

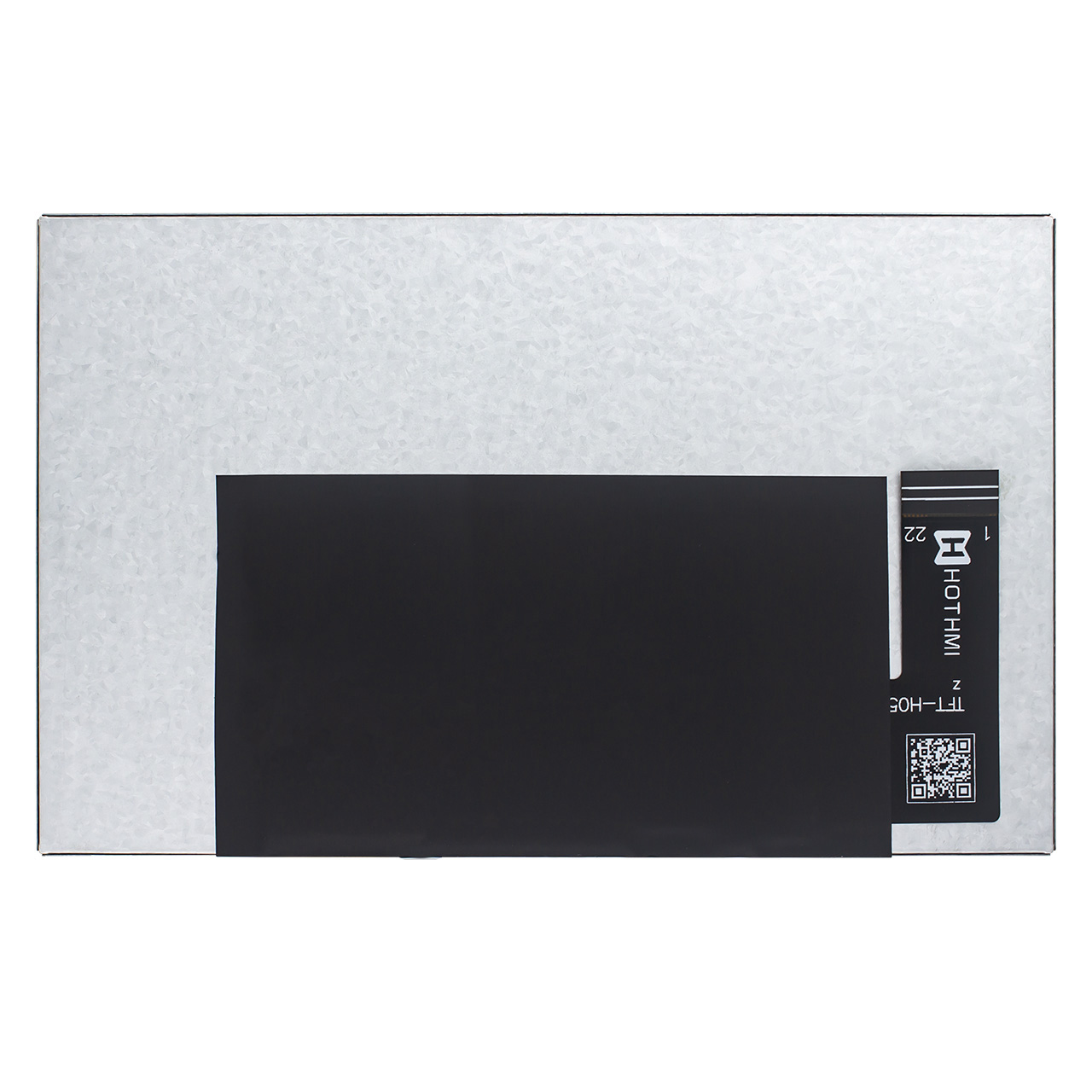

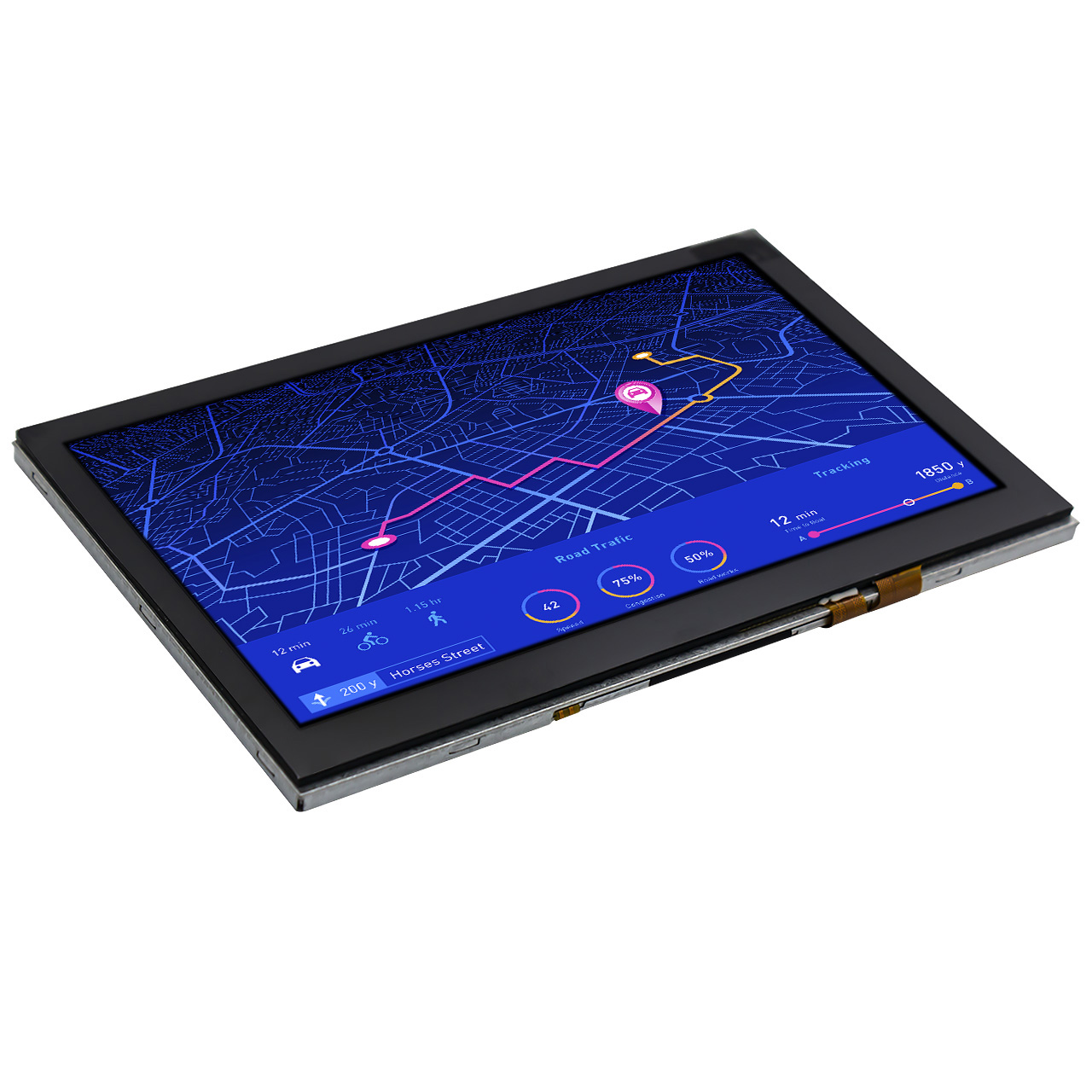

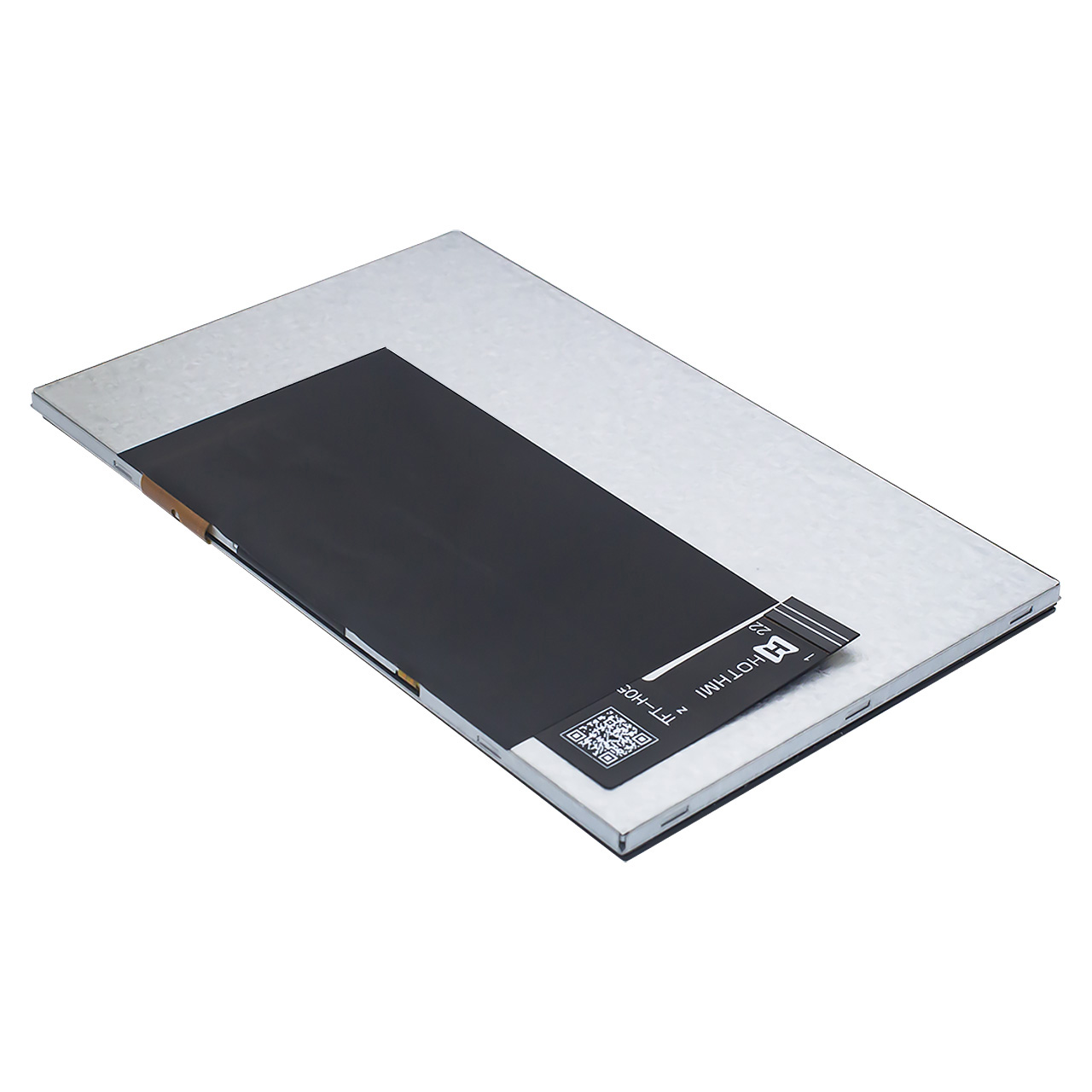

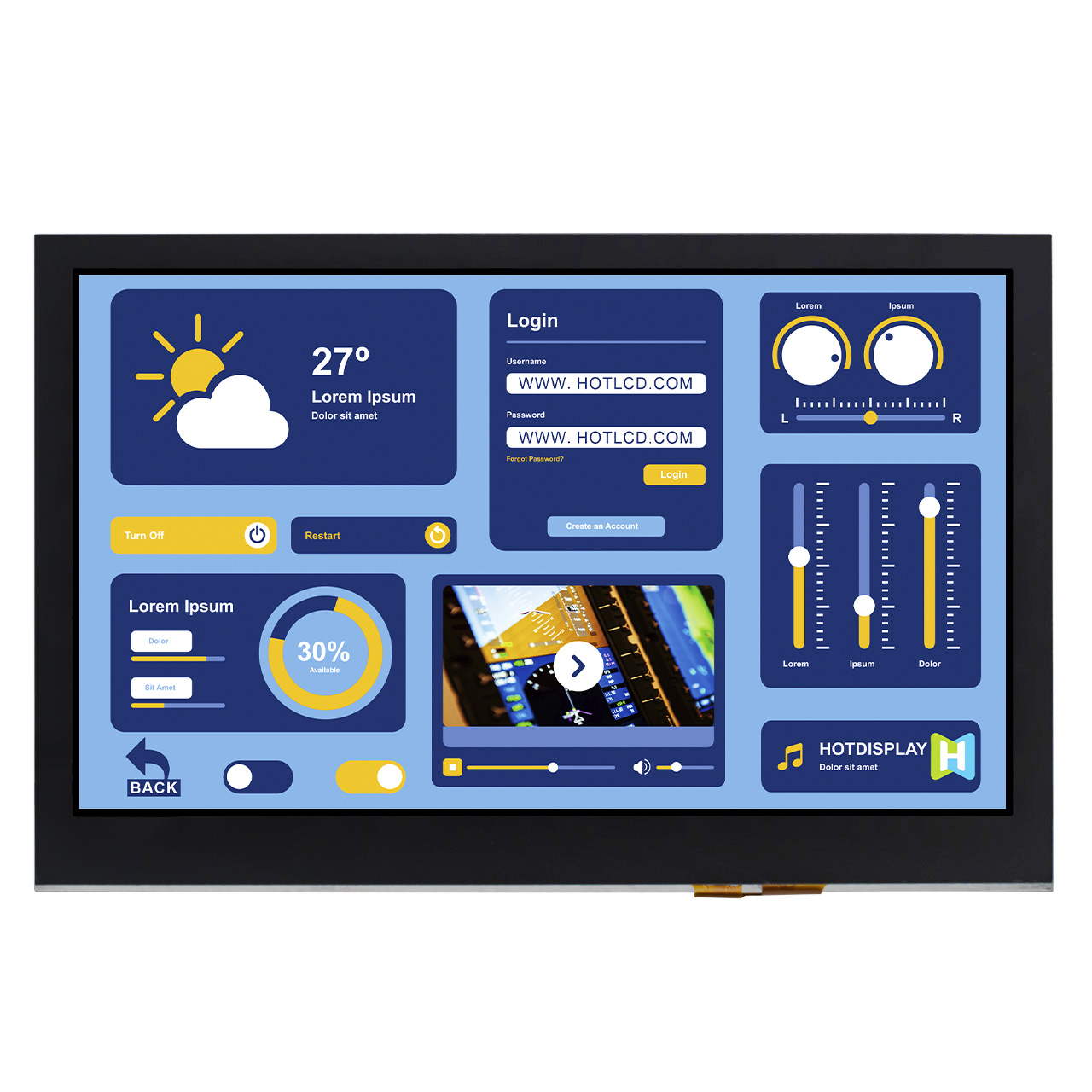

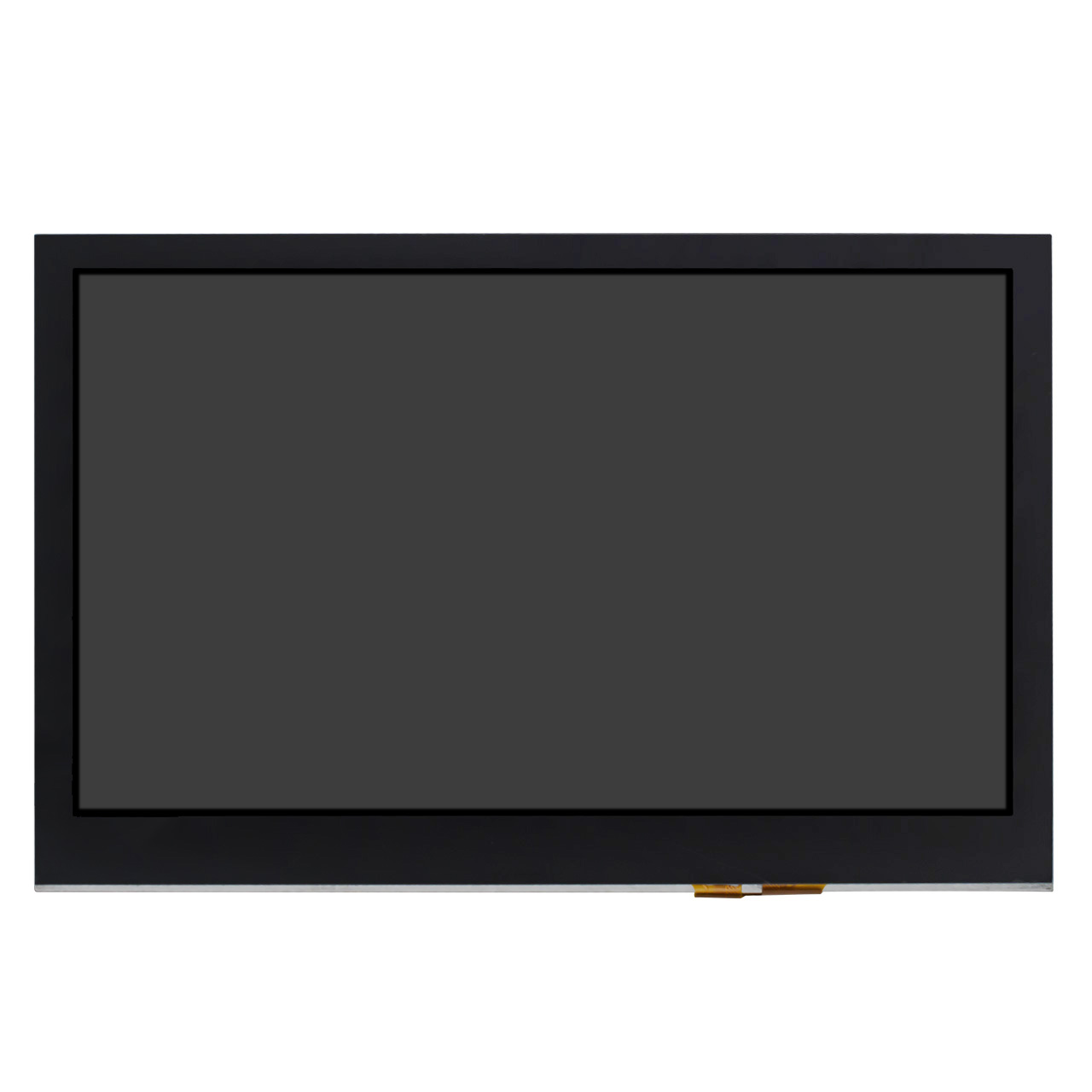

TFT-H050A19WQINV8C22 It is a 5.0-inch TFT LCD display module, adopting the Normally Black mode, with a resolution of 480 (RGB) × 272 pixels, and a color gamut covering NTSC 60%, providing a clear and high-contrast display effect. The product supports a variety of interface configurations and is suitable for industrial control, smart devices, medical instruments and other fields.

2. Core features

Display performance:

Brightness: 800 cd/m2 (constant current drive test), ensuring stable brightness output.

Color gamut: NTSC 60%, rich color performance.

Operating temperature: -30℃ ~ +80℃, wide temperature adaptability.

Electrical parameters

Operating voltage: 3.3V ±0.3V, low power design.

Driver chip: TFT driver chip (NV3041), touch chip (FT5216), support precise control.

Interface and compatibility

Supported interface: MCU 8Bit (default), SPI, QSPI, etc., flexibly switched through resistor configuration (such as R1/R2/R3).

Before mass production, the interface type must be confirmed with the manufacturer to avoid compatibility issues.

Structure and materials

Material: galvanized aluminum alloy shell, thickness 0.3mm, lightweight and corrosion-resistant.

Dimension tolerance: The accuracy of key components is ±0.3mm to ensure assembly consistency.

3. Usage suggestions

Anti-image retention: Avoid displaying static patterns for a long time (recommended ≤2 minutes), and it is recommended to use black or dynamic images as screen savers.

Environmental adaptability: Storage temperature range -40℃ ~ +90℃, suitable for harsh environments.

Backlight design: Use black component protection film to improve display contrast and durability.

4. Notes

The interface configuration must strictly refer to the document resistor position number (such as R1/R2), or contact technical support for confirmation.

The touch module (CTP) and TFT dimension tolerances are marked separately, and attention must be paid to matching during installation.

5. Application scenarios

Industrial HMI interface, portable instrumentation, smart home control panel, etc.
