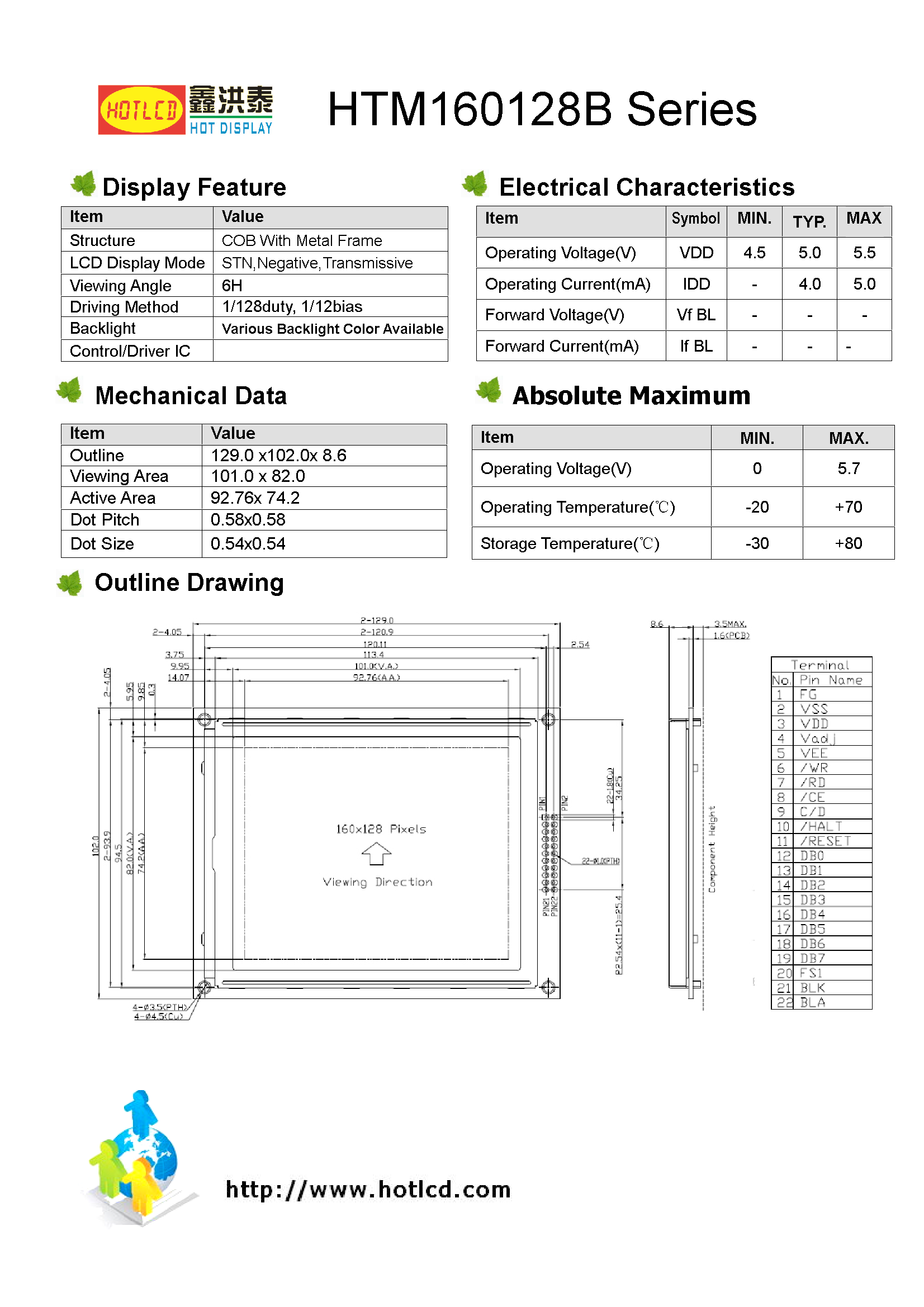

Product type：Graphic LCM
Show contents：160x128

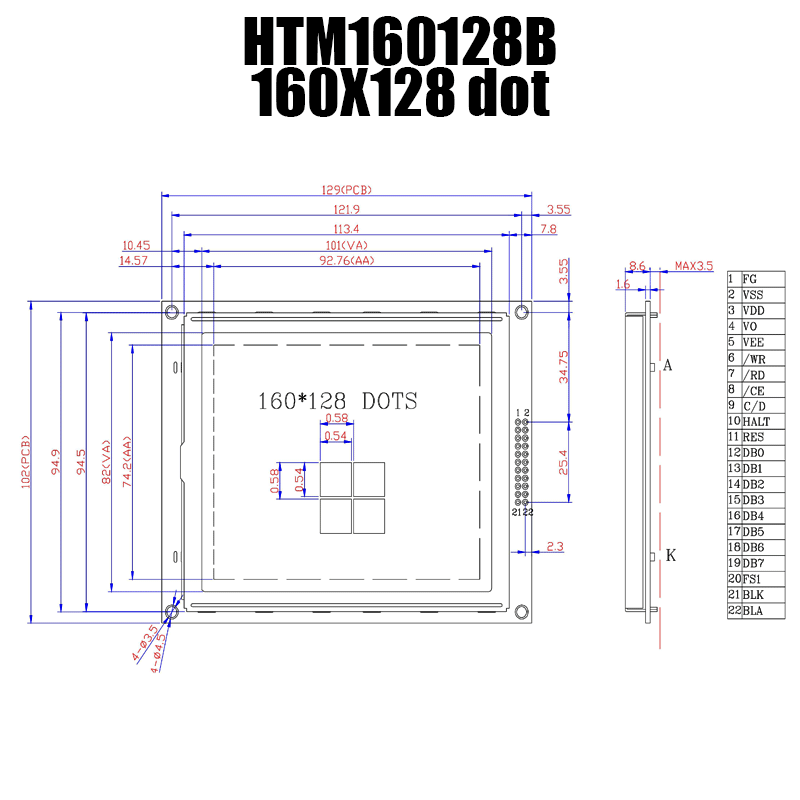

Outline size(mm) ：129.0x102.0x8.6
Size of View Window(mm)：101.0x82.0
Display size(mm) ：92.76x74.2
Point spacing(mm)：0.58x0.54
Visual angle：6H
Backlight type or brightness：WHITE
Connection PIN Number：22PIN
Interface mode：MCU
Working temperature：-20~70℃
Power supply voltage：5.0v
Driver chip model：RA6963
