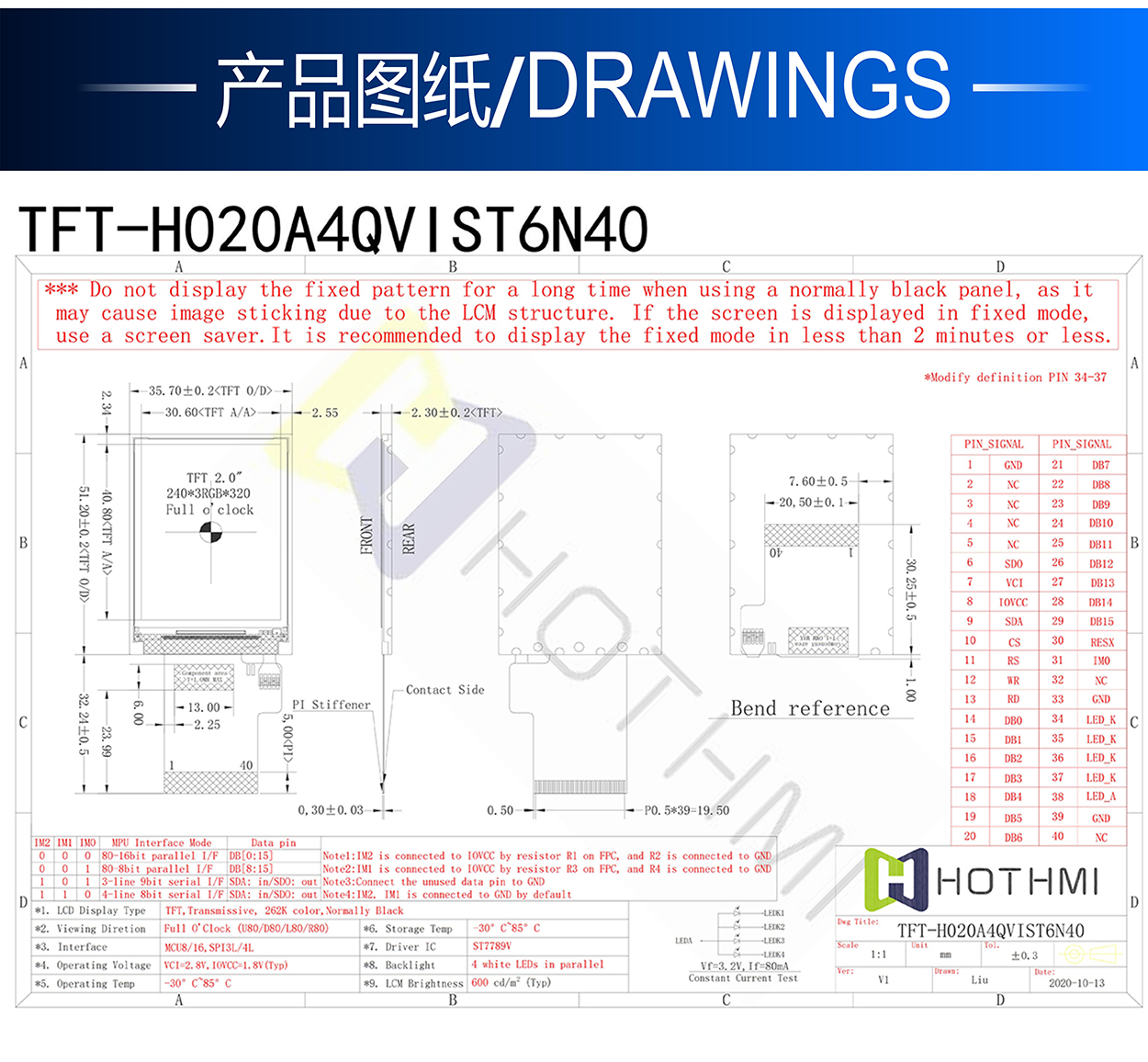

  • Model : 2.0 inch TFT color screen/240*320 resolution/SPI interface/full viewing angle/super bright 600cd/m2/TFT-H020A4QVIST6N40

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :35.70×51.20×2.30

    Size of View Window(mm):2.0

    Display size(mm) :2.0

    Effective size(mm):30.60x40.80

    Product application:Outdoor instrumentation, vehicle, industrial control

    Visual angle:Full view

    Backlight type or brightness:600cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7789V

Product description

Product Description TFT-H020A4QVIST6N40 is a 2.0-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 3:4. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), typical contrast ratio is 800:1, and module brightness is up to 600 nits (typical value). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.
