Product type：TFT LCD
Show contents：176x220

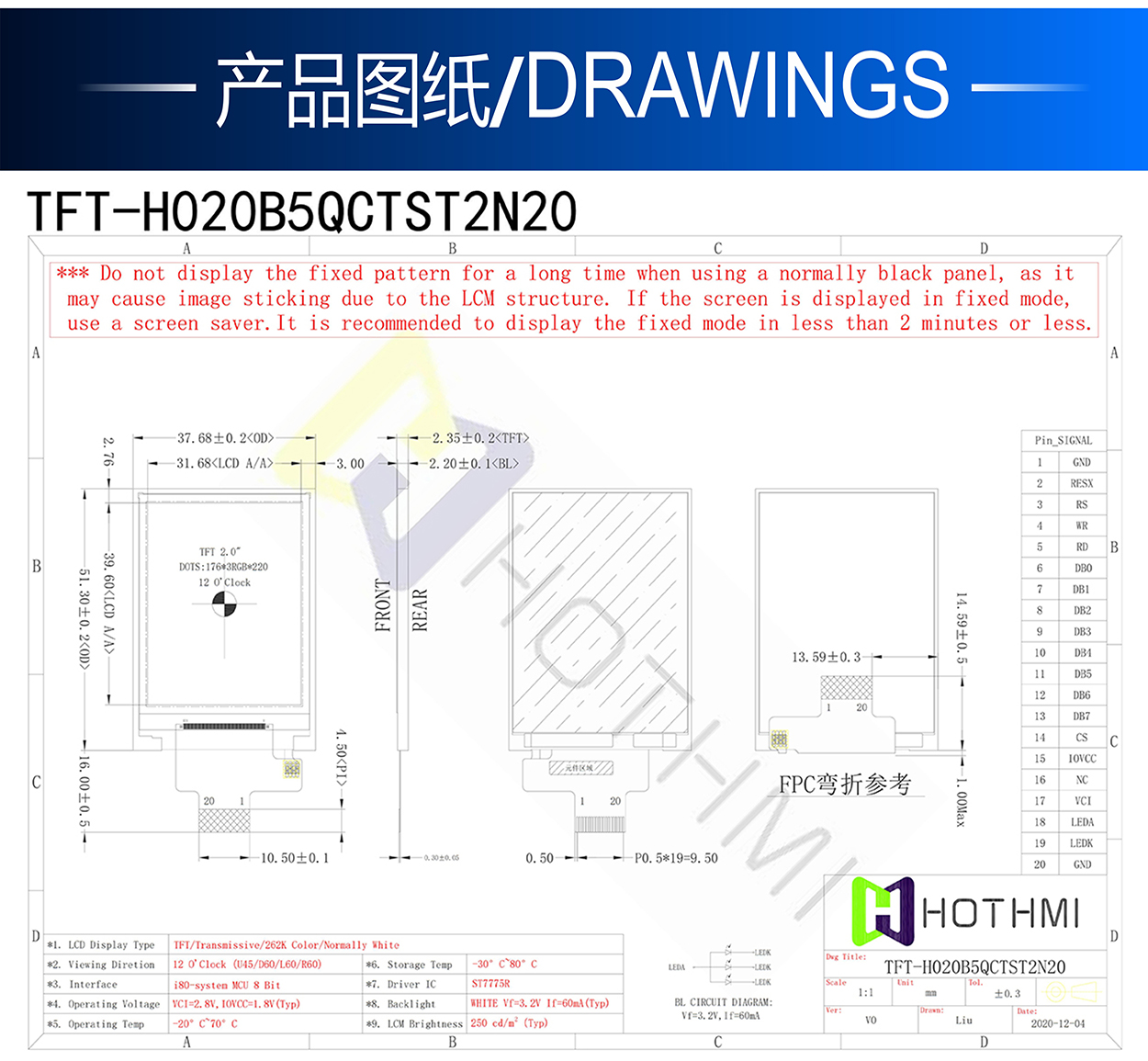

Outline size(mm) ：37.68x51.30x2.35
Size of View Window(mm)：2.0
Display size(mm) ：2.0
Product application：Instrumentation
Visual angle：12H
Backlight type or brightness：250cd/m2
Connection PIN Number：FPC-20PIN
Interface mode：MCU
Special instructions：MCU 8 Bit
Working temperature：-20~70℃
Power supply voltage：3.2V
Driver chip model：ST7775R
2.0inch TFT LCD (TFT-H020B5QCTST2N20) is a 2.0 TFT color LCD module with 176*220 resolution, which is carefully designed by HOTDISPLAY,65K / 262K true color, builtin st7775R controller, support MCU 8Bit interface. 20pinfpc connection (optional connector), 3.2Vvoltage。 All materials meet the ROHS standard of environmental protection requirements. This module can be equipped with touch screen, which is widely used in various instruments, intelligent equipment, analytical instruments, hand-held instruments, driving recorder, etc. it is suitable for a variety of single-chip development platforms, such as 8051, PIC, AVR, Arduino, arm and Raspberry PI.
