Location:Home  >  Product center  >  TFT display  >  Wide View TFT Display Screen  >  3.5寸TFT豎屏/480*800分辨率/全視角/TFT-H035A7WVIST3N40

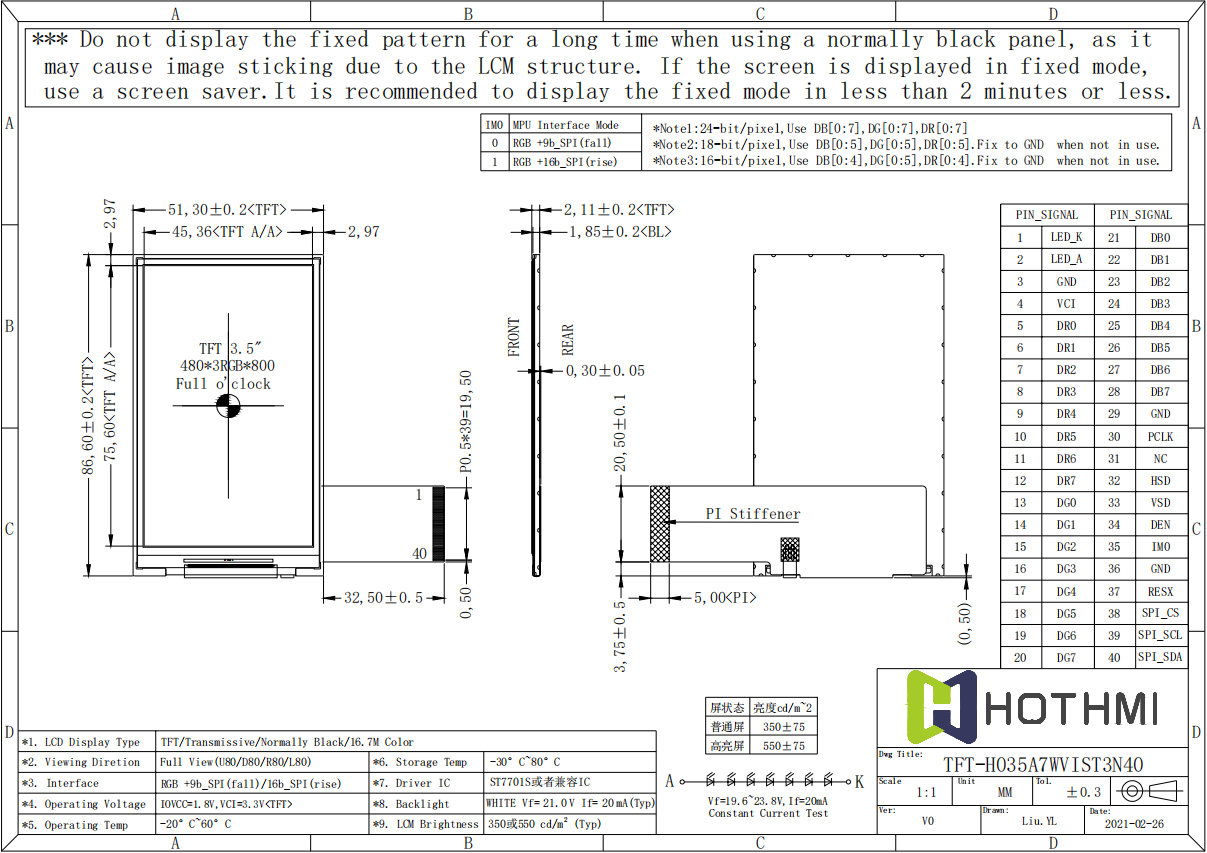

  • Model : 3.5 inch TFT /480*800 resoliution/Full view/TFT-H035A7WVIST3N40

    Product type:TFT vertical screen

    Show contents:480x800

    Outline size(mm) :51.30x86.60x2.11

    Size of View Window(mm):3.5

    Display size(mm) :3.5

    Effective size(mm):45.36x75.60

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:500cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:SPI

    Special instructions:RGB +9b_SPI(fall)/16b_SPI(rise)

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:ST7701S

Product description
