Product type：TFT LCD
Show contents：480x800
Outline size(mm) ：67.00x116.24x3.85
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：56.16x93.60
Product application：Instruments and apparatus
Visual angle：Full View
Backlight type or brightness：300cd/m2
Connection PIN Number：FPC-30PIN
Interface mode：MIPI
Special instructions：CTP
Working temperature：-20~60℃
Power supply voltage：3.3V
Driver chip model：ST7701S<TFT>,GT911<CTP>

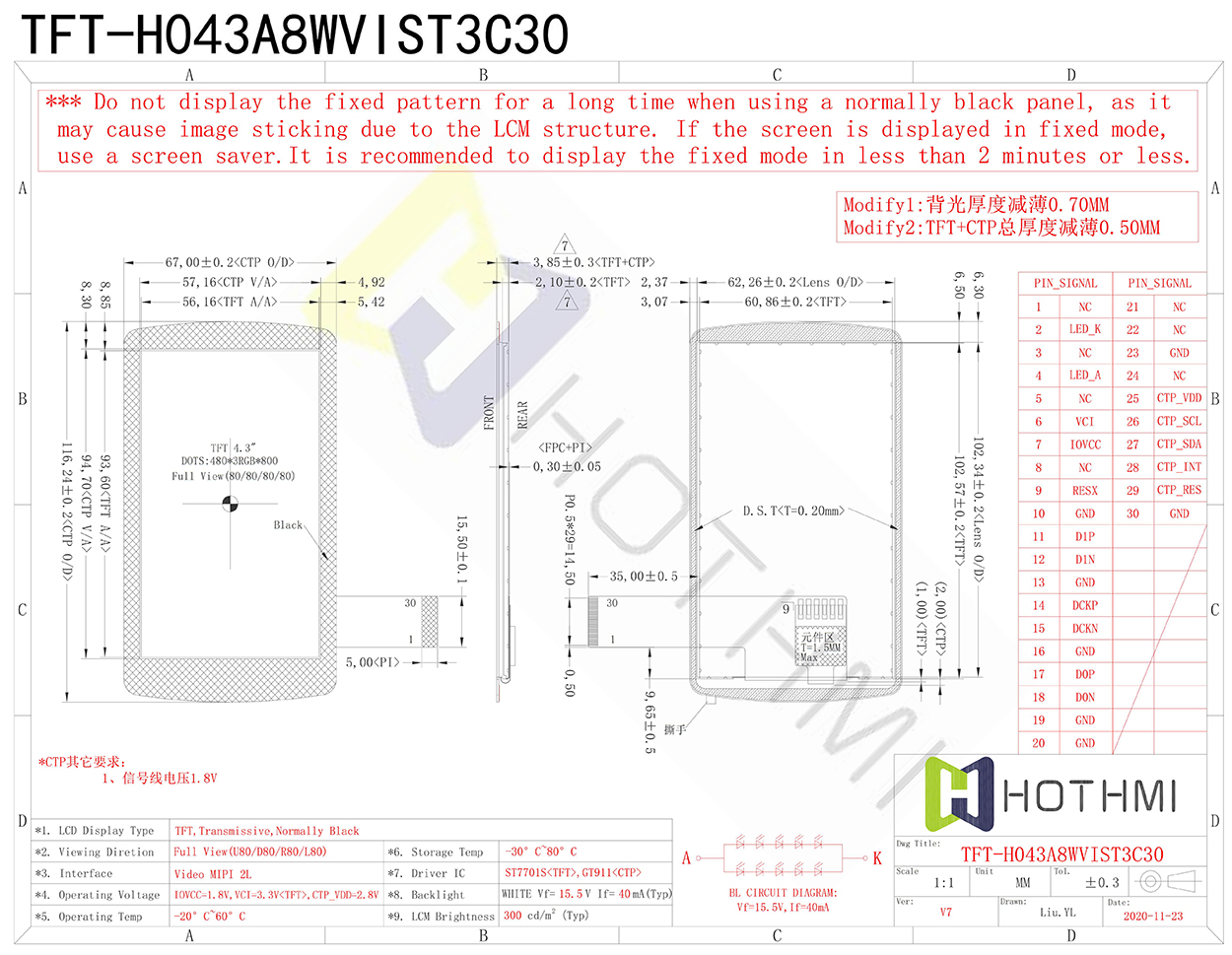

Product Description TFT-H043A8WVIST3C30 is a 4.3-inch full-color TFT LCD module with a resolution of 480x800 pixels and an aspect ratio of 2:5. The TFT module adopts ST7701S driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 300 nits (typical value). The operating temperature range of the module is -20℃~+60℃, and the storage temperature range is -30℃~+80℃.
