Location:Home  >  Product center  >  TFT display  >  Wide View TFT Display Screen  >  2.8寸MIPI接口TFT彩屏| QVGA 240*320分辨率|TFT-H028A4QVTST3C20

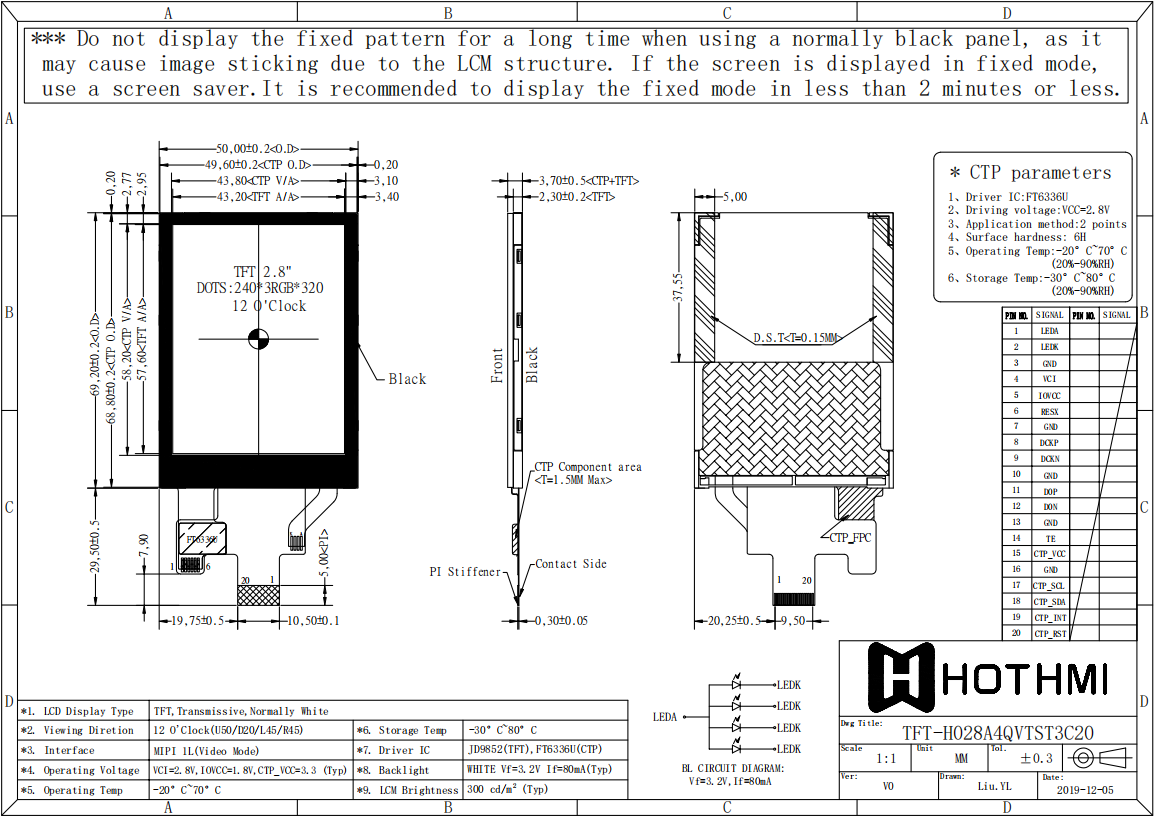

  • Model : 2.8 inch TFT | QVGA 240*320 | MIPI interface| TFT-H028A4QVTST3C20

    Product type:TFT LCD

    Show contents:240x320

    Outline size(mm) :50.00x69.20x3.7

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.20x57.60

    Product application:Portable equipment, industrial equipment

    Visual angle:12 O'Clock

    Backlight type or brightness:300cd/m2

    Connection PIN Number:20pin

    Interface mode:MIPI

    Special instructions: Contains CTP

    Working temperature:-20~70

    Power supply voltage:2.8V

    Driver chip model:JD9852

    PDF download
