Product type：TFT LCD

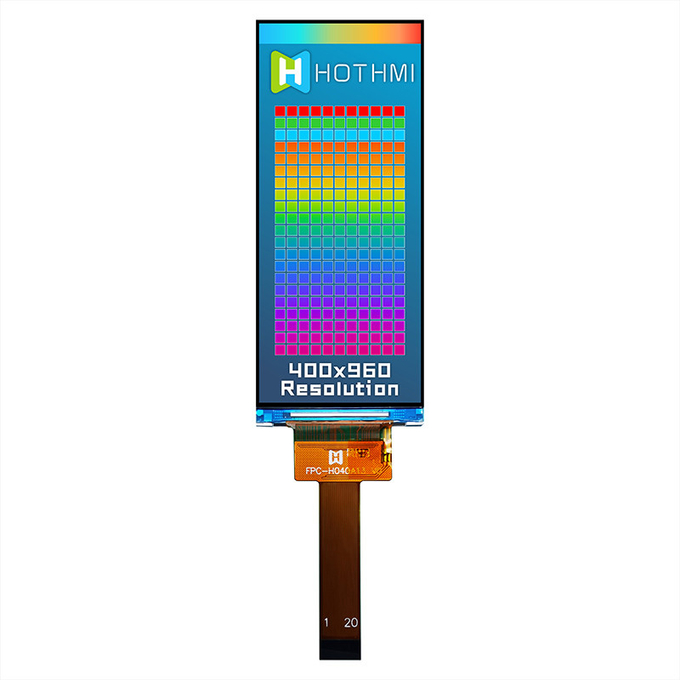

Show contents：400x960
Outline size(mm) ：101.58×41.40×2.04
Size of View Window(mm)：4.0

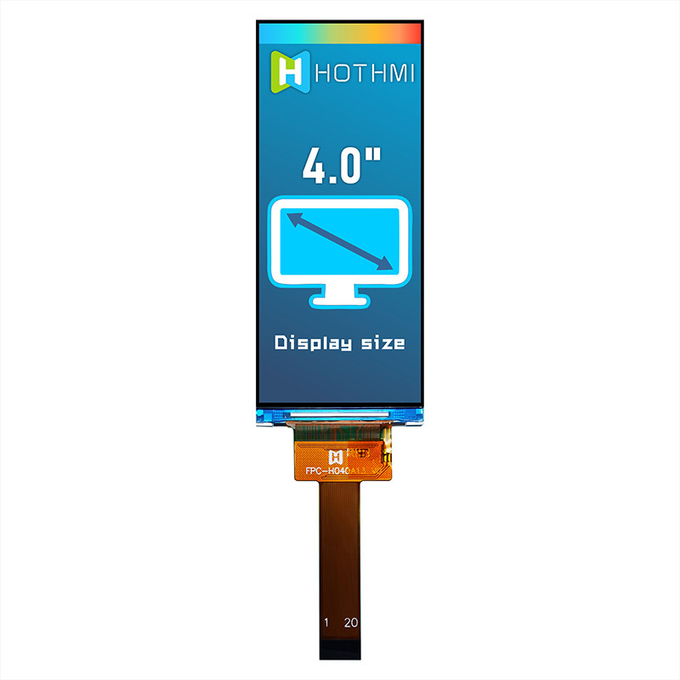

Display size(mm) ：4.0
Effective size(mm)：94.03x39.18
Product application：Instrumentation

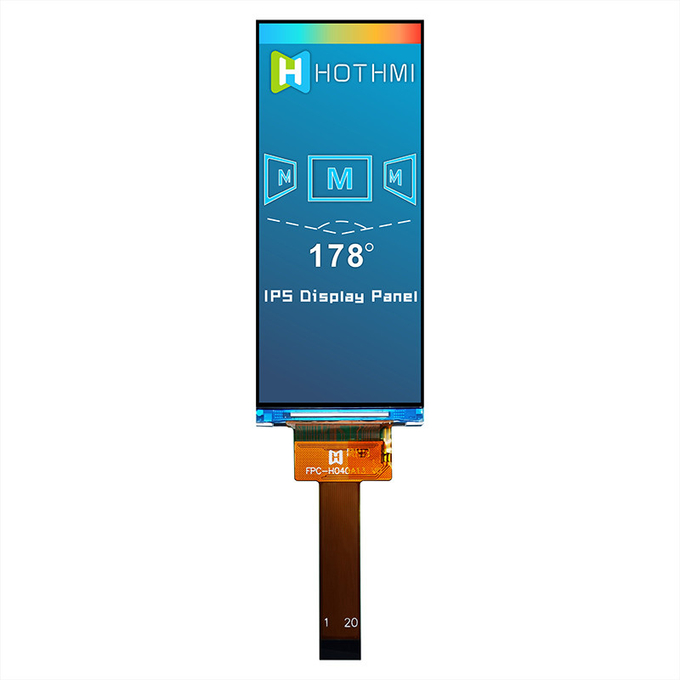

Visual angle：Full view

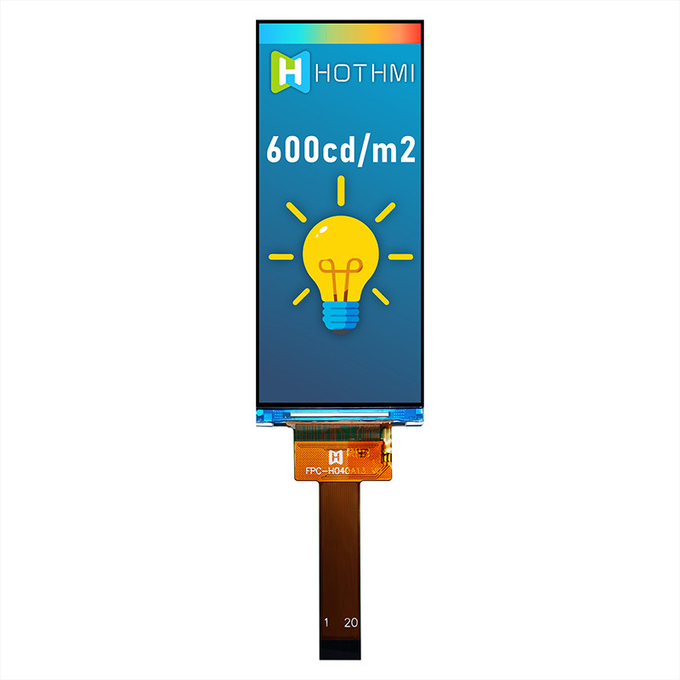

Backlight type or brightness：600cd/m2
Connection PIN Number：20pin

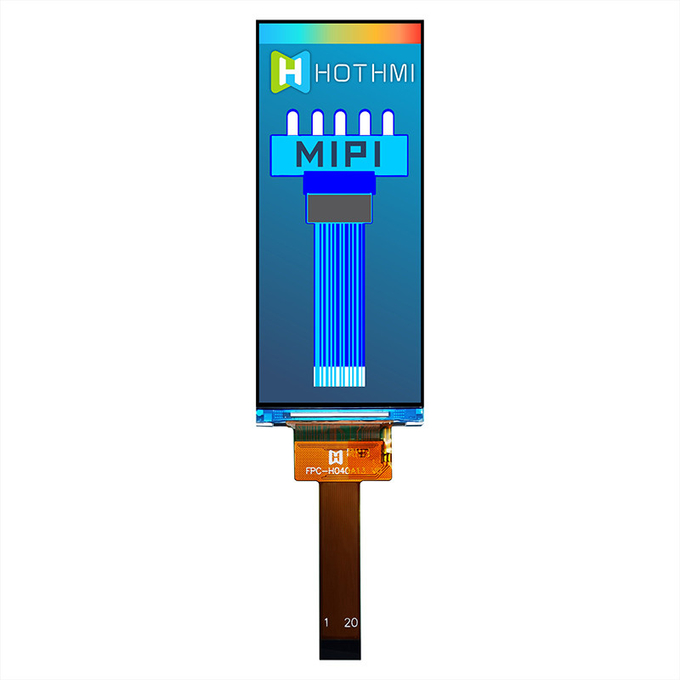

Interface mode：MIPI

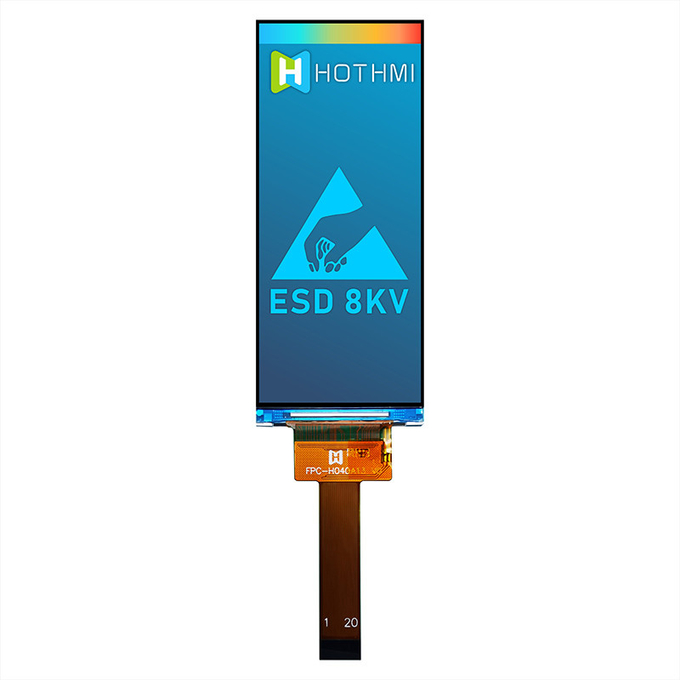

Special instructions：Anti-static ESD 8KV

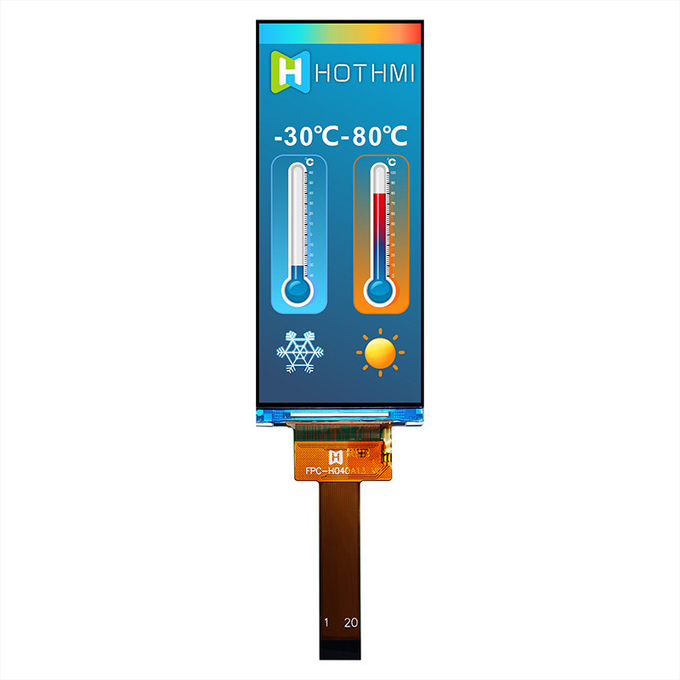

Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7701S
4 Inch TFT LCD Module sunlight readable 400X960 TFT LCD Display Manufacturer For Fingerprint Lock
TFT-H040A13ZDIST6N20 | 4.0" IPS LCD Display | TFT LCD Display Manufacturer | 400x960 resolution | -20℃~70℃ | For Fingerprint Lock | sunlight readable
Introducing the TFT-H040A13ZDIST6N20, a 4-inch IPS LCD display specifically designed for use in fingerprint locks. With a resolution of 400x960, this TFT LCD module delivers stunningly clear visuals and sharp images, making it ideal for applications where image quality is crucial.
The TFT-H040A13ZDIST6N20 boasts excellent sunlight readability, ensuring that users can easily view the screen even in bright outdoor environments. Its wide temperature range of -20℃ to 70℃ allows it to perform reliably in various weather conditions.
As a reputable TFT LCD display manufacturer, we have ensured that this module is of the highest quality, incorporating advanced technology to guarantee durability and longevity. Whether for indoor or outdoor use, the TFT-H040A13ZDIST6N20 delivers exceptional performance and reliability, making it an ideal choice for your next project.
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||
Number of Pixels | 400(H)*3(RGB)* 960(V) | dots | ||
Active Area | 94.03x39.18mm | mm | ||
Outline Dimension | 101.58×41.40×2.04 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | MIPI 4L | - | ||
Driver IC | ST7701S | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -30 ～ +80 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

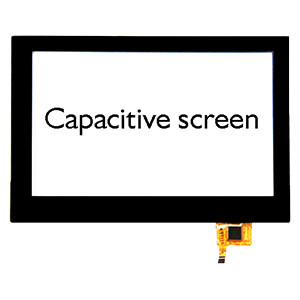

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

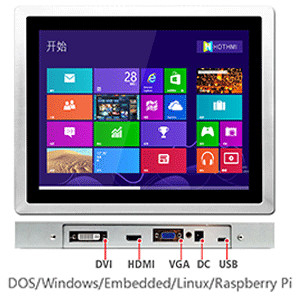

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
