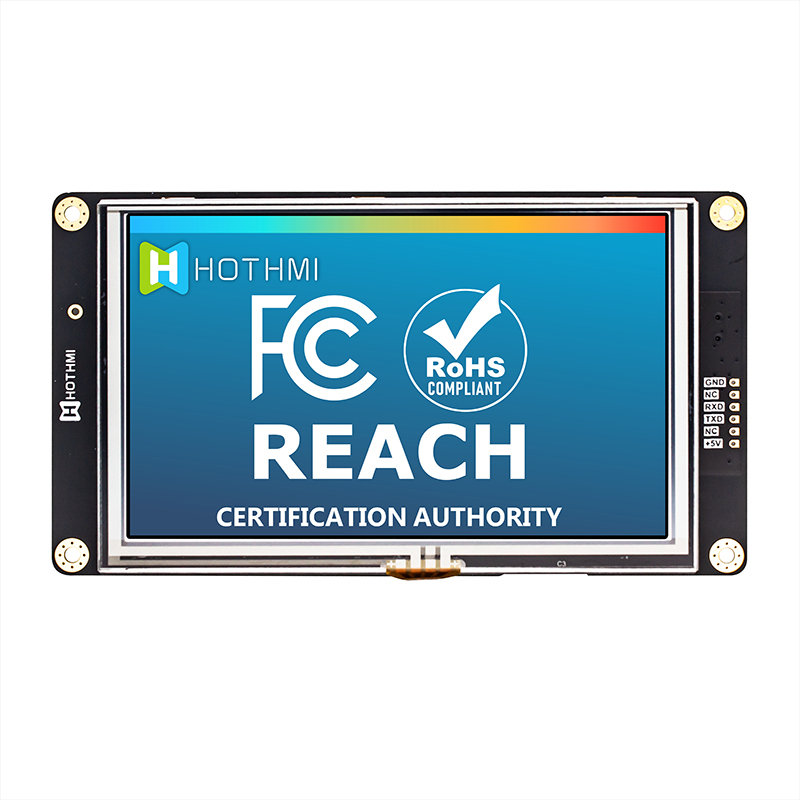

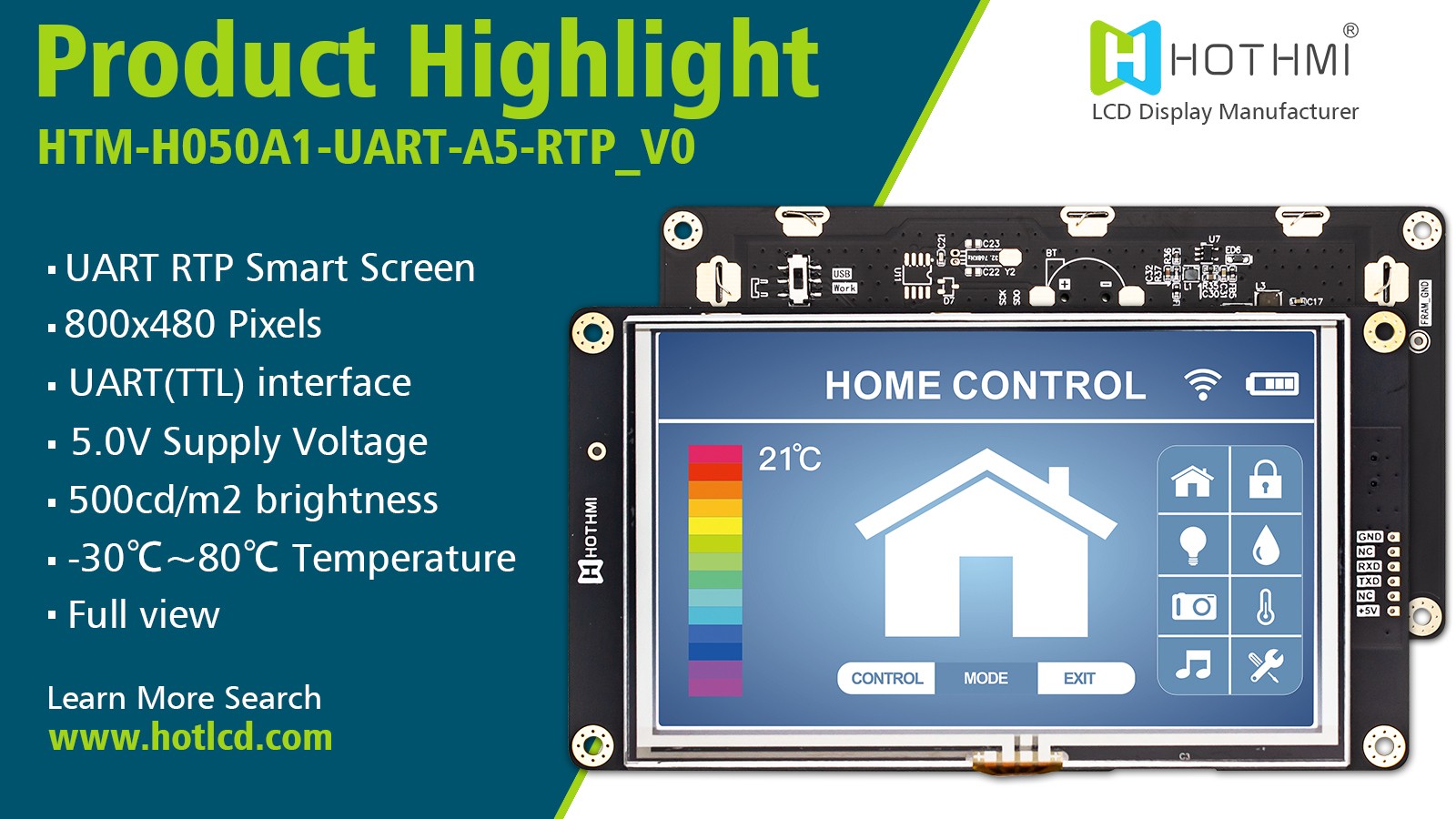

5 inch smart serial screen 800x480 UART TFT LCD module display panel with resistive touch HTM-H050A1-UART-A5-RTP

Product name: HTM-H050A1-UART series intelligent serial screen

Product Description:

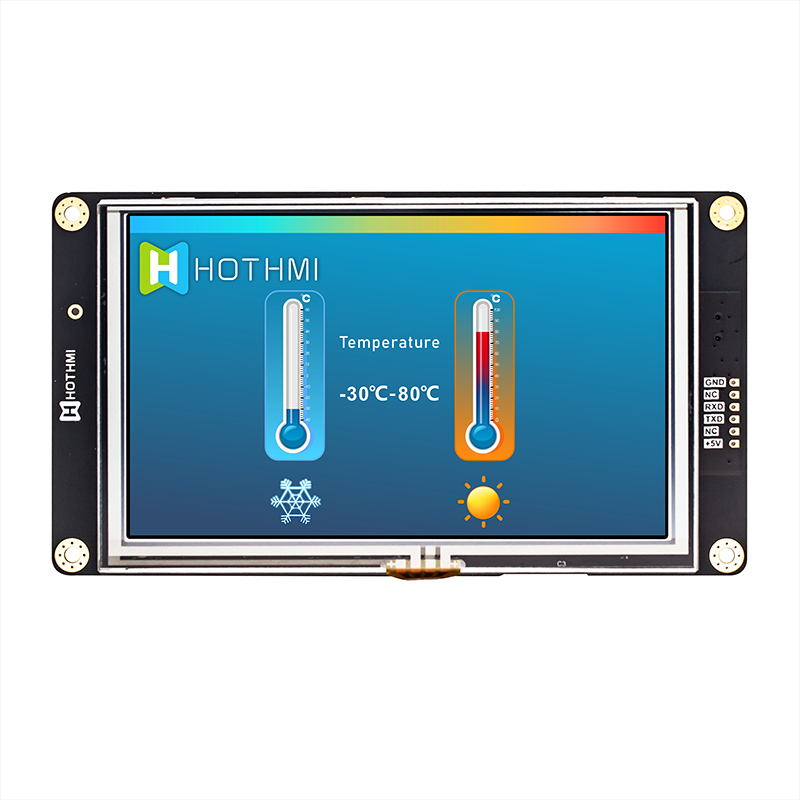

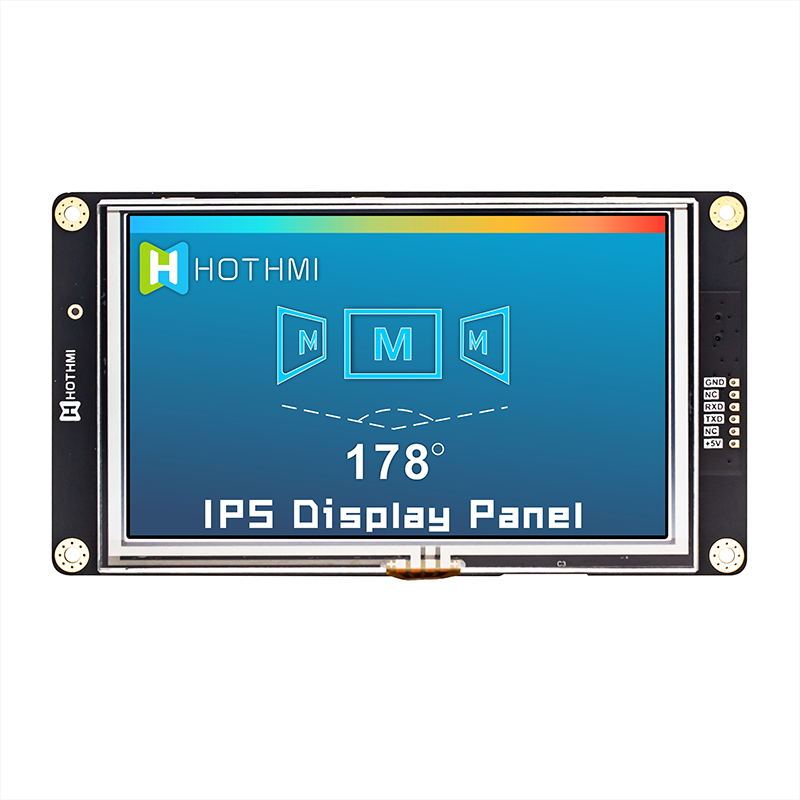

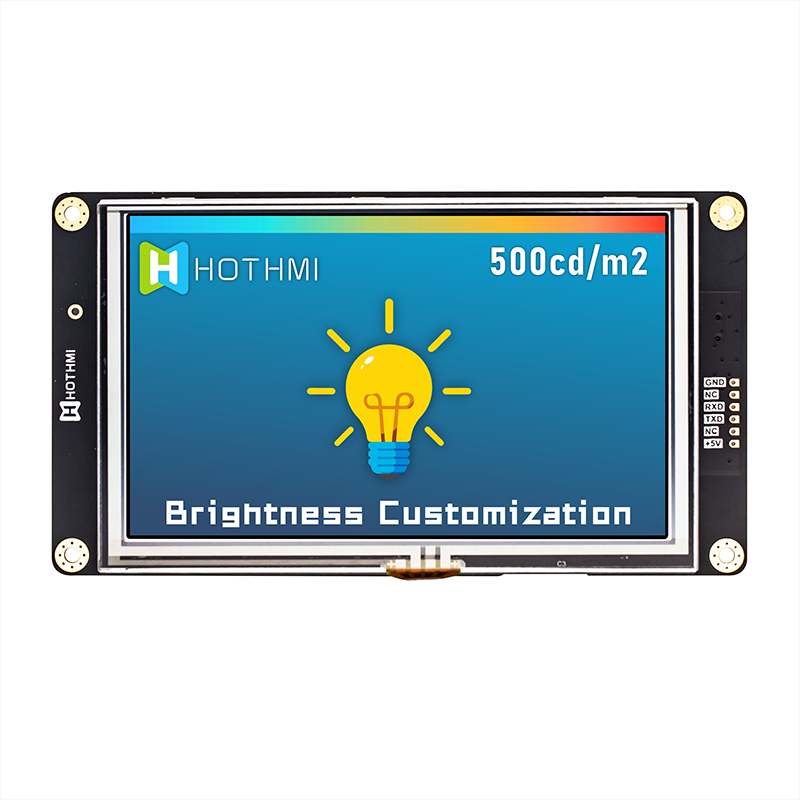

Color TFT display size: 5 inches (diagonal)

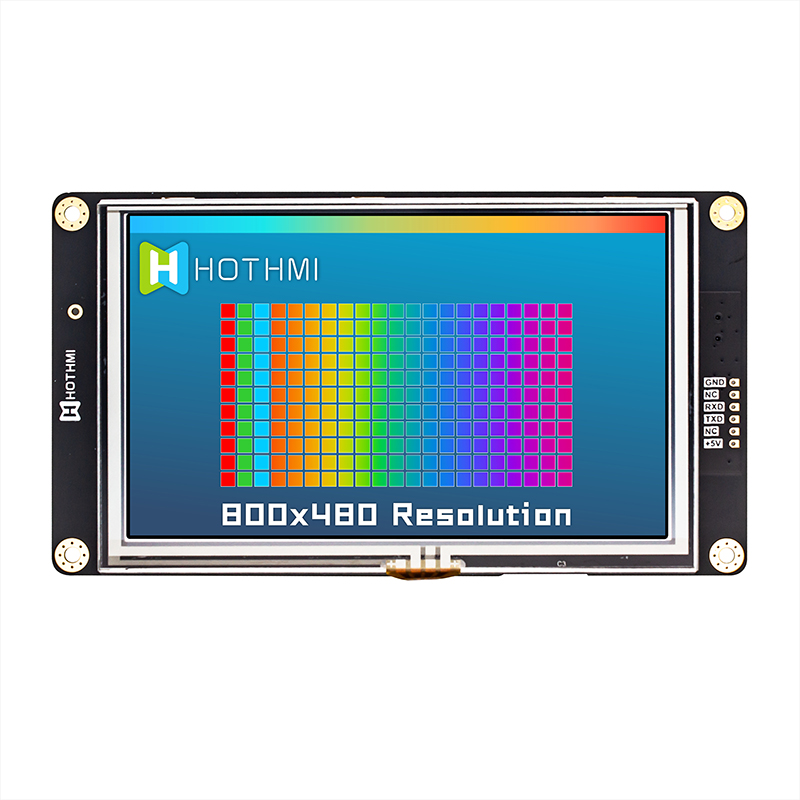

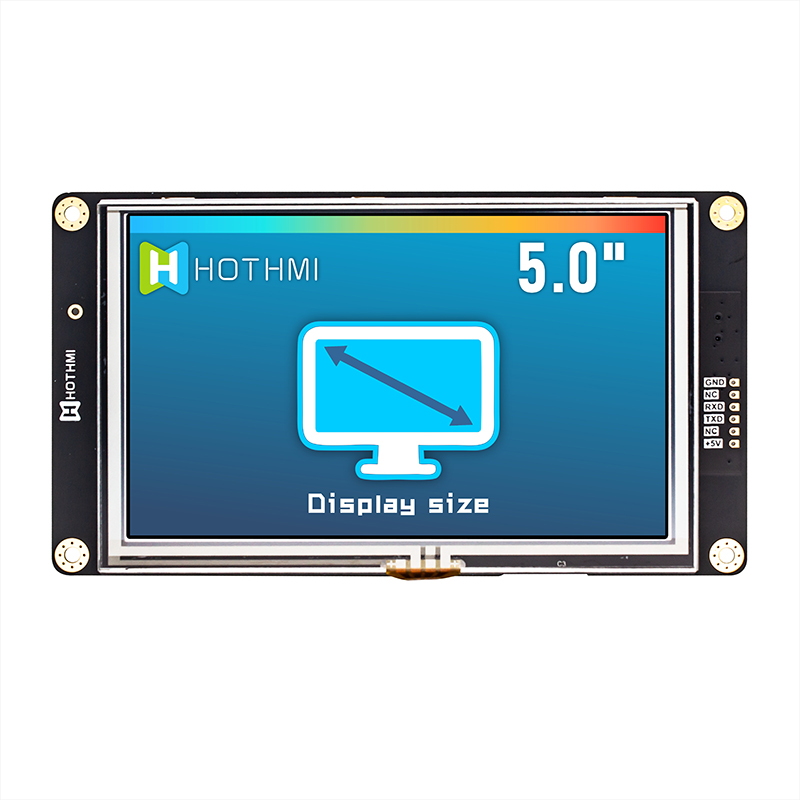

Resolution: 800x480 dot matrix, 16-bit color depth, HD screen

Internal resource memory size: 128M bytes

Power supply requirements: 5V~24V DC power supply

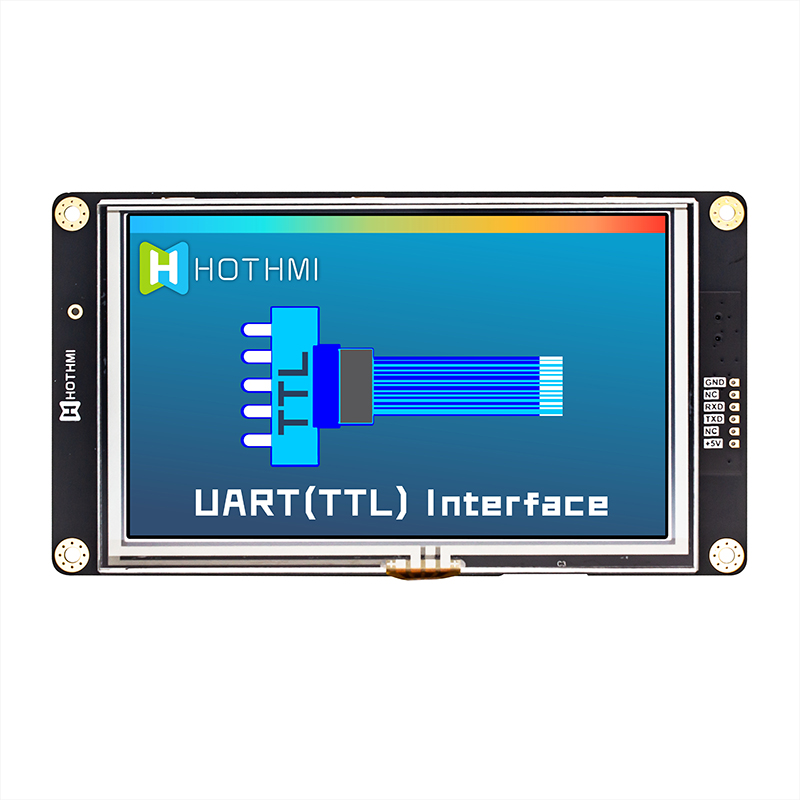

External interface: serial UART (TTL level) interface

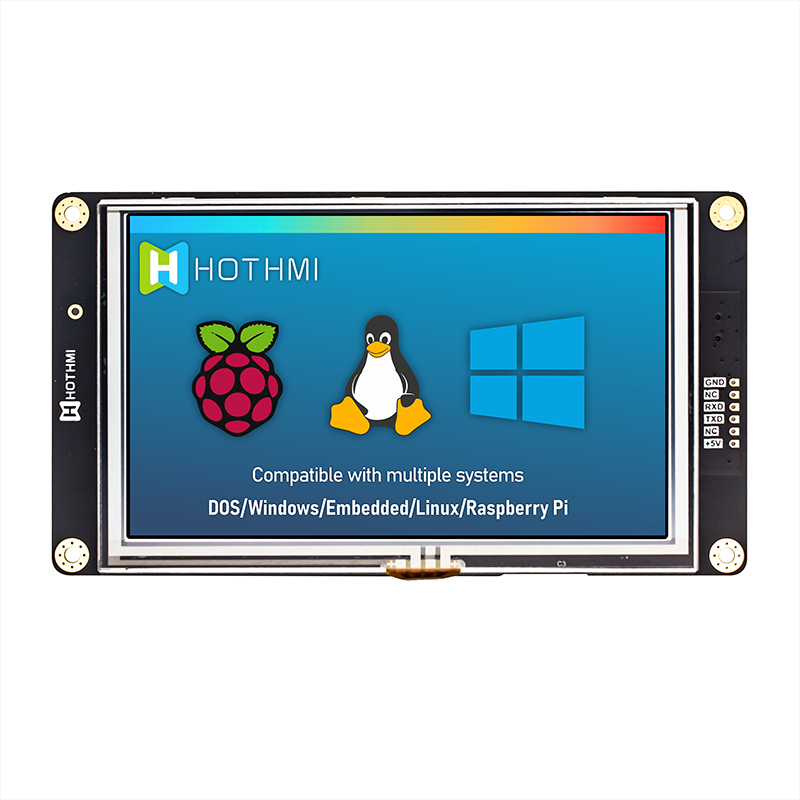

Communication protocol: ASCII string format, suitable for Arduino system and other MCU interface operations

Standard configuration:

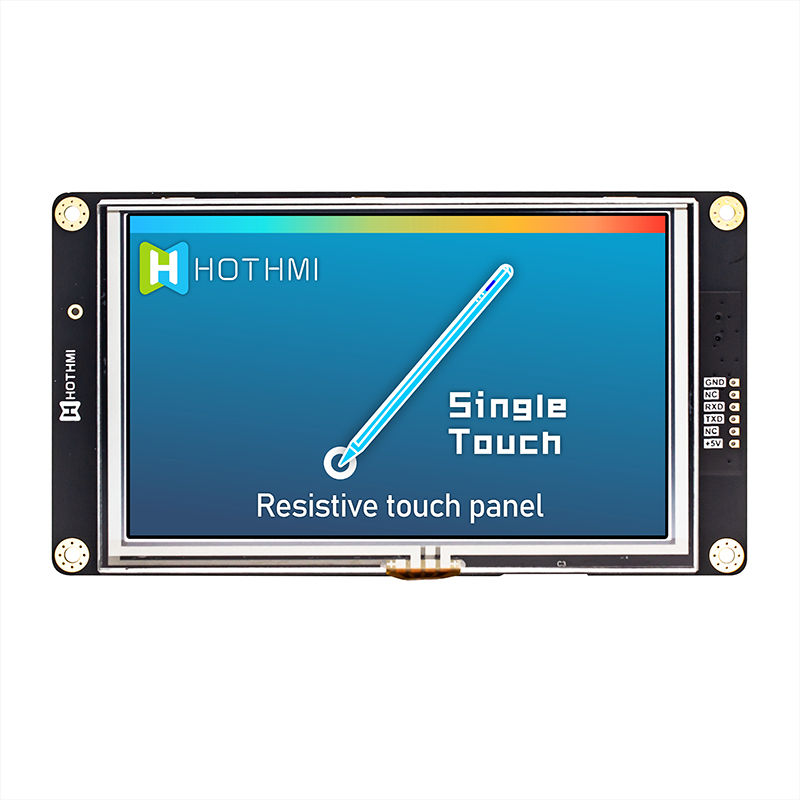

5-inch diagonal color TFT screen, standard non-touch/resistive touch/capacitive touch

Resolution: 800x480 dot matrix, 65536 colors

Power supply mode: 5V~24V DC power supply

Serial interface: ART serial interface (TTL level), support 9600~1000000bps

Built-in resource memory: 128M bytes

Standard RTC real-time clock module

Built-in 6x10, 8x16, 10x20, 16x32 point ASCII code Western character library

Features:

Support basic drawing instructions, including drawing points, straight lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG image display, PNG image display, etc.

Support audio and video playback commands

The resource memory supports GBK2312 secondary Chinese character library, vector font library, BIG5 font library, BMP bitmap, JPEG picture, PNG picture display, ASCII western character library, etc.

Support interface switching effect settings, such as transparency fade-in, random fast fade-in, blinds fade-in, buffer fast switching

Support area button control, can configure various attributes, control message response can be configured

Support bitmap (BMP/JPG/PNG) button controls, which can be configured with various attributes, and the control message response can be configured

Supports numerical controls, can input integers and floating-point numbers, and configures multiple attributes

Support string control, support Chinese and English string input, multiple attribute configurations

Support drop-down selection control, control message response can be configured

Support waveform control, allowing to display up to four waveform lines in the same ID number control

Support progress bar control, control message response can be configured

Support bitmap animation control, control message response can be configured

Support time display and date display controls

Support dial display controls

Support slider control, control message response can be configured

Support QR code

The latest EzUI series intelligent LCD display module launched by HOTHMI has the following characteristics:

E (easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop a full-color graphical touch screen human-machine interface, allowing users to easily design and develop color LCD modules.

The biggest feature of the EzUI series intelligent LCD module is its easy-to-use and rich-featured features. Users can choose simple or complex usage methods to achieve the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, control configuration and response settings of the man-machine interface, and then copy the resource files generated by the tool software to the EzUIH series modules to complete the required man-machine interface. The interactive interface is designed and produced without programming and controlling the microcontroller or other controllers. In order to meet users with special requirements, EzUIH series modules still retain most of the display control commands, enabling users to control the module display more freely. EzUIH is a function and performance enhanced version of EzUI series. Although the hardware platform is different, it is fully compatible with the functions of EzUI series.

Currently, the EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches, and 10.1 inches. These modules are commonly used in industrial control equipment and medical equipment.

The characteristics and application scope of EzUI series intelligent LCD module are as follows:

Ease of use: EzUI series modules adopt a simple and easy-to-use design concept, enabling users to get started easily and quickly carry out interface design and development. Through the interface development tool software (EzUITool), users can perform operations such as the design, editing, control configuration, and response setting of the human-machine interface.

Zero code: EzUI series modules realize the goal of code-free user interface design. The user does not need to program and control the microcontroller or other controllers, but only needs to copy the resource files generated by the tool software to the corresponding EzUIH series modules to complete the design and production of the human-computer interaction interface.

Rich functions: EzUI series modules provide rich functions and performance. Users can choose simple or complex usage methods according to their needs, and freely control the display function of the module. EzUIH series modules also retain most of the display control instructions to meet users with special requirements.

Multiple size options: EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches and 10.1 inches. These modules of different sizes are suitable for different application scenarios, such as industrial control equipment and medical equipment.

In a word, Xinhongtai HOTHMI's EzUI series intelligent LCD module has the characteristics of easy to use, zero code, and rich functions, which can help users quickly develop full-color graphic touch screen human-machine interface, and is widely used in industrial control equipment and medical equipment and other fields .
