Location:Home  >  Product center  >  TFT display  >  Wide View TFT Display Screen  >  2寸 170x320像素 IPS TFT液晶彩色液晶顯示屏 SPI 寬溫 TFT-H020A05QVIST7N10
  • Model : 2.0 inch 170x320 pixel IPS TFT LCD color LCD display SPI wide temperature TFT-H020A05QVIST7N10

    Product type:TFT LCD

    Show contents:170x320

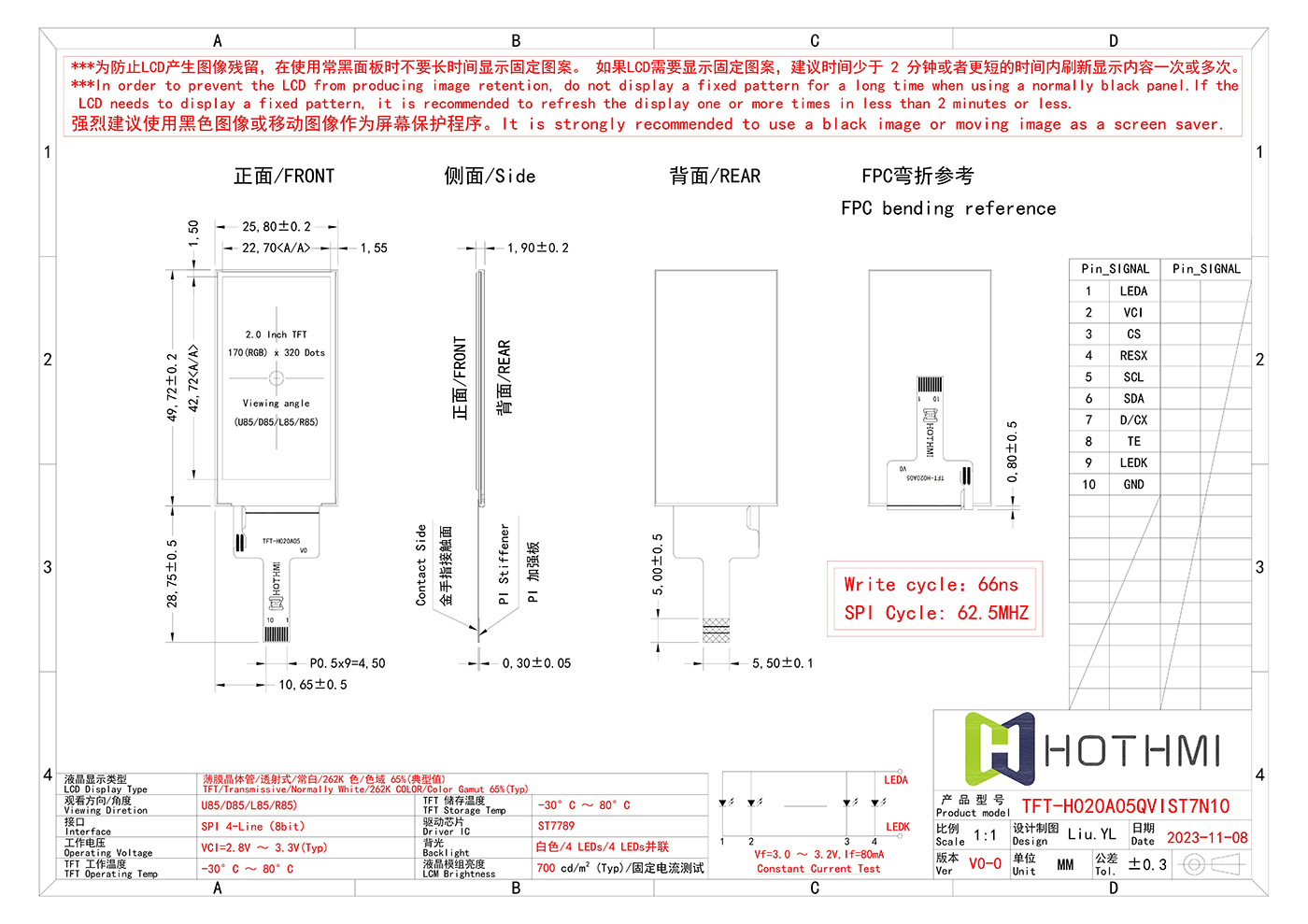

    Outline size(mm) :25.8x49.72

    Size of View Window(mm):2.0

    Display size(mm) :2.0

    Effective size(mm):22.7x42.72

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:700cd/m2

    Connection PIN Number:10pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7789

Product description

TFT-H020A05QVIST7N10 | 2.0" LCD module | 170x320 pixels | Serial SPI interface | 10-pin FFC ZIF connection | Optional resistive/capacitive touch screen

This 2.0-inch TFT display is suitable for a variety of projects from embedded systems to industrial equipment and handheld devices. It offers a crisp 170x320 pixel resolution and a bright LED backlight brightness of 750 cd/m2, and the display is visible in sunlight, ensuring high-quality color image display.

In terms of connection, it uses a 4-wire serial SPI interface and is connected through pin headers to improve communication efficiency with Arduino and other devices. The interface is not only flexible, but also supports fast data transfer, providing the possibility for real-time updates, smooth animations and dynamic visual effects.

In addition, the monitor is RoHS compliant and adheres to strict environmental and safety standards, reflecting the emphasis on environmental protection and user safety. Overall, this monitor combines performance, flexibility, and reliability for a variety of modern electronic devices and projects.
