Product type：TN TFT
Show contents：240x320

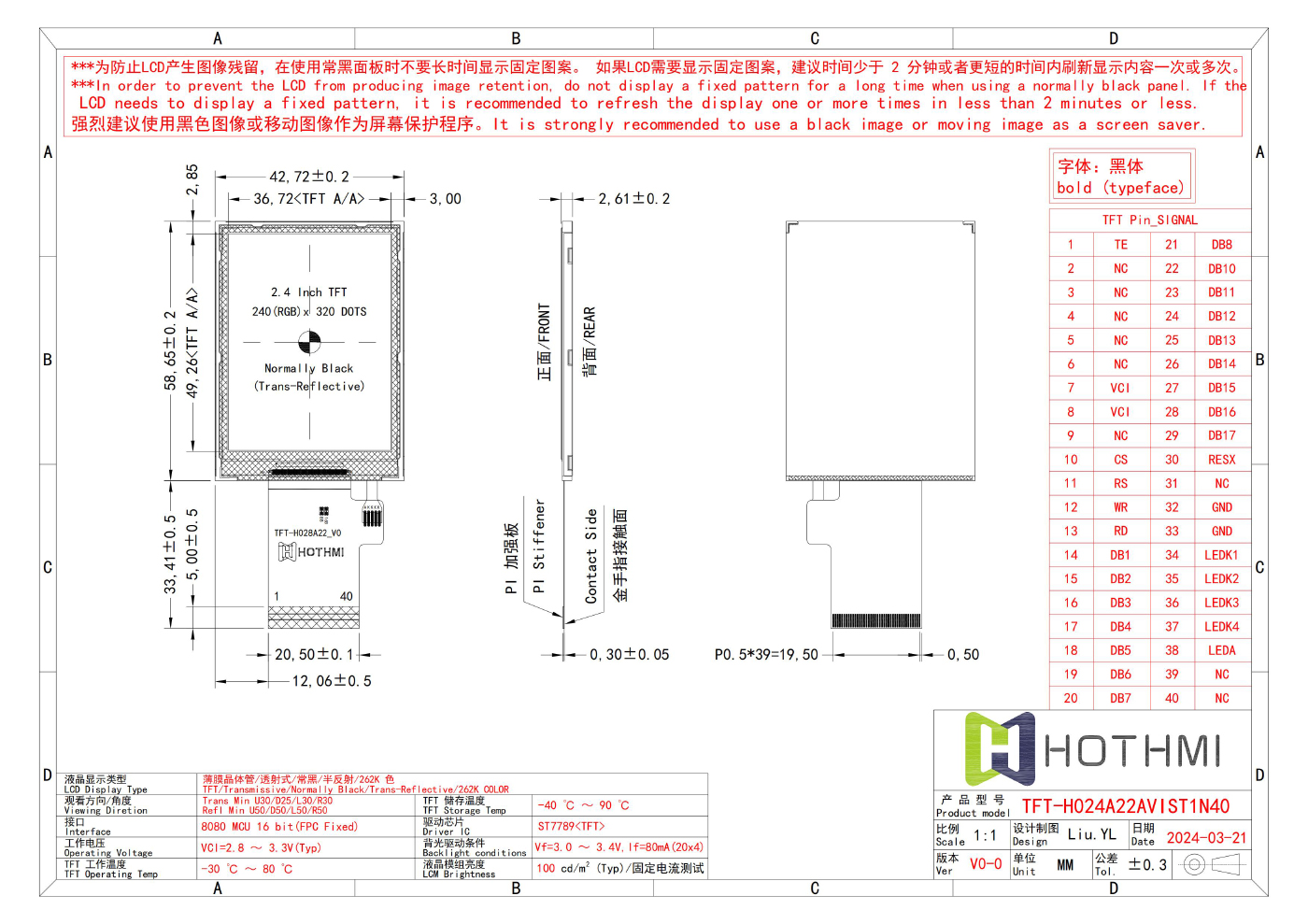

Outline size(mm) ：42.72x58.65x2.61
Size of View Window(mm)：2.4
Display size(mm) ：2.4
Effective size(mm)：36.72x49.26
Product application：C8051/Arduino/STM32 series
Visual angle：12H
Backlight type or brightness：100cd/m2
Connection PIN Number：FPC-40PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7789
TFT-H024A22AVIST1N40 is a 2.4-inch transflective TN display panel with a resolution of 240x320 pixels. It uses ST7789 display driver IC and plug-in FPC, which can be used with connectors. The TN technology used in this monitor offers wide viewing angles and excellent color reproduction, allowing you to easily view from all angles without distortion. The display features a high contrast ratio of 500:1, delivering deep blacks and vibrant colors. Can be read in sunlight. Comply with ROHS standards
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
