Product type：TFT
Show contents：1024X600
Outline size(mm) ：164.9X100.0X3.5
Size of View Window(mm)：7.0
Display size(mm) ：7.0
Effective size(mm)：154.21x85.92
Product application：Industrial control systems, portable electronic devices
Visual angle：IPS
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-40 pin
Interface mode：LVDS
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：T.B.D

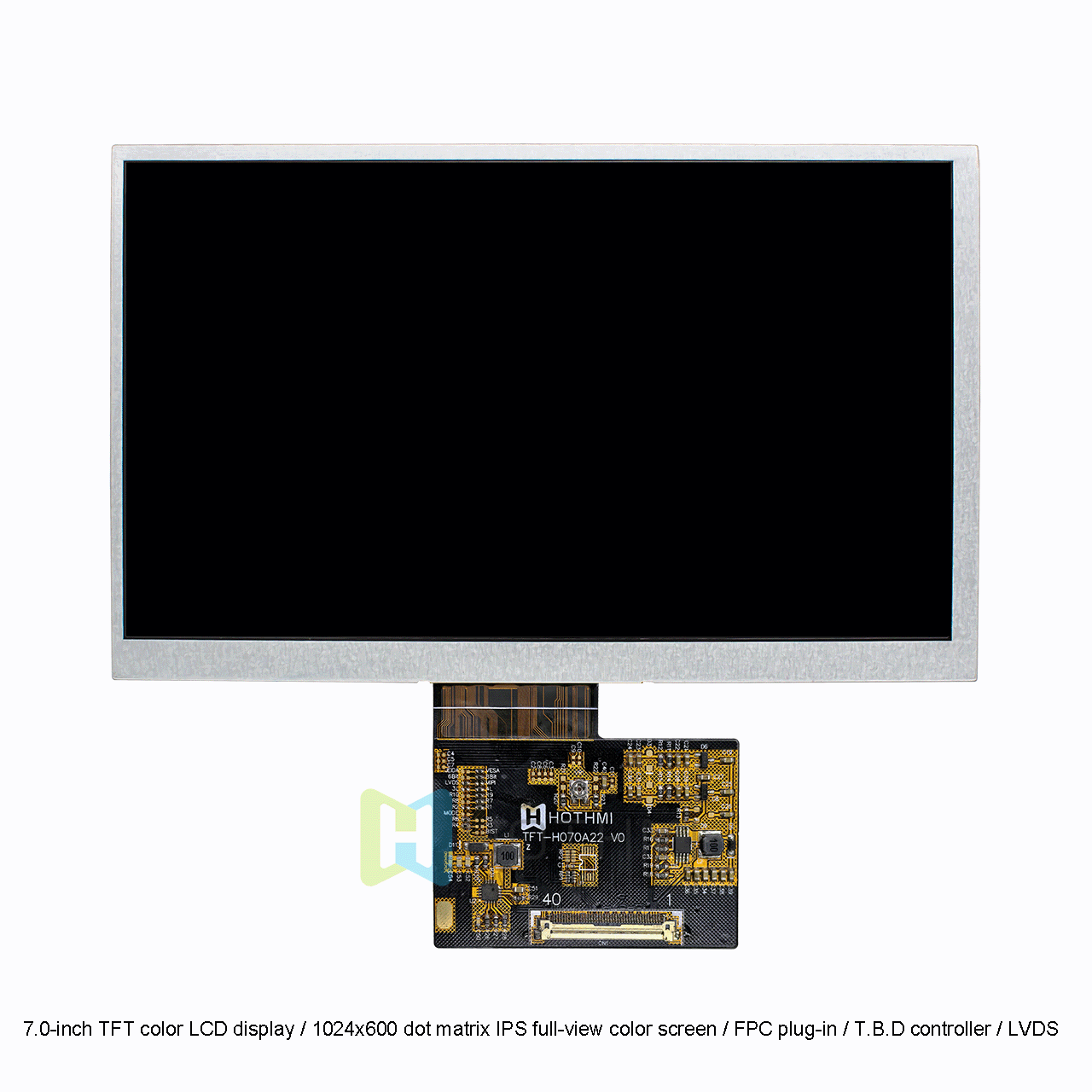

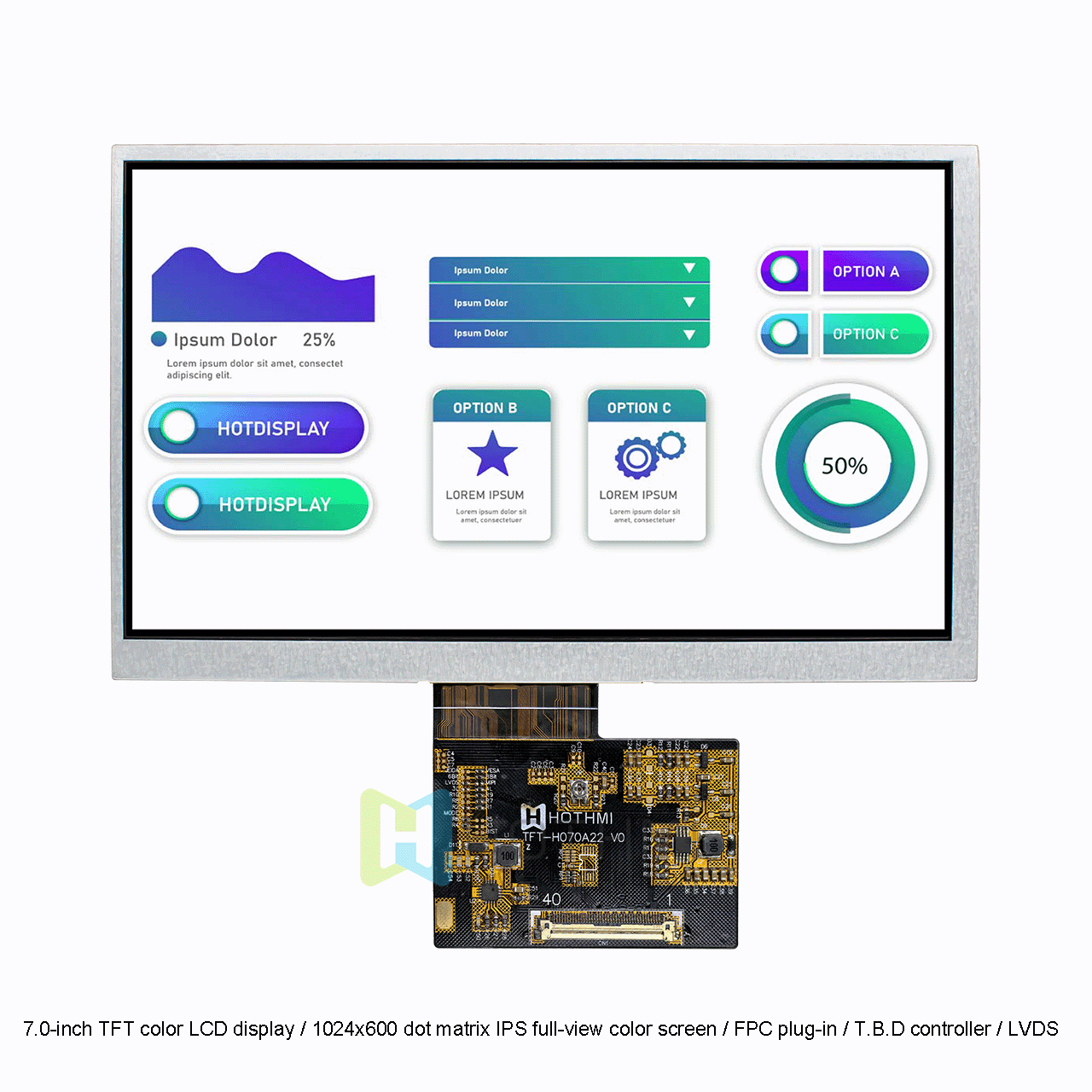

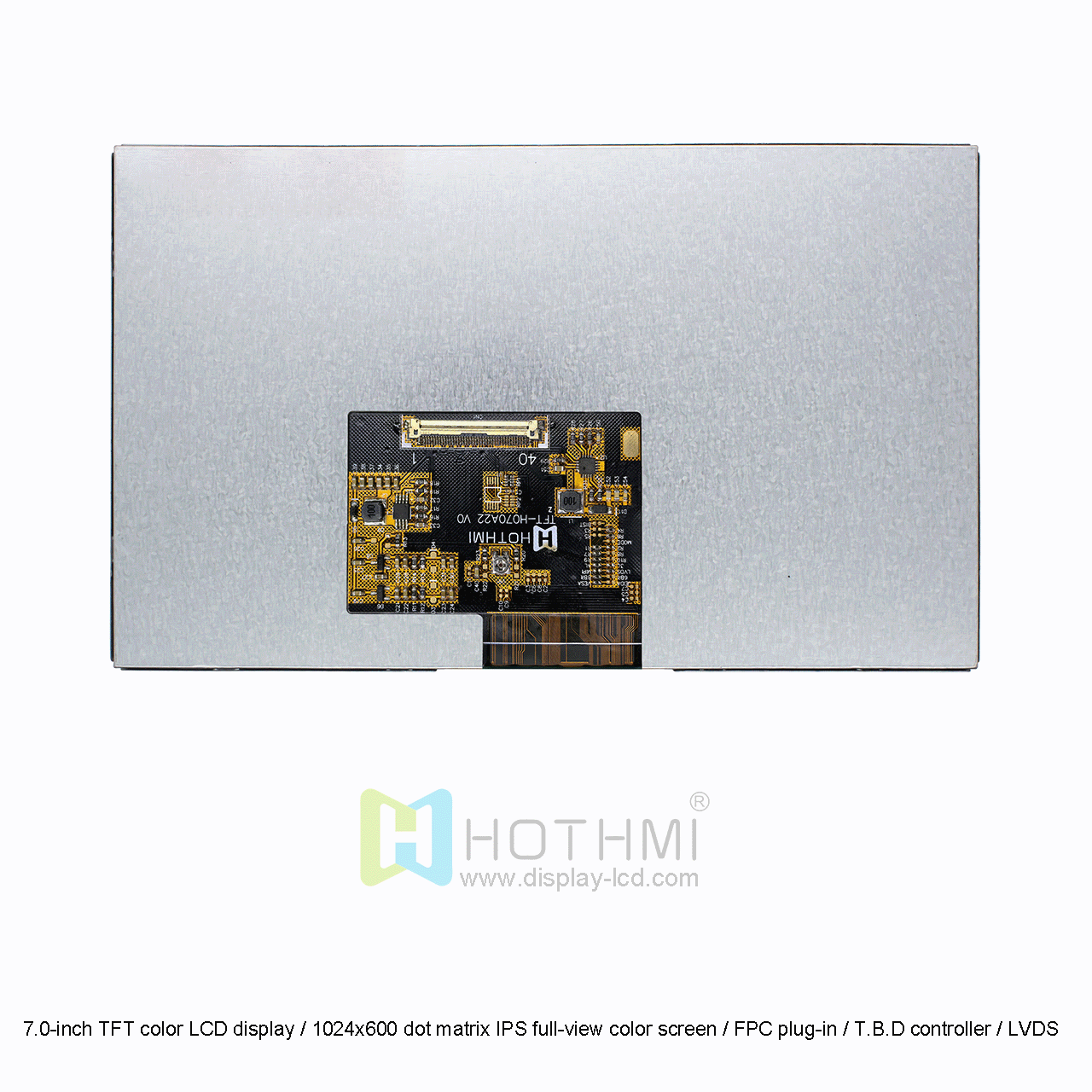

7.0-inch TFT color LCD display / 1024x600 dot matrix IPS full-view color screen / FPC plug-in / T.B.D controller / LVDS interface high-brightness display screen with a resolution of 1024x600 pixels. TFT-H070A22WSIJD8N40 This display is IPS full-view, no matter which direction you look at it, you can clearly see the displayed content. This model uses FPC connection, and FPC requires a connector. Just connect with our optional solder FPC connector, which is easy to insert or remove. This display also has a brightness of up to 800cd/m2. It can also be viewed in the sun.
For users using 8051 microcontrollers, we have also prepared a detailed tutorial that includes interface information, demonstration code, and development kits. You can contact us to request and learn. Our displays are RoHS compliant and adhere to strict environmental and safety standards.
