Product type：TFT
Show contents：320x480
Outline size(mm) ：55.66x85.04x2.4
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：48.96x73.44
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Backlight type or brightness：350cd/m2
Connection PIN Number：FPC-45 pin
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7796S

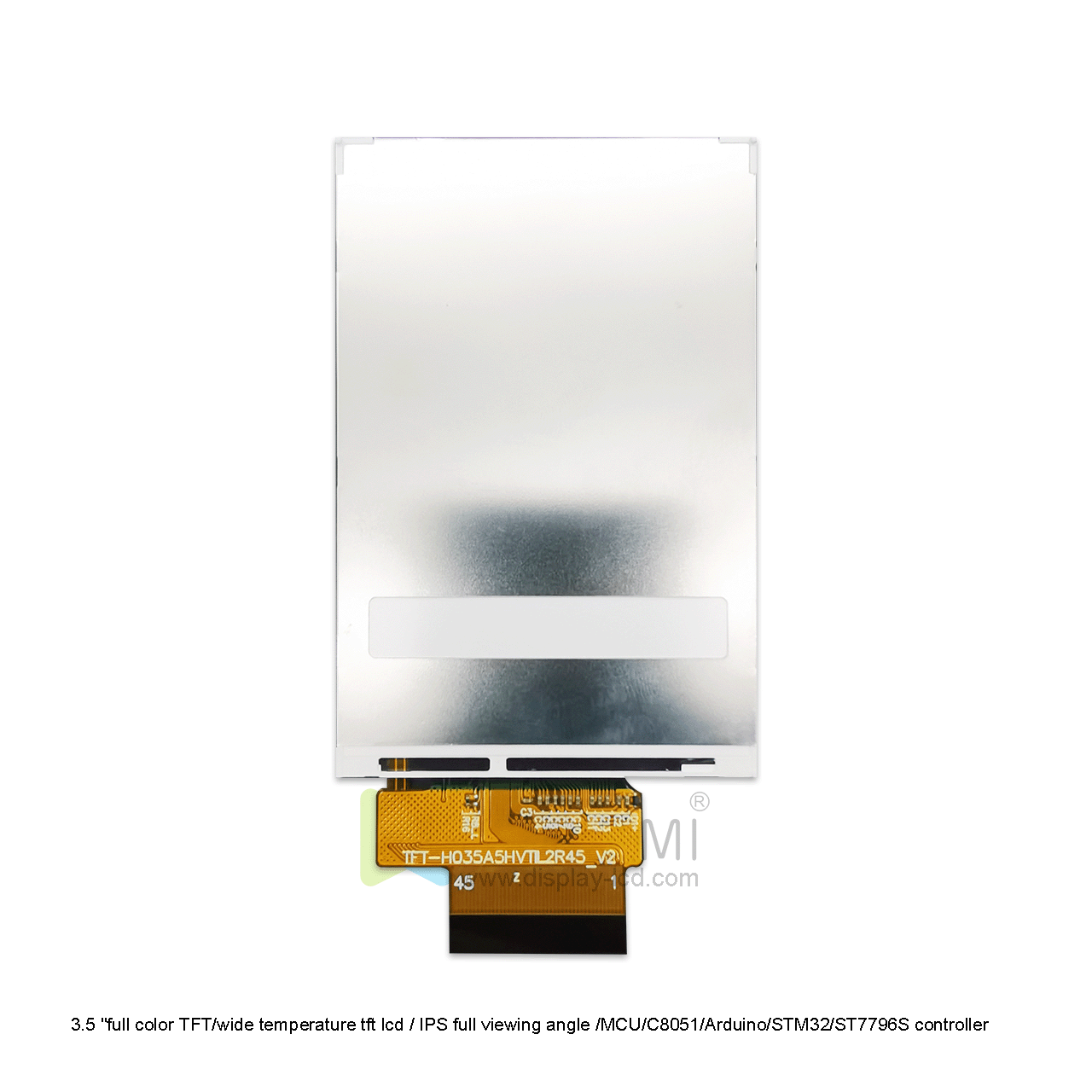

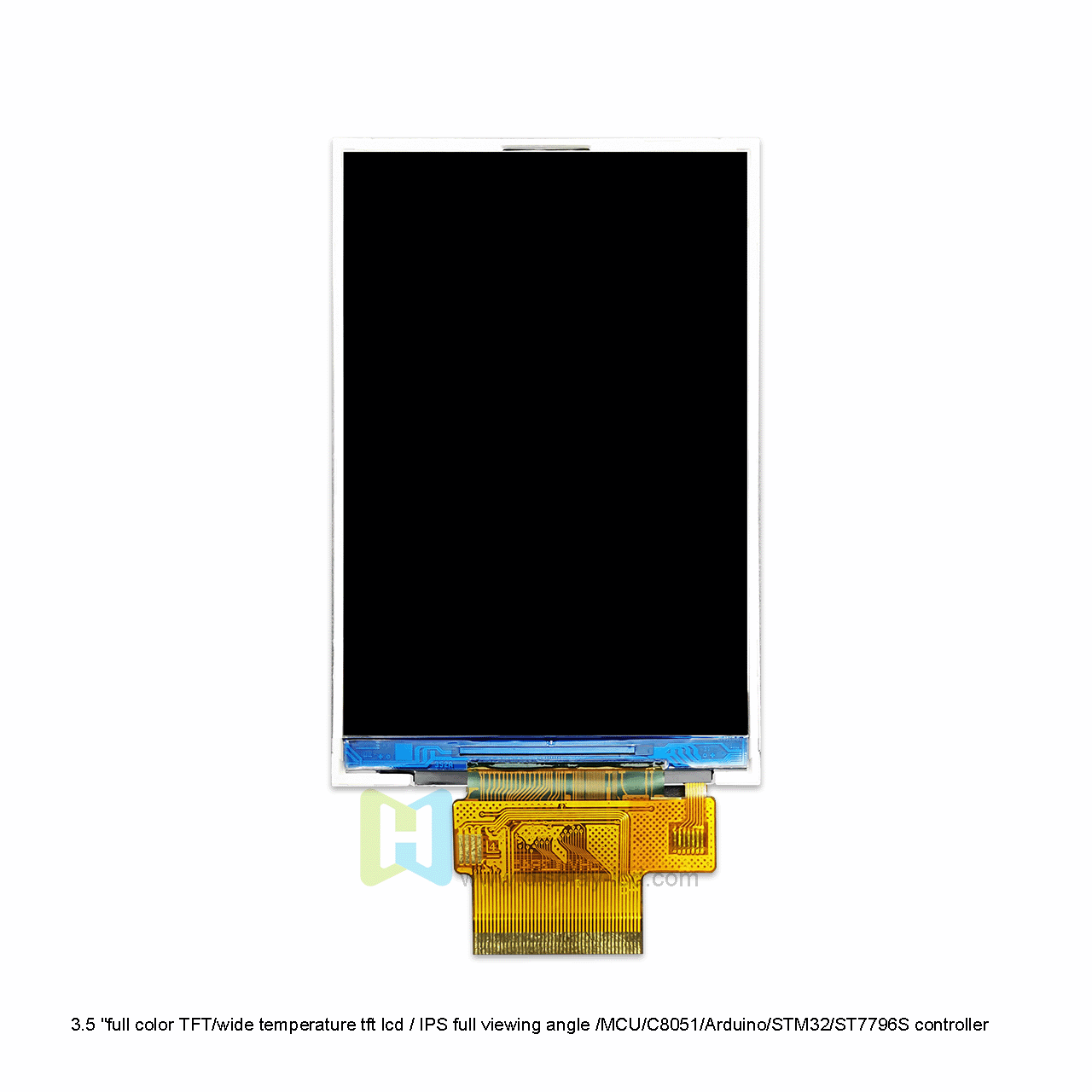

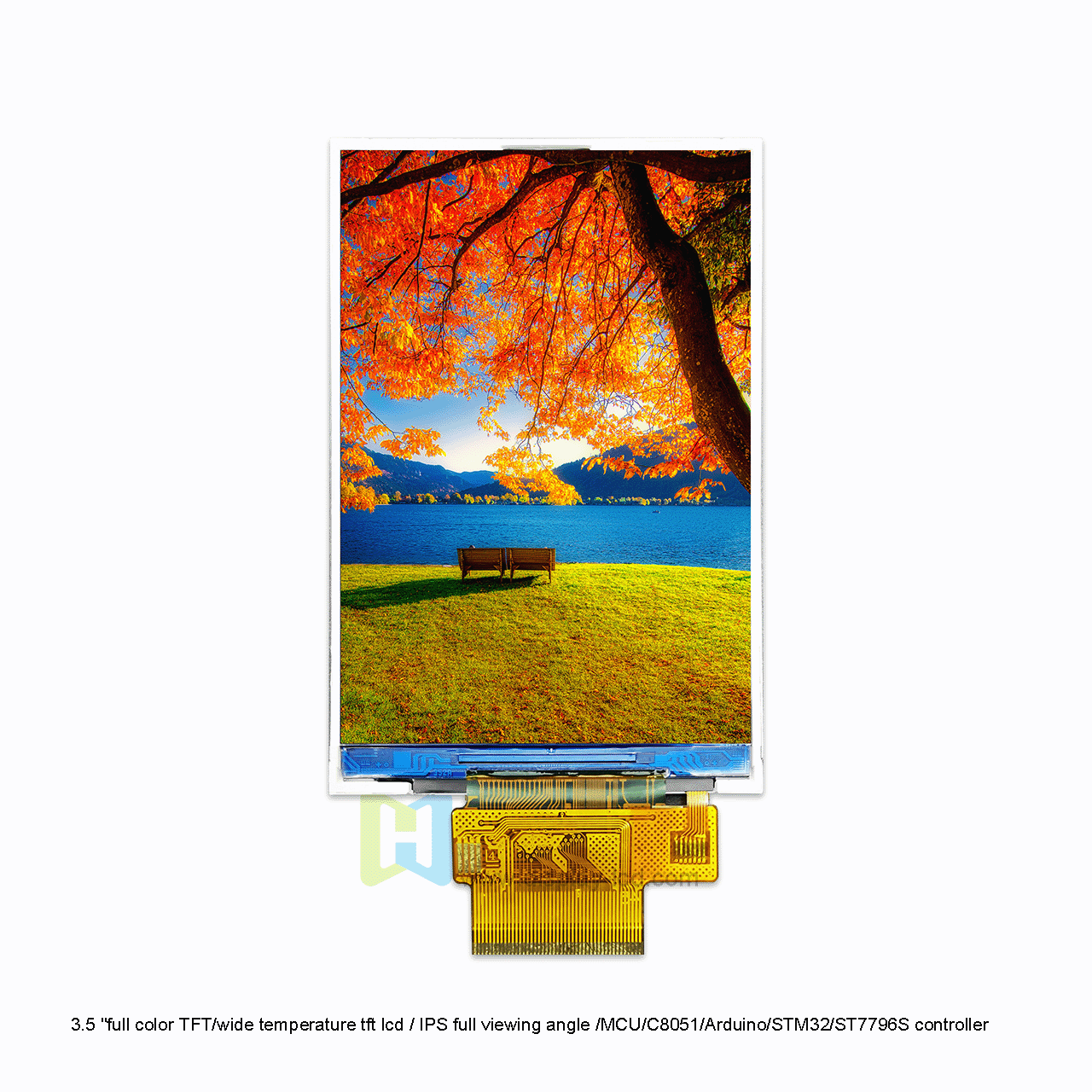

3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7796S controller Model TFT-H035A5HVTST3N 45 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. It has a resolution of 320x480, built-in ST7796S controller, optional touch screen, support MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.
