Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.1-inch IPS full-view 1280x800 with driver board module/sunlight visible TFT display module LCM-TFT101T61XGHDVUSDC | TFT Module | 1280x800 |
|
266.7x165x7.3 | 10.1 | 10.1 | 216.96x128.6 | IPS | 800cd/M2 | HI | Anti-static ESD 8KV | -20~70℃ | 9V~24V | |||

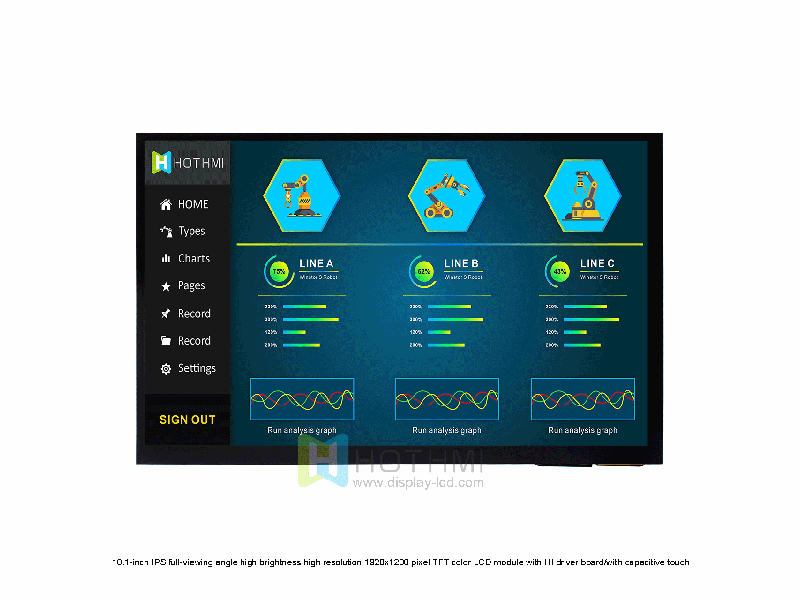

| 10.1-inch IPS high brightness 1920x1200 pixel TFT color LCD module with HI driver board HTM-H101A4-HI | HI driver-free module | 1920x1200 |
|
230.2x150.0x4.4 | 10.1 | 10.1 | 216.81x135.5 | IPS | 1000cd/m2 | HI | Anti-static ESD 8KV | -20~60℃ | 12V | |||
| 4.3-inch TFT LCD color display / FFC connectorIPS TFT LCD / MIPI interface HTM-H043A10-MIPI-A06 | TFT | 800x480 |
|
105.5X67.2X7.55 | 4.3 | 4.3 | 95.04X53.86 | IPS | 500cd/m2 | FFC-30 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | 5.0V | ||

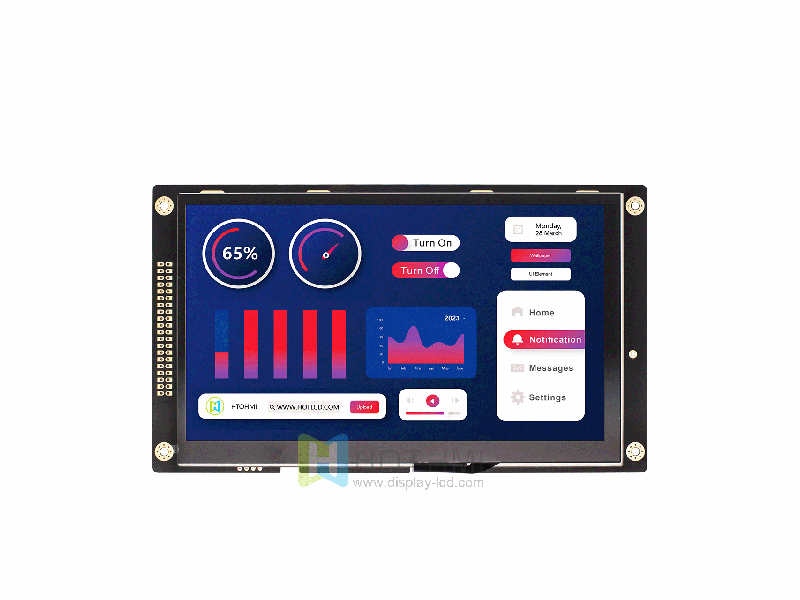

| 7.0"TFT LCD Module/Wide Temperature/IPS Full Viewing Angle/With Capacitive Touch/STM32/RK/Sunlight Readable HTM-H070A20-RGB-A01C | TFT Module | 1024x600 |
|
186.90x108x10.0 | 7.0 | 7.0 | 154.21x85.92 | IPS Full View | 500cd/m2 | RGB | Anti-static ESD 8KV | -30~80℃ | 4.5 | T.B.D | ||
| 7.0" TFT LCD display module / 1024x600 resolution / wide temperature / IPS full viewing angle / capacitive touch / sunlight readable HTM-H070A20-RGB-B06 | TFT Module | 1024x600 |
|
186.90x108x10.0 | 7.0 | 7.0 | 154.21x85.92 | IPS | 500cd/m2 | RGB | Anti-static ESD 8KV | -30~80℃ | 5.5 | T.B.D | ||

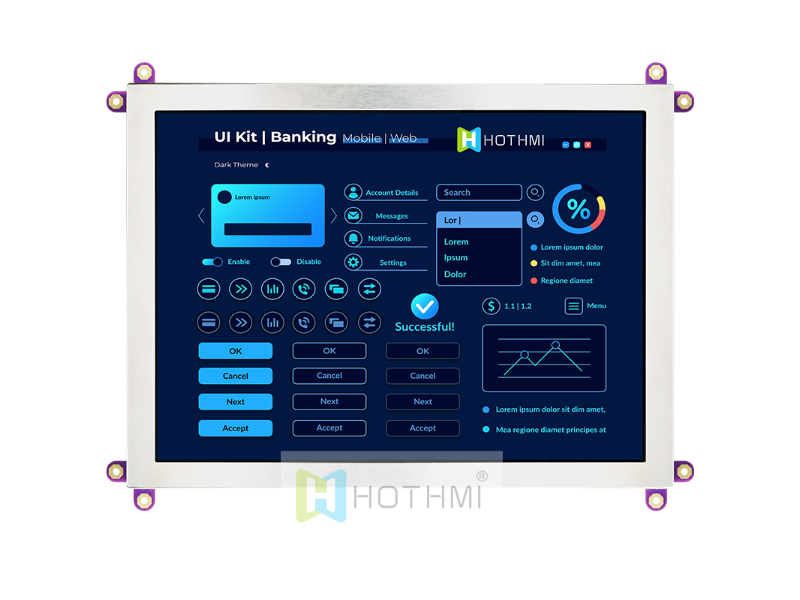

| 8.0 inch 1024x768 TFT color LCD module with driver board with capacitive touch screen/LCM-TFT080T61XGHDVNSDC | HI driver-free module | 1024x768 |
|
203x161x23.5 | 8.0 | 8.0 | 162.05x121.54 | 12H | 250cd/m2 | 49pin | HI/VGA | Anti-static ESD 8KV | -20~70℃ | 9V～12V | T.B.D | |
| 8 inch 1024x768 Px TFT color LCD module with HI driver board/optional touch function/LCM-TFT080T61SVHDVNSDC | HI driver-free module | 1024x768 |
|
203x161x21.8 | 8.0 | 8.0 | 162.05x121.54 | 12H | 300cd/m2 | HI/VGA | Anti-static ESD 8KV | -20~70℃ | 9V～24V | T.B.D | ||
| 3.5 inch 320x240 px TFT LCD with control board IPS LVDS stainless steel shell/HTM-TFT035C01-LVDS | TFT Module | 320x240 |
|
83.9x65.9x14.85 | 3.5 | 3.5 | 70.88x52.56 | Full view | 350cd/m2 | FPC-20PIN | LVDS | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7272A | |
| 7 inch 1024x600px TFT color LCD module with driver board/optional touch function/HTM -TFT070 A7 | TFT Module | 1024x600 |
|
166.1x101.2x8.3 | 7.0 | 7.0 | 154.21x85.92 | Full view | 500cd/m2 | 22pin | VGA | Anti-static ESD 8KV | -20~70℃ | 9V～12V | T.B.D | |
| 4.3-inch IPS full viewing angle 800x480px TFT LCD color LCD display optional touch screen/LCM-TFT043T3 | TFT Module | 800x480 |
|
121.9x74.7x6.35 | 4.3 | 4.3 | 95.04x53.86 | 400cd/m2 | 40pin | TTL | Anti-static ESD 8KV | 3.3V | ST7262 |
