Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：113.0x65.0x12.7
Size of View Window(mm)：72.0x39.5
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108

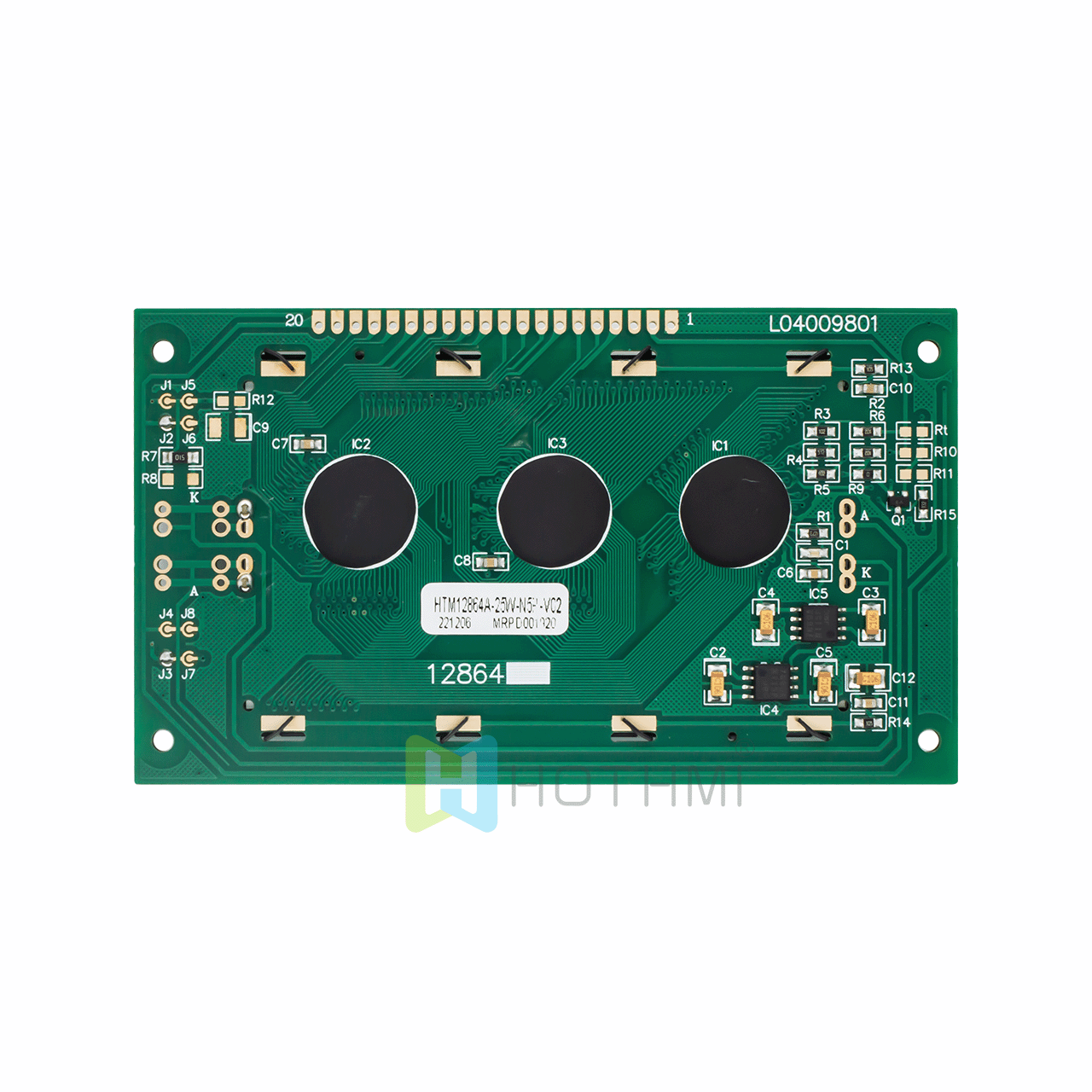

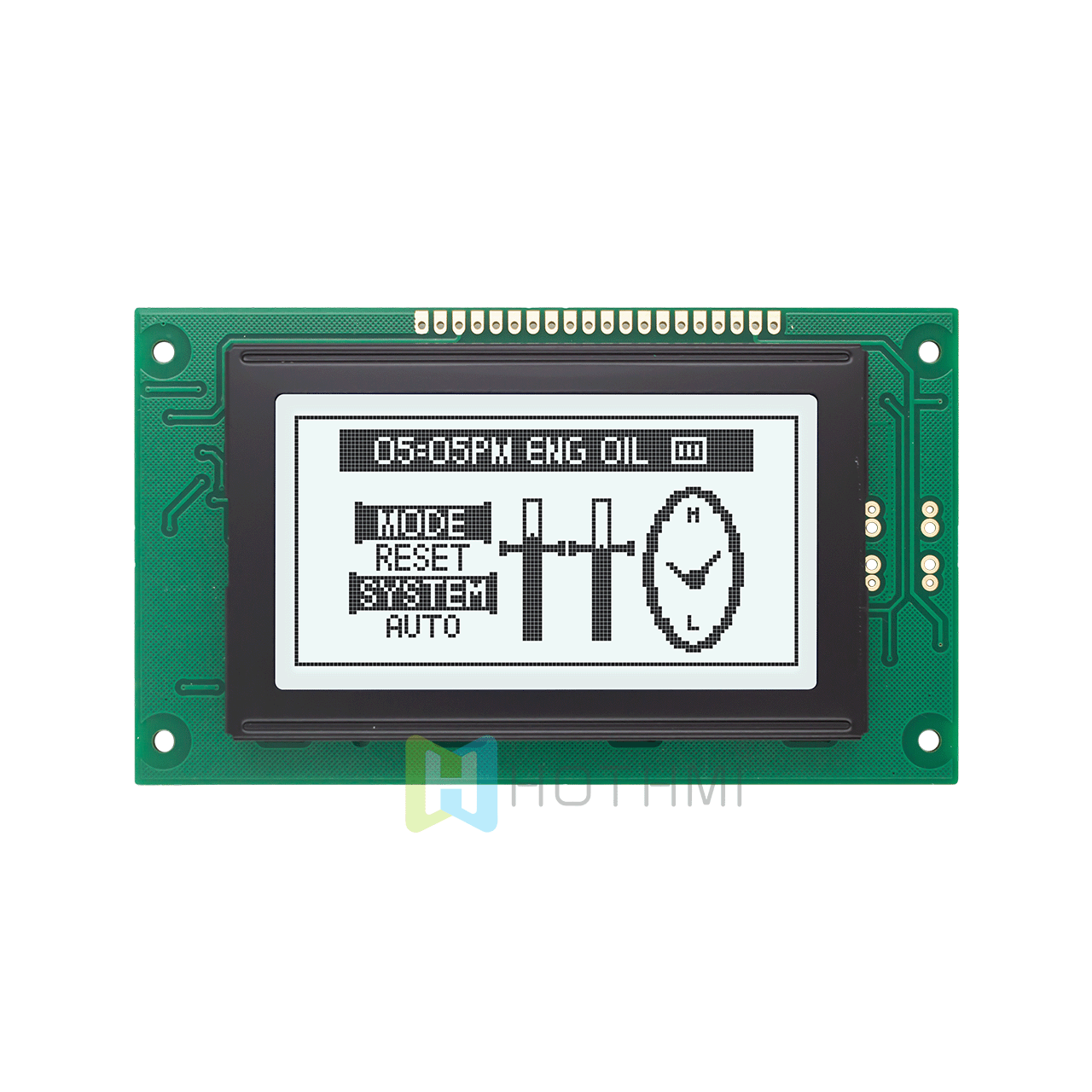

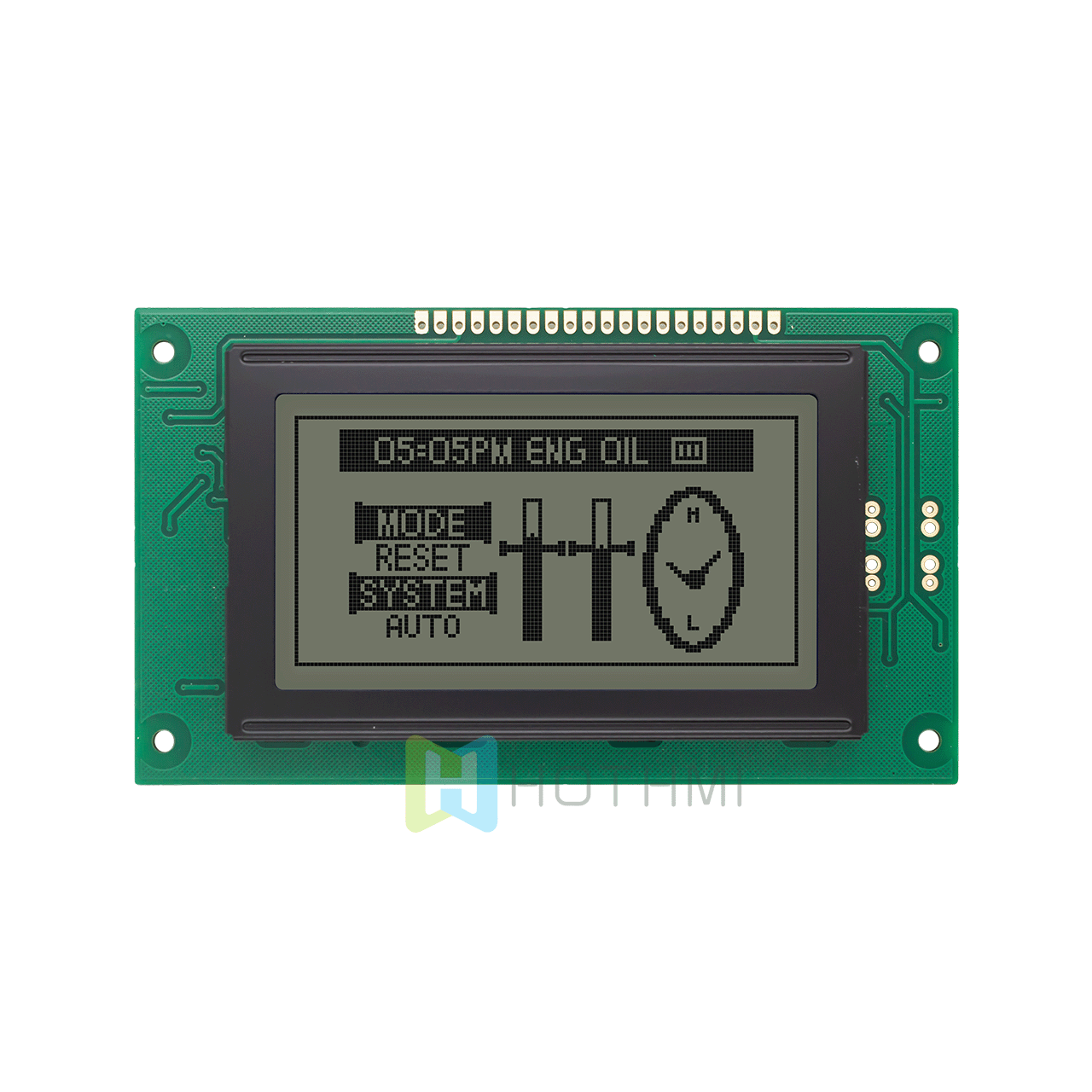

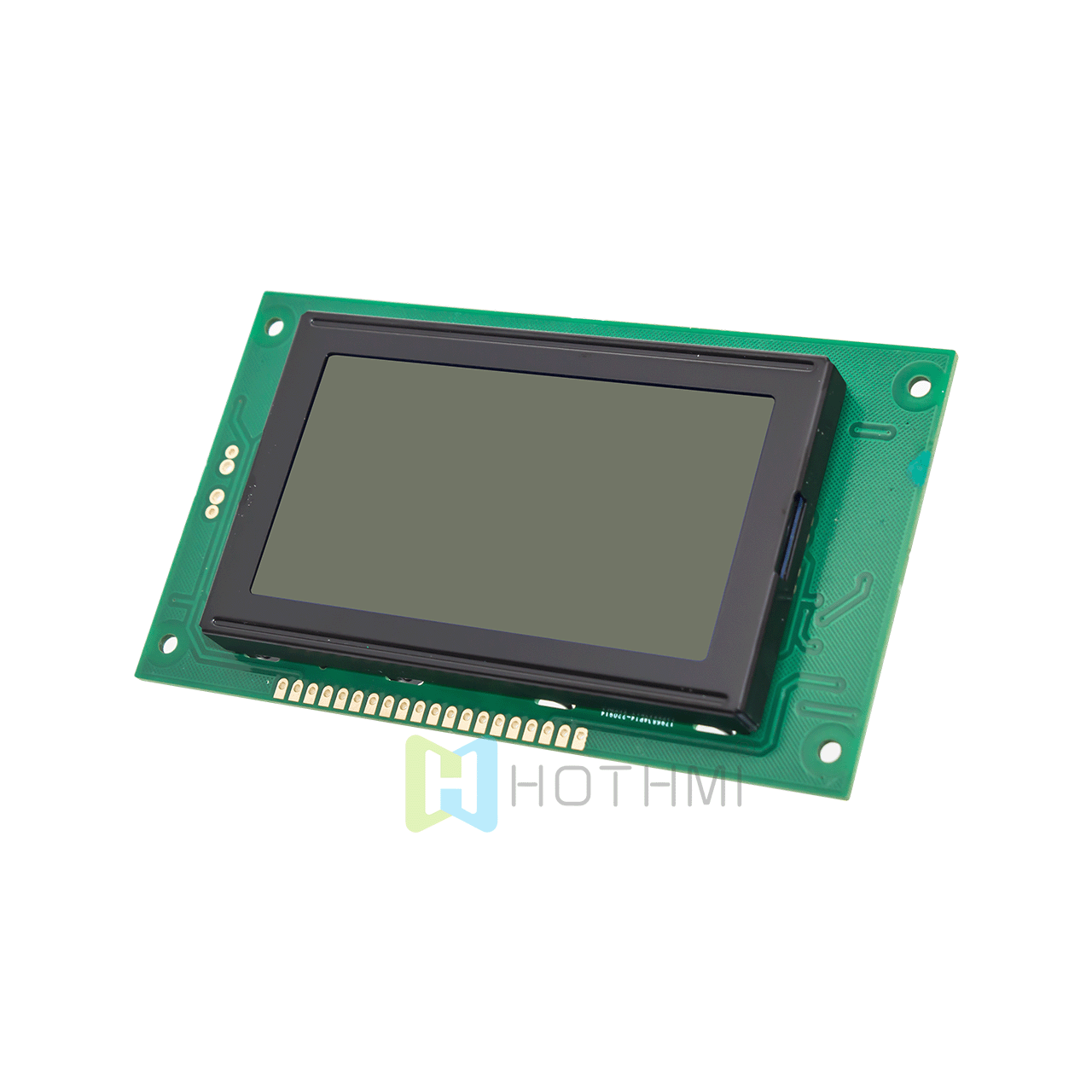

This Hot Dispaly 128x64 Graphic LCD Display Module displays gray pixels on a white background. This transmissive LCD display has been carefully designed to provide optimal visibility and impressive colors when used in darker environments. The display has a strong built-in backlight to provide high contrast and ensure readability of all graphics on the screen. Equipped with a 2x10 pin header soldered on the display, this graphic LCD display module is fully compatible with Arduino, allowing simple and seamless connection with other electronic systems for a variety of applications. The HTM12864A-31W-A5P model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 5V and is RoHS compliant.
