Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：93.0x70.0x14.0
Size of View Window(mm)：72.0x39.0
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108

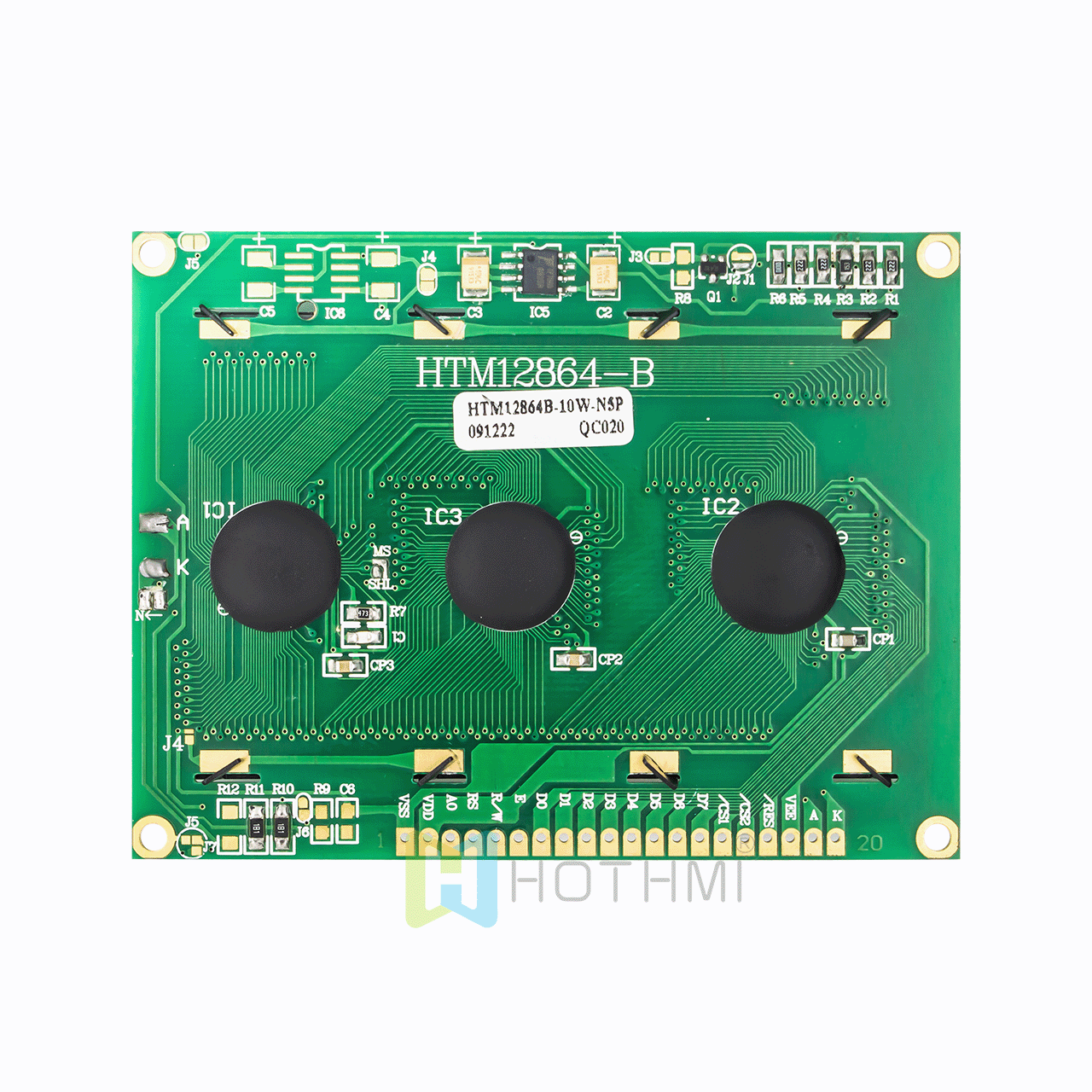

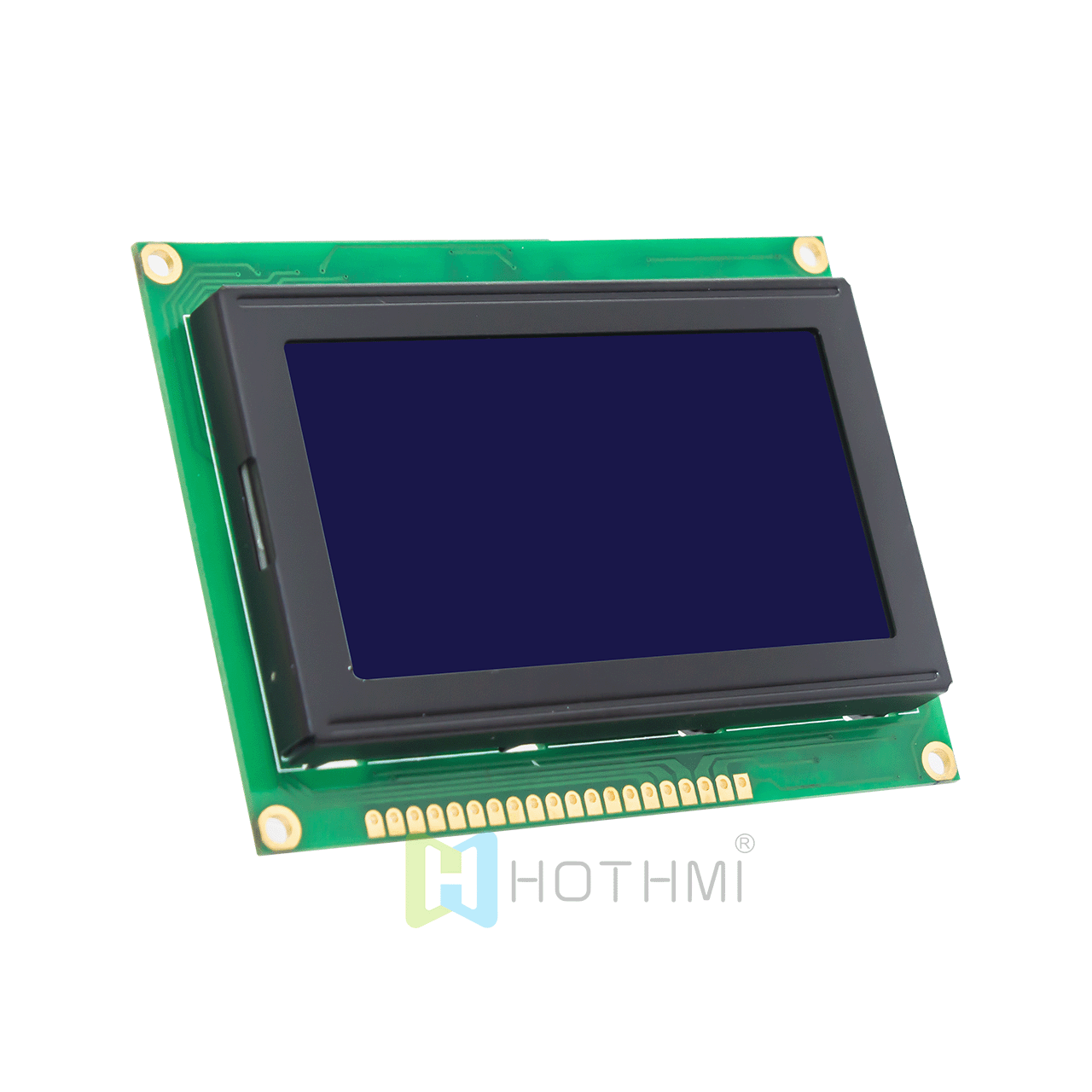

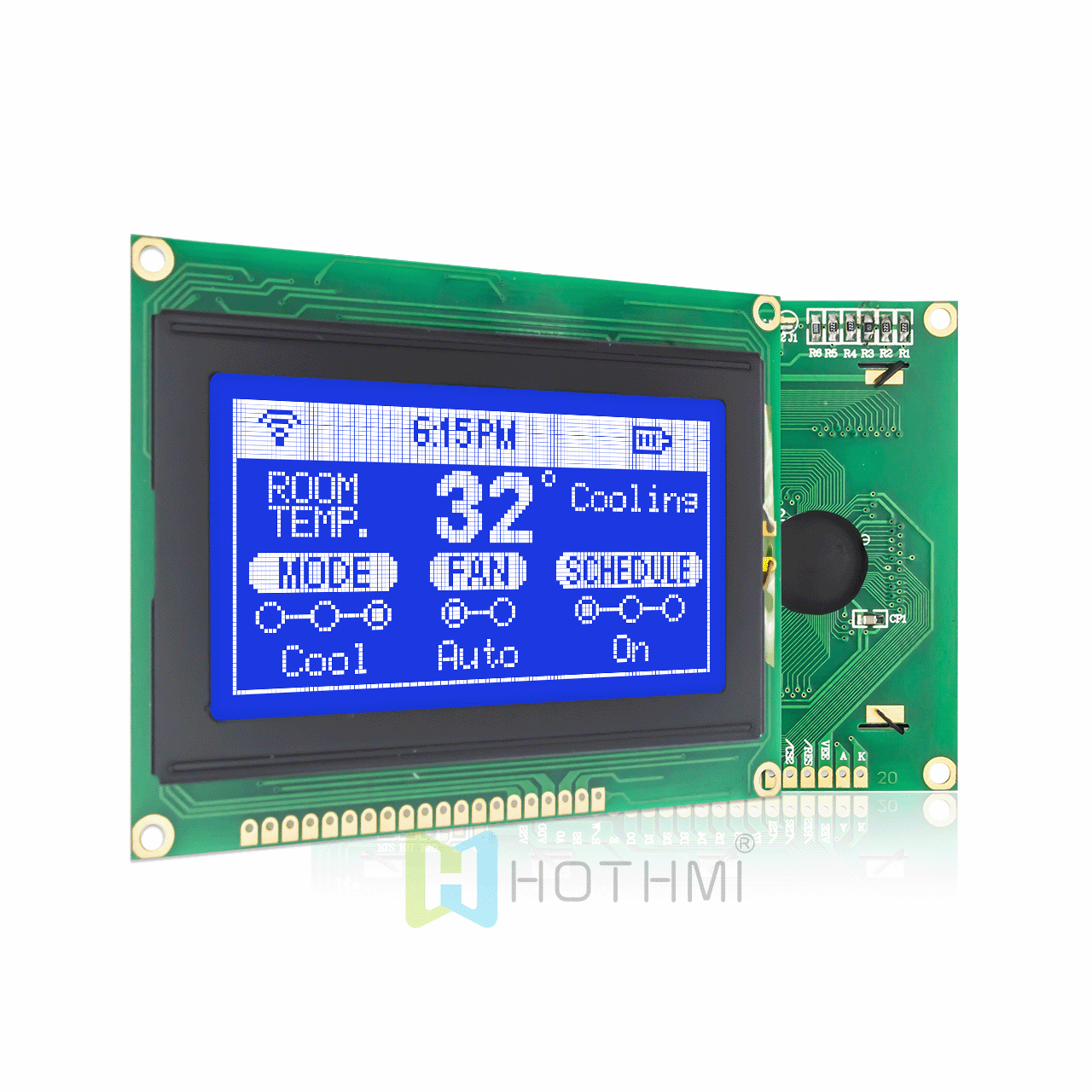

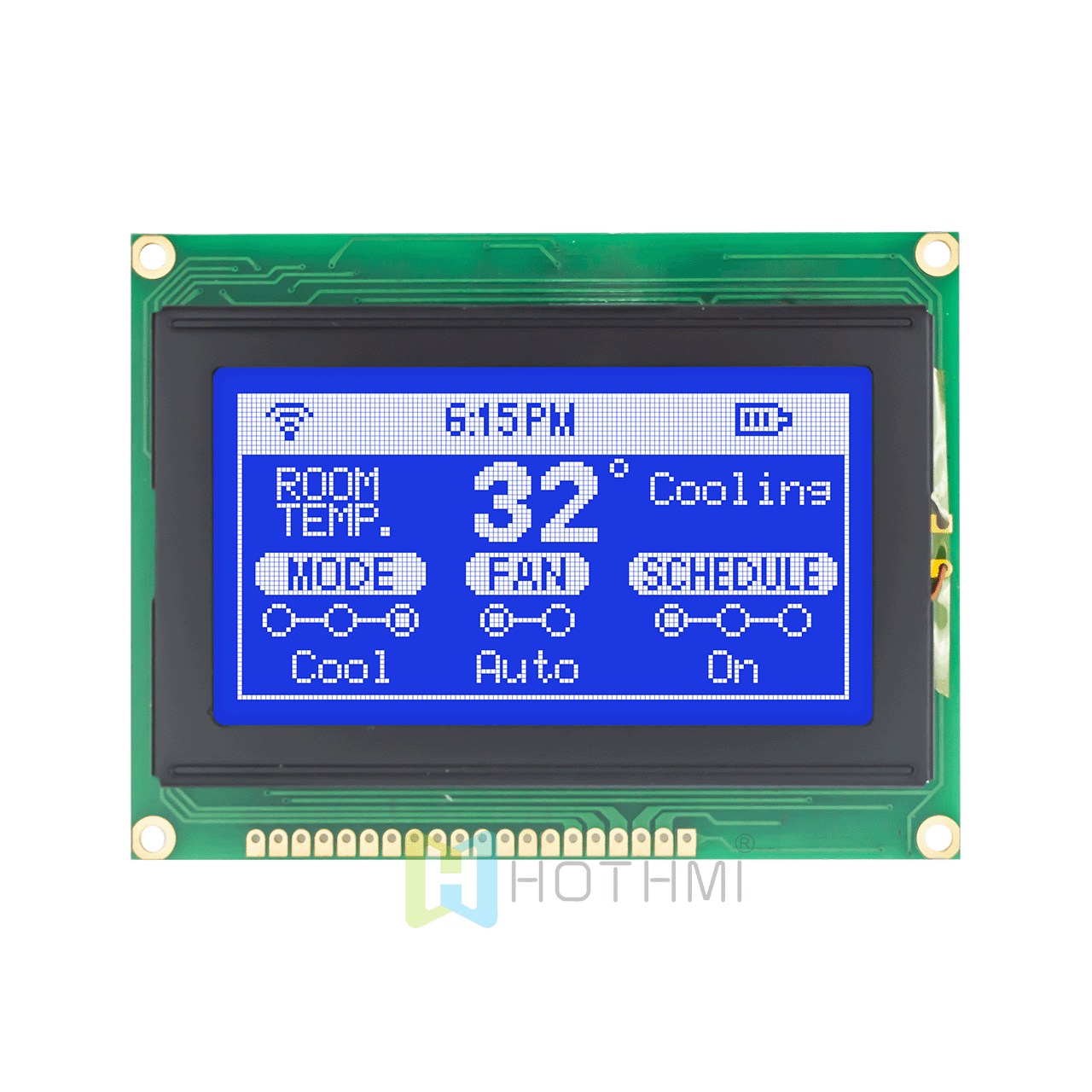

HTM12864B-25W-A5P is blue background, 128x64 monochrome white pixels, KS0107+KS0108 or compatible controller is very common and well documented, it is MCU interface, STN-blue LCD negative, wide operating temperature range, contrast ratio High, RoHS compliant and compact in size. The default is pin header connection.It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.
