Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：93.0x70.0x14.0
Size of View Window(mm)：72.0x39.0
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108

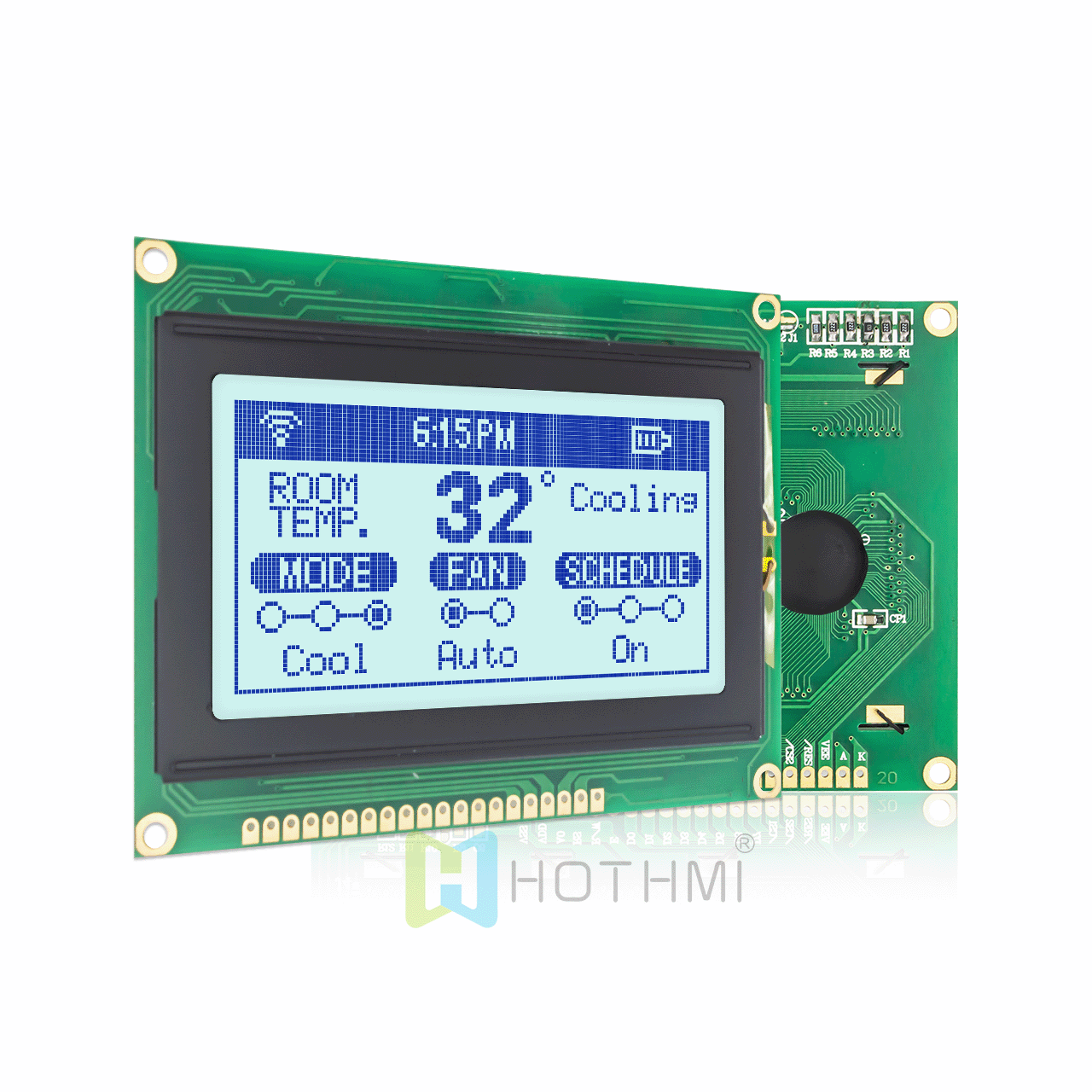

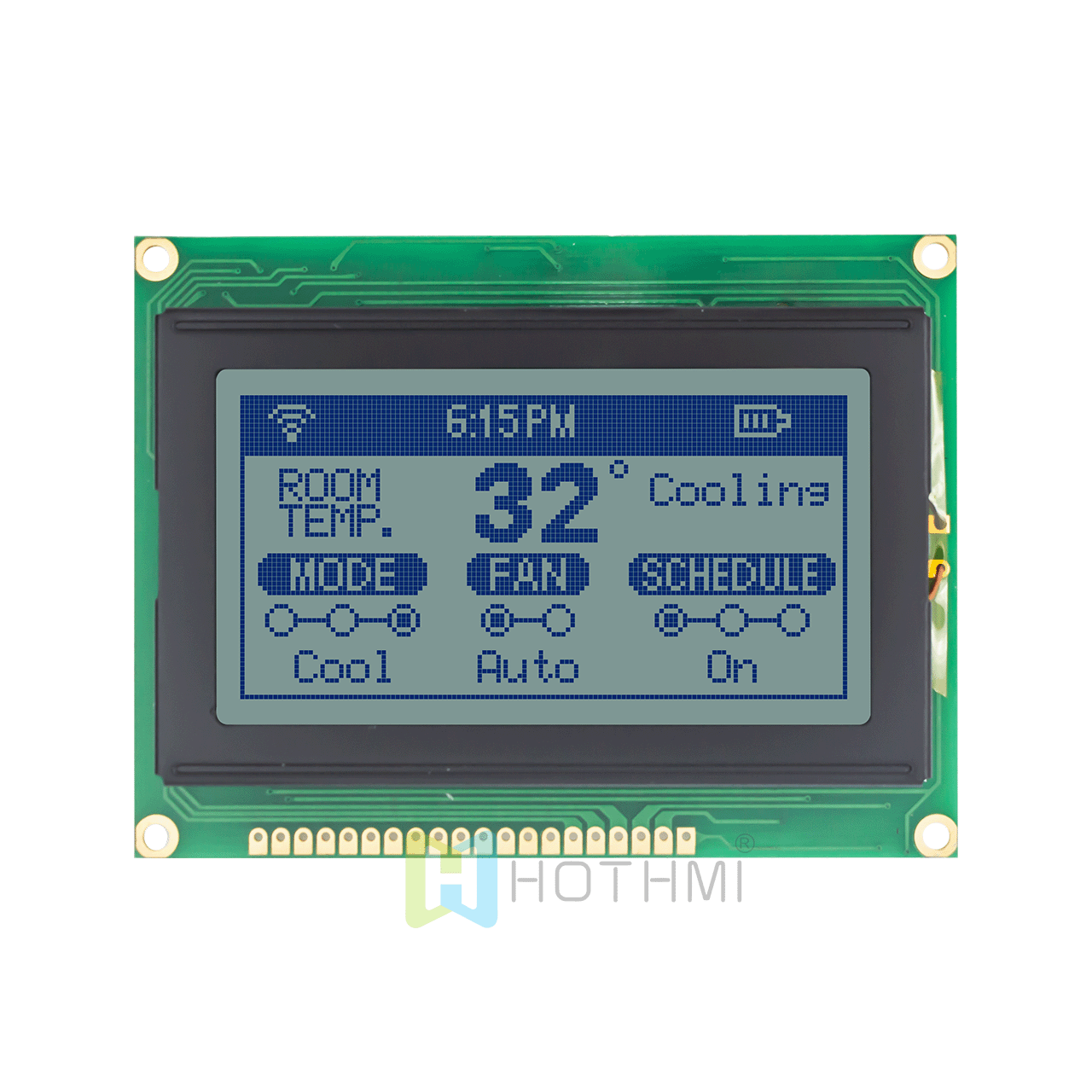

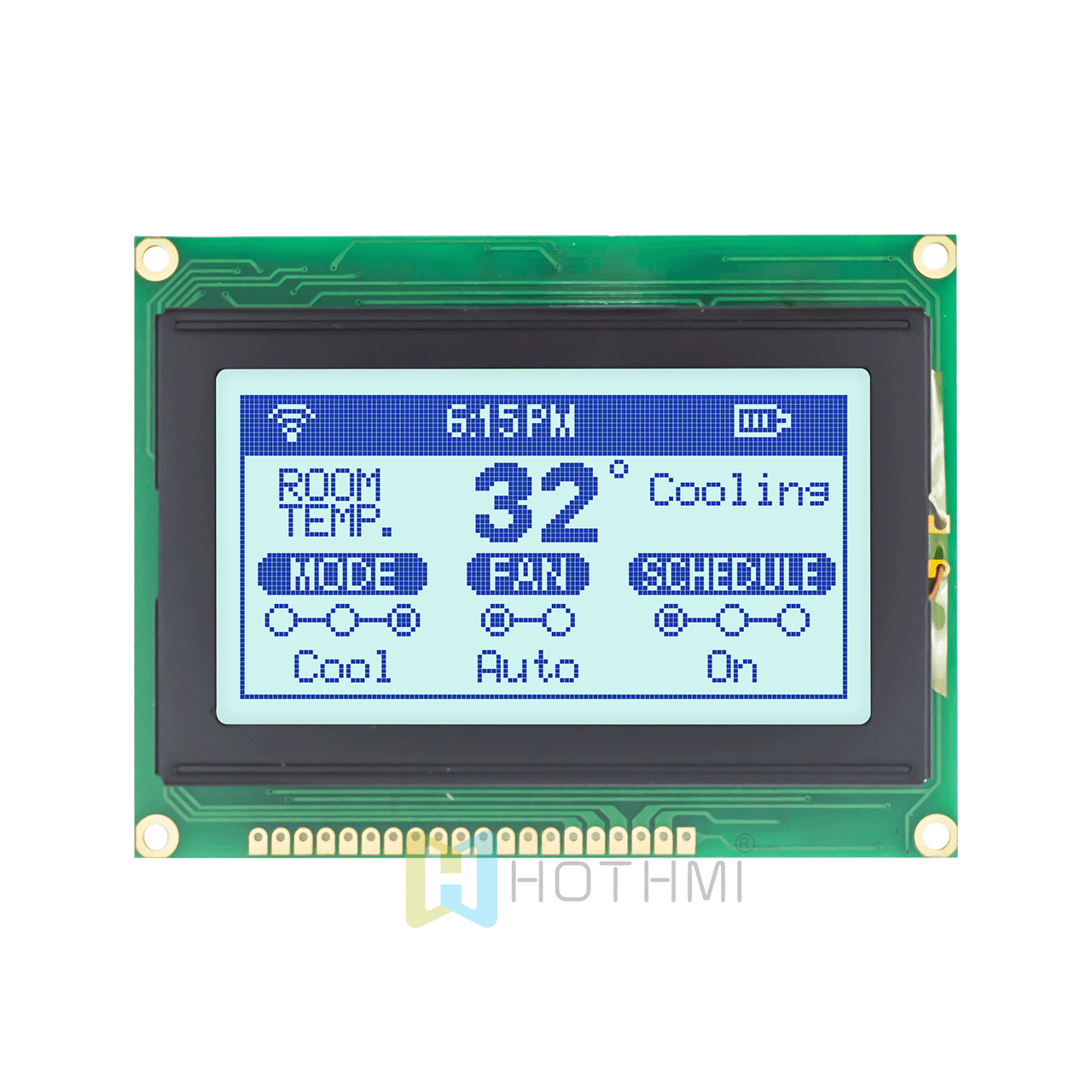

This 128x64 graphics LCD module displays dark blue patterns or fonts on a light gray background. This translucent LCD screen is engineered to ensure visibility in a variety of lighting conditions in a variety of environments. In sunlight, the screen uses reflectors to reflect the screen back to the viewer, making the screen easier to read. In darker environments, the LCD display has a powerful backlight that provides viewers with high contrast and displays clear graphics. This advanced display technology ensures that images are always easy to read regardless of lighting conditions.
The graphic LCD module is fully compatible with Arduino and can be seamlessly connected to other electronic systems and suitable for a variety of applications. The HTM12864B-11W-A5P model is designed to withstand harsh operating conditions, operating abnormally in temperatures ranging from 20 to 70 degrees. LCD screen viewing angle is 6:0
