Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：93.0x70.0x14.0
Size of View Window(mm)：72.0x39.0
Display size(mm) ：66.52x33.24
Point spacing(mm)：0.52x0.52
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V

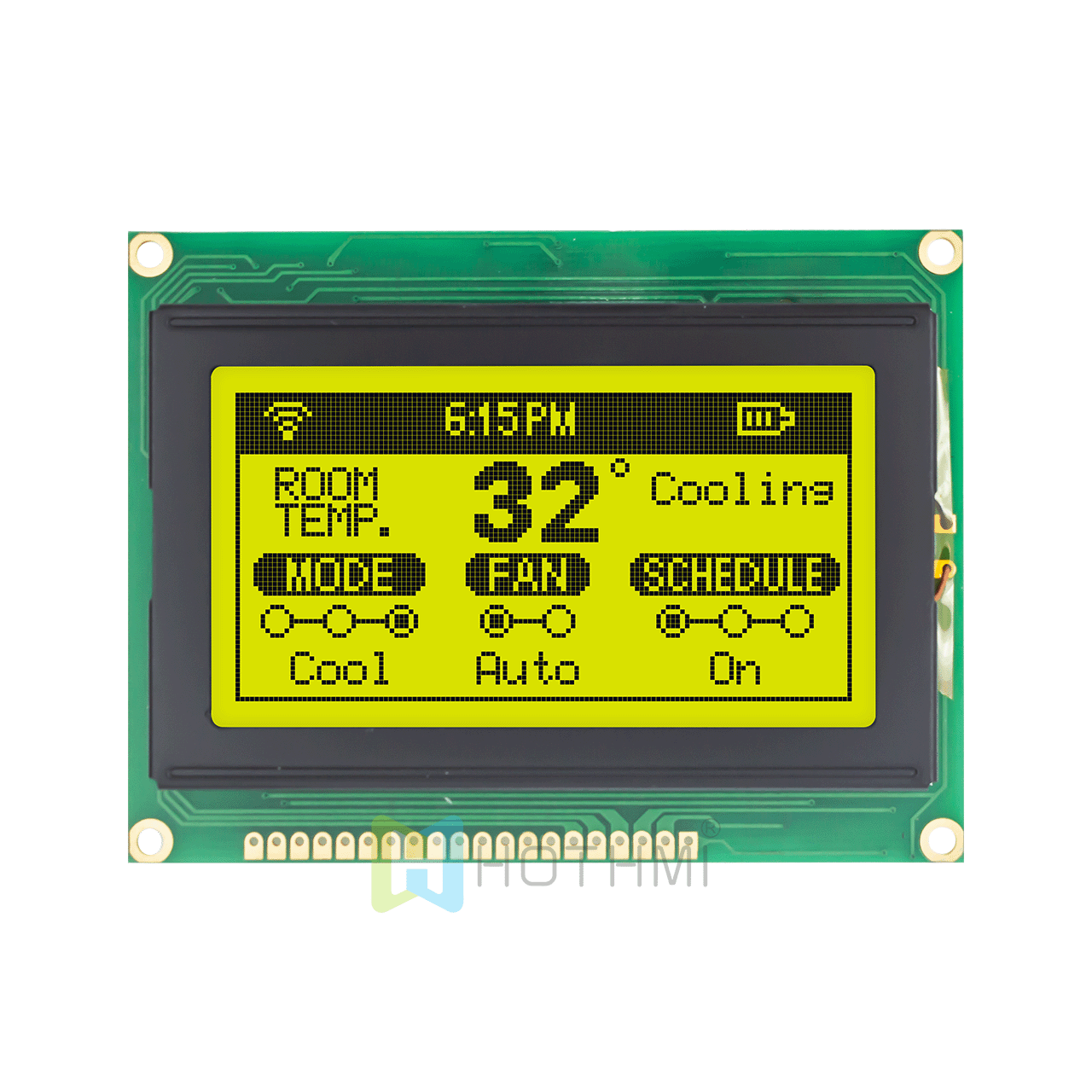

The LCD Graphics Hot Display module displays lit dark gray pixels on a bright yellow-green background. This semi-transverse LCD monitor is designed to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the screen uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a powerful built-in backlight design that provides high contrast and displays clear graphics to the viewer. This advanced visualization technology ensures that the screen is always easy to read, regardless of lighting conditions.
This LCD graphic display module is fully compatible with Arduino and can be perfectly connected to other electronic systems for various applications. The HTM12864B-11Y-A5P model is designed to withstand harsh conditions.
