With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

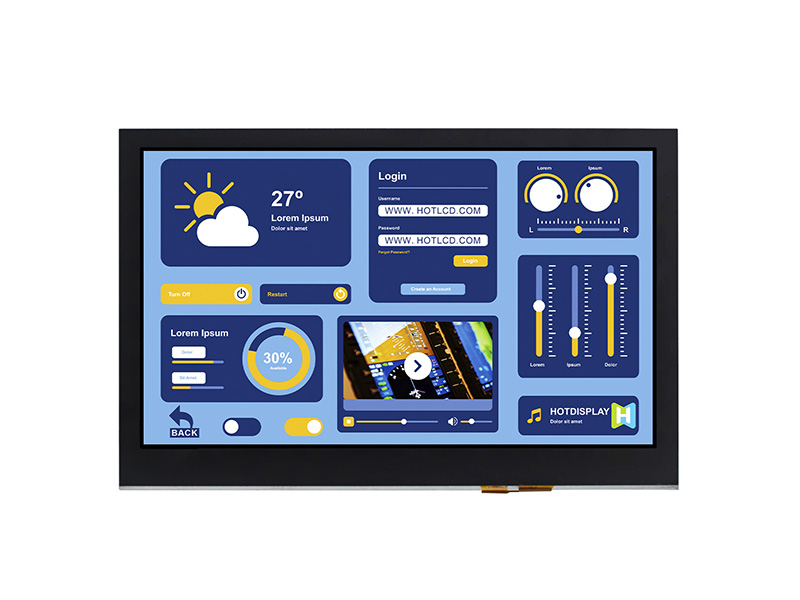

| 5.0-inch high brightness IPS TFT display | Full-viewing HD LCD TFT | MCU QSPI interface compatible TFT-H050A19WQINVKN22 | TFT | 480x272 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 110.88x62.83 | IPS | 1000cd/M2 | FPC-22 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | NV3041 | |

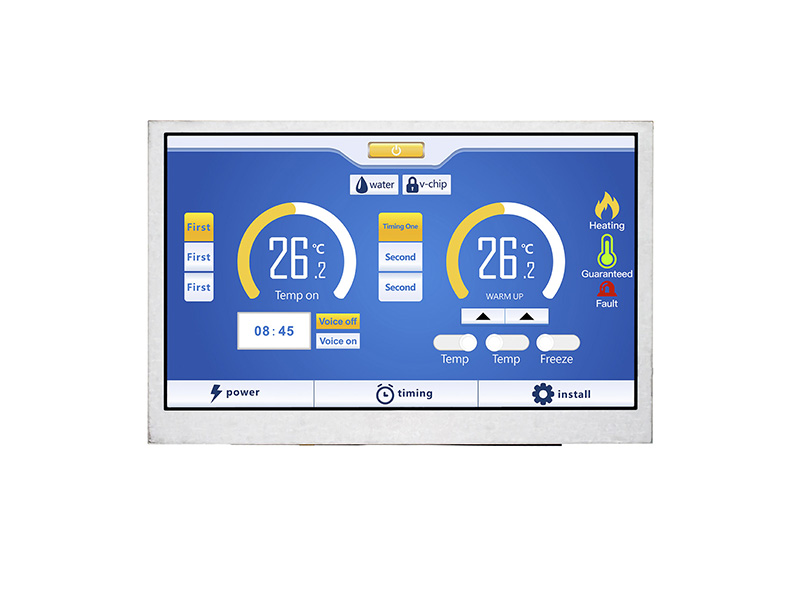

| 5.0-inch 480x272 high-brightness capacitive touch display | IPS full viewing angle | SPI | QSPI | MCU compatible TFT-H050A19WQINV8C22 | TFT | NV3041 |
|
120.7x75.8x4.7 | 5.0 | 5.0 | 110.88x62.83 | IPS | FPC-22 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | NV3041 | ||
| 3.5-inch 480x800 RGB interface capacitive touch display| 3.5-inch capacitive touch color TFT TFT-H035A24WVIST6C40 | TFT | 800x480 |
|
55x93x5.61 | 3.5 | 3.5 | 45.36x75.6 | IPS | 600 | 40 PIN | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |
| 10.4-inch 1024x768 resolution full-view full-transparent TFT color display | LVDS interface | Linux system motherboard TFT-104IA-36A | TFT | 1024x768 |
|
238.6x175.8 x 6.5 | 10.4 | 10.4 | 210.432x157.824 | IPS | 500cd/m2 | FPC-30PIN | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ | |
| 3.5-inch IPS full-view smart TFT display | 320x480 resolution | UART interface | EzUI COF-H35A32-UART-A01 | TFT | 48.96x73.44 |
|
54.46x82.94x1.96 | 3.5 | 3.5 | 48.96x73.44 | IPS | 400 | 20PIN | UART | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 12.3-inch IPS full-view standard TFT display | 1920x720 resolution | LVDS interface | Linux system/RK motherboard TFT-H123A1ZEIWZ8N50 | TFT | 1920x720 |
|
320x125.4x13.7 | 12.3 | 12.3 | 292.032x109.512 | IPS | 850cd/m2 | FPC-50PIN | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3V | T.B.D | |
| 10.1-inch 1024x600 full-view standard TFT LCD display | LVDS interface | EK79001+EK73215 TFT-H101A4WSIFT3N40 | TFT | EK79001+EK73215 |
|
235x143x3.0 | 10.1 | 10.1 | 222.72x125.28 | IPS | 222.72x125.28 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | -20~70℃ | |
| 10.1-inch 1024x600 IPS high-definition TFT color display | RGB interface TFT-H101A3WSIFT7N50 | TFT | EK79001+EK73215 |
|
235x143x5.0 | 10.1 | 10.1 | 222.72x125.28 | IPS | 222.72x125.28 | FPC-50 PIN | TTL | Anti-static ESD 8KV | -20~70℃ | +3.3V | EK79001+EK73215 | |
| 5.2-inch 416x1280 resolution TFT full-color LCD display | RGB interface | STM32/RK series display TFT-H052A01ZAIST5N40_V1-0 | TFT | 416x1280 |
|
43.55x131.28x2.1 | 5.2 | 5.2 | 40.75x125.38 | IPS | 500 | 40PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701S | |

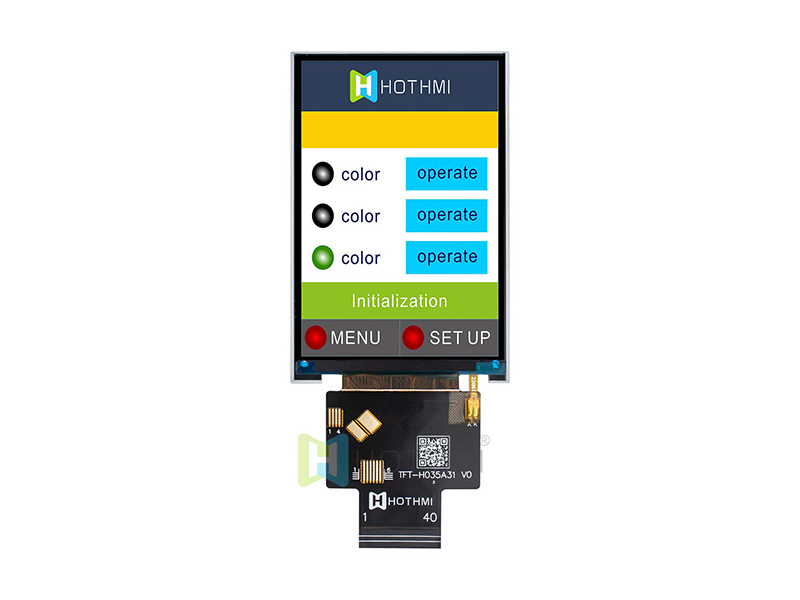

| 3.5-inch full-view MCU interface TFTLCD color display TFT-H035A31HVIIL4N40 | TFT | ILI9488 |
|
54.46x82.94x1.69 | 3.5 | 3.5 | 48.96x73.44 | IPS | 450cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ILI9488 |
