類型：?jiǎn)紊玊FT
顯示像素：320x240

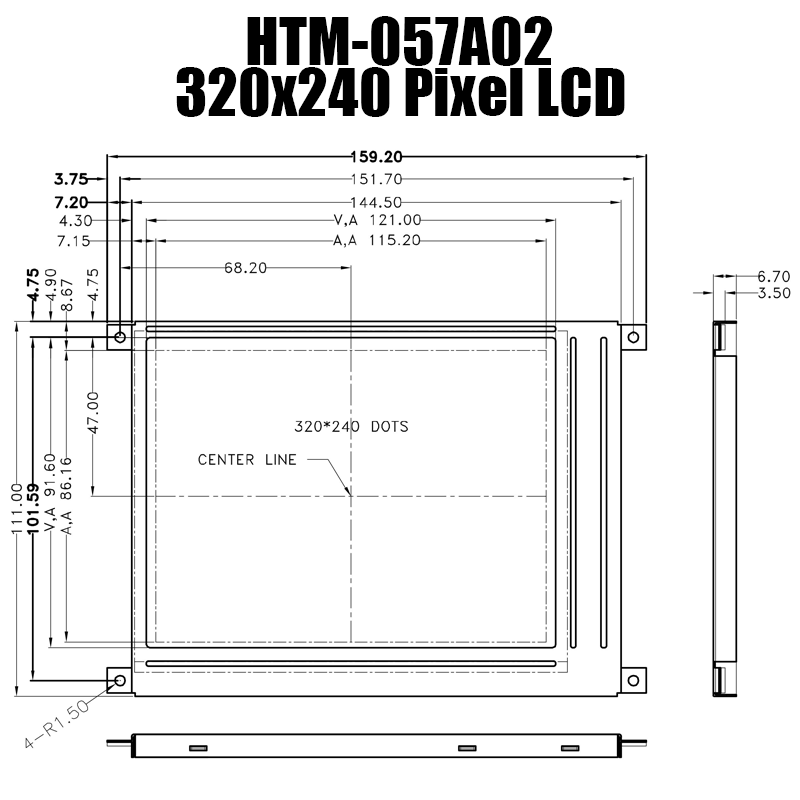

外形尺寸 ：159.2x111.0x6.7
VA尺寸：5.7
AA尺寸 ：5.7
點間距mm：0.36x0.36
有效尺寸mm：115.2x86.16
應用：戶外儀器儀表
視角：6H
背光/亮度：500cd/m2
引腳：20pin
接口方式：MCU
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：3.3V
驅動芯片：ST7511

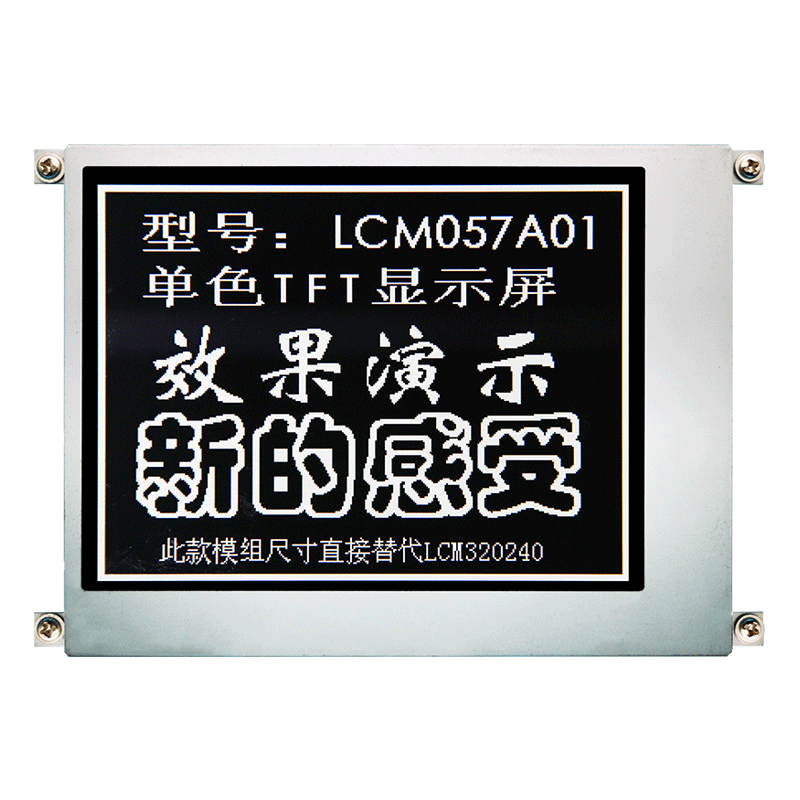

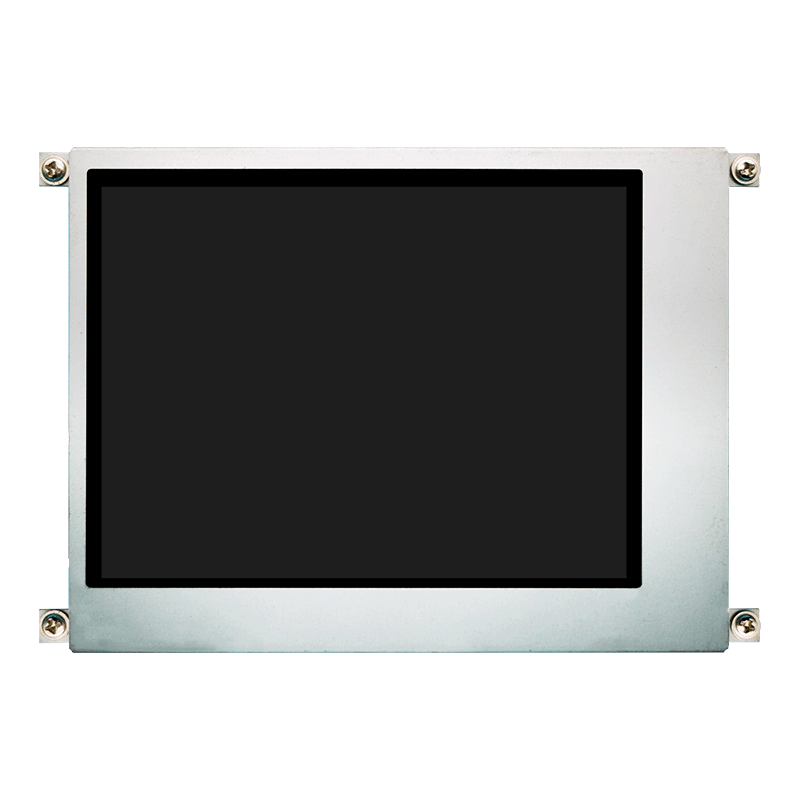

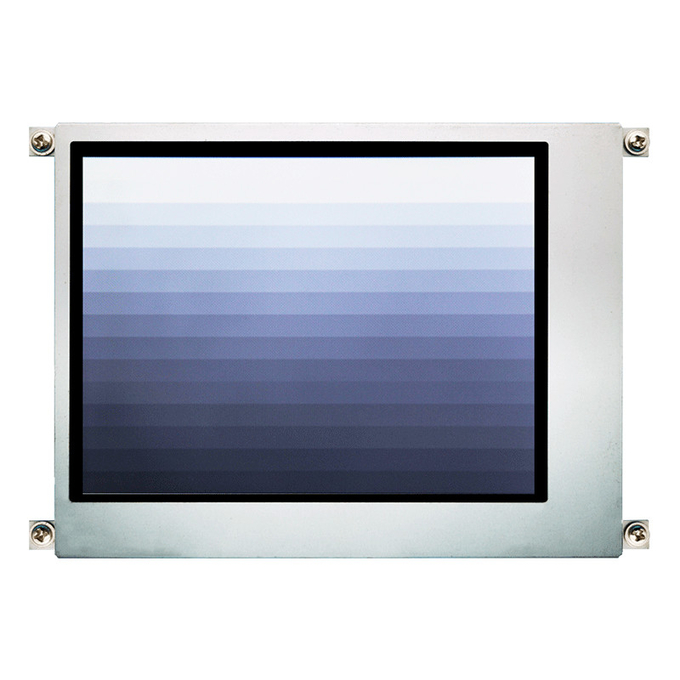

隆重推出我們專為工業儀表應用而設計的高品質專業單色 TFT 顯示屏。 我們的 5.7 英寸顯示屏分辨率為 320x240，有效尺寸為 115.2x86.16mm，可提供清晰準確的數據可視化表示。
我們的單色 TFT 顯示屏采用優質材料制成，尺寸為 159.2x111.0x6.7mm，是工業儀表應用的理想尺寸。 5.7" 視場窗口尺寸確保最大可見度，6H 視角保證從多個角度準確觀看。
我們的單色 TFT 顯示屏配備強大的 500cd/m2 背光，即使在明亮的陽光下也能提供出色的可視性。 該顯示器采用 20PIN1.0 連接方式，工作電壓為 3.3V，可輕松集成到您的系統中。
顯示器的接口方式采用MCU，采用ST7511驅動芯片型號供電，保證快速高效的處理。 我們的單色TFT顯示屏的工作溫度范圍為-20~70度，適合在各種環境下使用。
雖然我們的單色 TFT 顯示器是專業的且成本高，但其獨特的功能和卓越的品質使其成為準確度和精確度至關重要的工業儀器應用的理想選擇。
General Feature
| Item | Standard Value | Unit | ||
| Display Size | 5.7 | Inch | ||
| Number of Pixels | 320(H)* 240(V) | dots | ||
| Active Area | 115.2x86.16mm | mm | ||
| Outline Dimension | 159.2x111.0x6.7 | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | MCU | - | ||
| Driver IC | ST7511 | - | ||
| Driver Condition | VCI=3.3V(Typ) | V | ||
| Backlight | - | - | ||
| Touch Panel | WHITOUT TOUCH | |||
| CTP Driver IC | - | - | ||
| Driver Condition | VDD=3.3 | V | ||
| TFT Operation AT | -20 ～ +70 | ℃ | ||
| TFT Storage AT | -30 ～ +80 | ℃ | ||
Dot Size | 0.34x0.34 | mm | ||
Dot Pitch | 0.36x0.36 | mm | ||
TFT Pin Description
| No | Pin Name | Descriptions |
| 1 | VSS | Power Supply(0V) |
| 2 | VDD | Power Supply(3.3V) |
| 3 | NC | |
| 4 | RS | Data/Comman Identification Pin |
| 5 | /WR | Read/Write Signal |
| 6 | /RD | Data Read Signal |
| 7 | DB0 | Data Bus Line(DB0-DB7) DB6 as Serial SCK Input For ZK DB7 as Serial Data Input For ZK |
| : | : | |
| 13 | DB6 | |
| 14 | DB7 | |
| 15 | /CS | Chip Select Input Pin For LCD |
| 16 | /REST | Reset Signal |
| 17 | CS# | Chip Select Input Pin For ZK |
| 18 | SO | Serial Data Output For ZK |
| 19 | FGND | Equipment GND |
| 20 | LEDA | Backlight Enable Pin(H:Open) |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

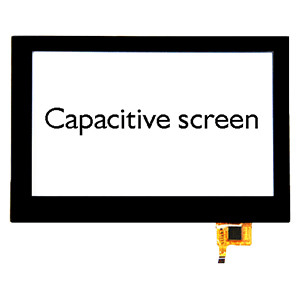

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

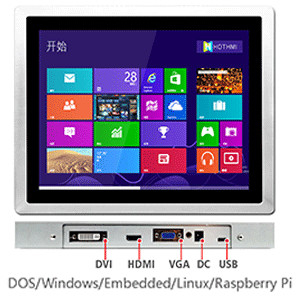

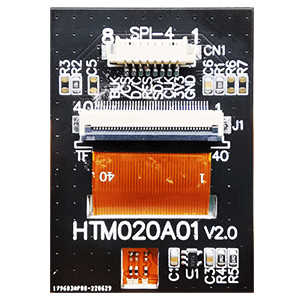

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
