類型：TFT豎屏
顯示像素：800x1280
外形尺寸(mm) ：114.70x184.20x2.65
VA尺寸(mm)：8.0
AA尺寸(mm) ：8.0
有效尺寸mm：107.64x172.224
應用：車載，醫(yī)療，工控

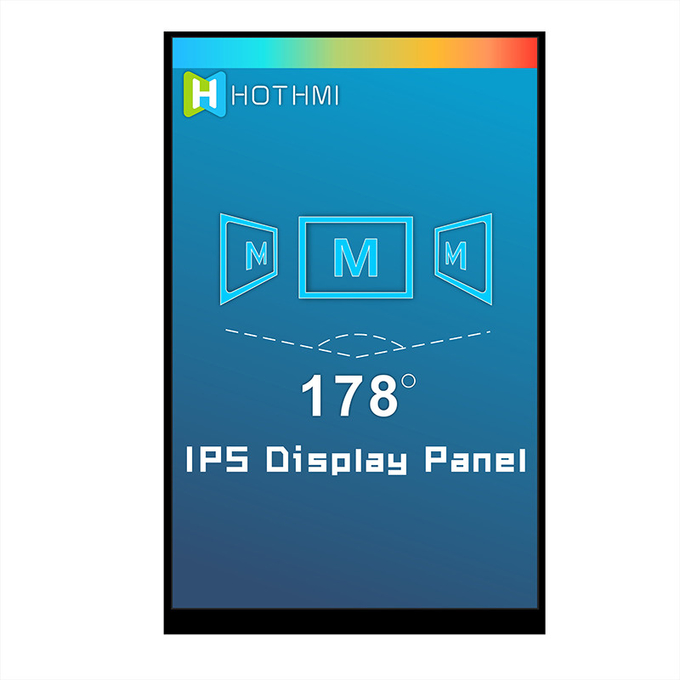

視角：全視角
背光/亮度：600cd/m2
引腳：30pin

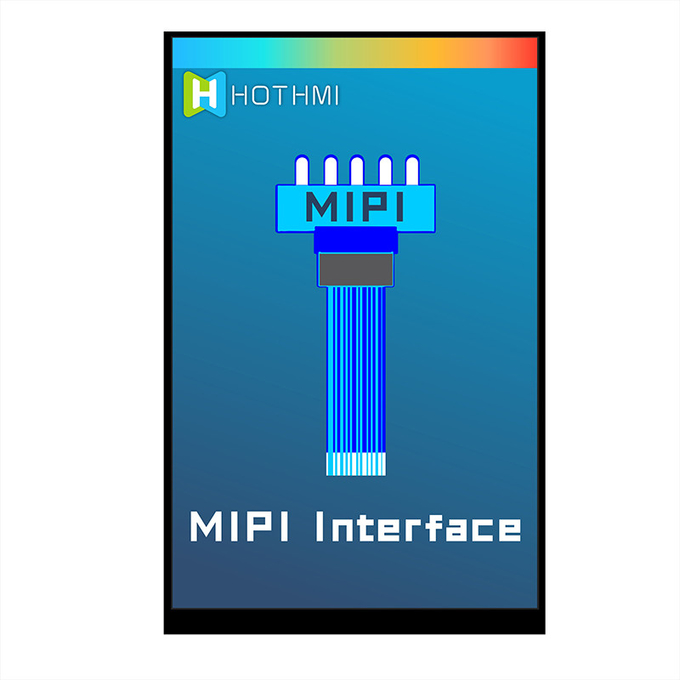

接口方式：MIPI
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：2.8v

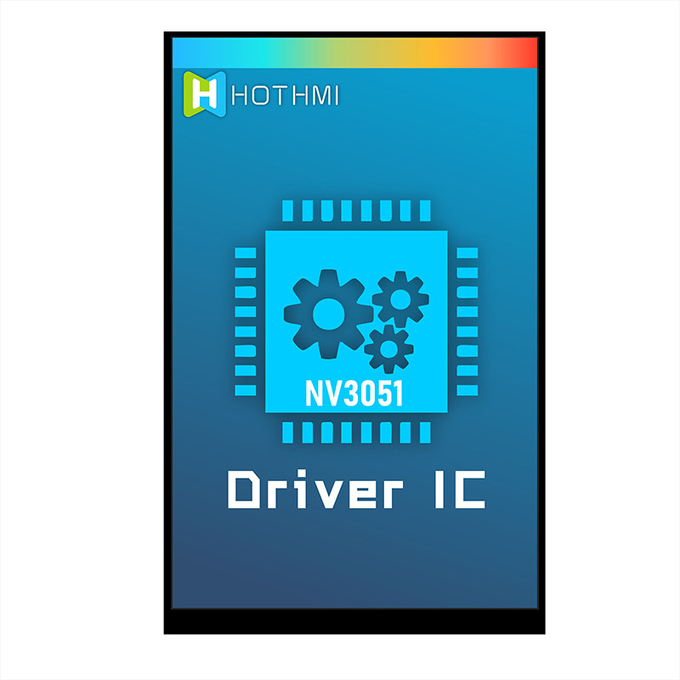

驅動芯片：NV3051

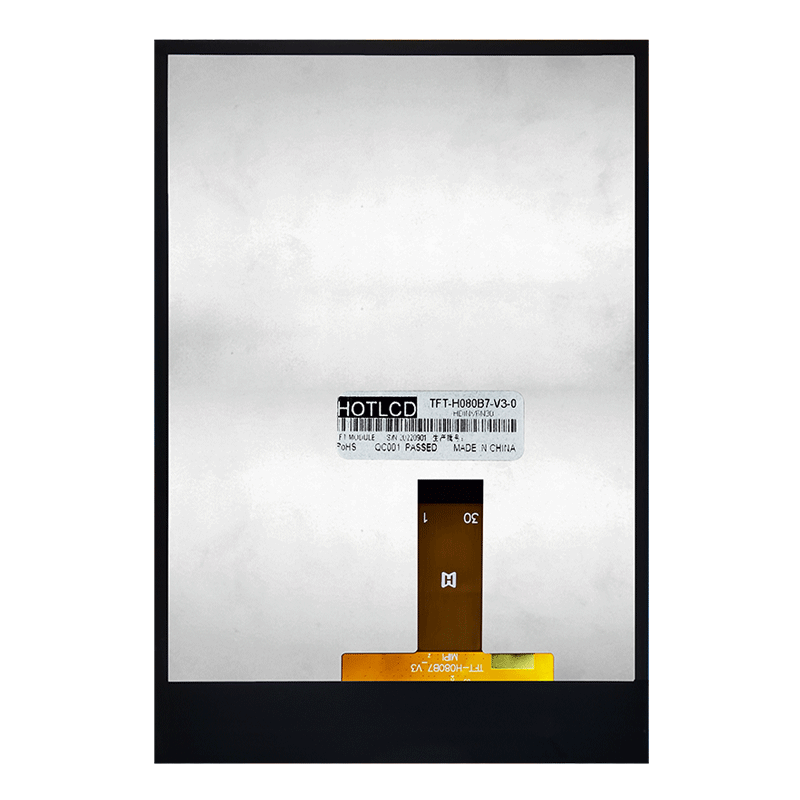

隆重推出 TFT-H080B7HDINV6N30，這是一款 8.0 英寸 IPS LCD 顯示屏，具有 800x1280 像素的高分辨率，可提供具有鮮艷色彩和清晰細節(jié)的驚人視覺效果。 憑借其先進的技術，該顯示器還設計為陽光下可讀，即使在明亮的戶外環(huán)境中也能確保最佳可見度。
無論您是將其用于游戲、流媒體視頻還是瀏覽網頁，此 TFT 模塊都是滿足您顯示需求的完美解決方案。 其 MIPI NV3051F1 技術可確?？焖俑咝У臄祿鬏?，而其 IPS 面板可提供寬視角和出色的色彩準確度。
使用 TFT-H080B7HDINV6N30 升級您的設備，體驗全新水平的視覺清晰度和性能。
General information
| Item | Specification | Unit | |

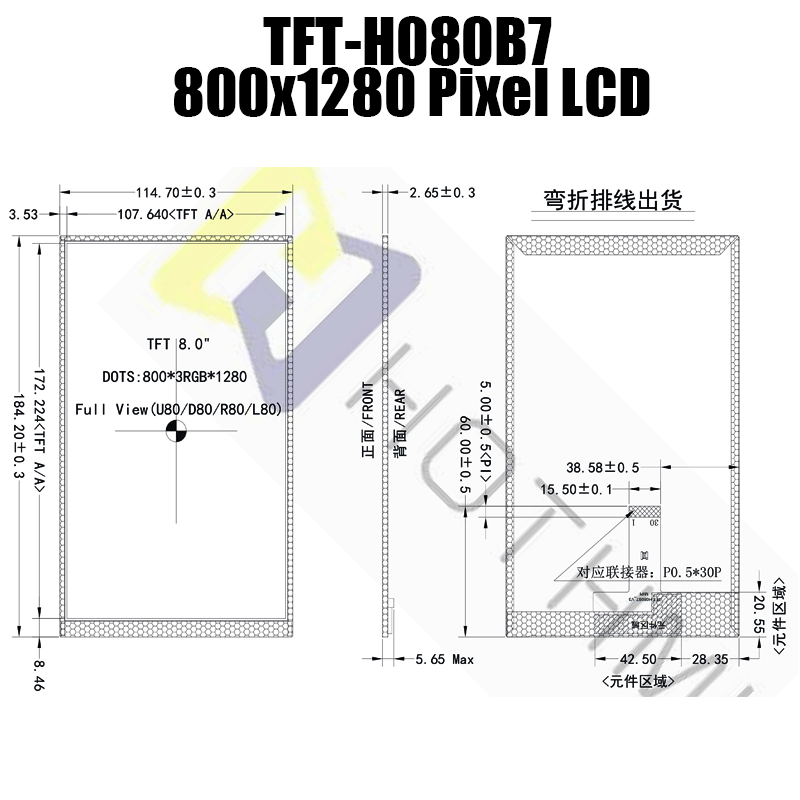

| Outline Dimension | 114.70x184.20x2.65mm | mm | |
| Display area | 107.64x172.224mm | mm | |
| Number of Pixel | 800(H) x 1280(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | NV3051 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | GND | Power supply ground |
| 2 | D2P | LVDS Positive data signal (+) |
| 3 | D2N | LVDS Negative data signal (-) |
| 4 | GND | Power supply ground |
| 5 | D1P | MIPI Positive data signal (+) |
| 6 | D1N | MIPI Negative data signal (-) |
| 7 | GND | Power supply ground |
| 8 | DCKP | MIPI Positive clock signal (+) |
| 9 | DCKN | MIPI Negative clock signal (-) |
| 10 | GND | Power supply ground |
| 11 | D0P | MIPI Positive data signal (+) |
| 12 | D0N | MIPI Negative data signal (-) |
| 13 | GND | Power supply ground |
| 14 | D3P | LVDS Positive data signal (+) |
| 15 | D3N | LVDS Negative data signal (-) |
| 16 ~ 17 | GND | Power supply ground |
| 18 | RESX | Reset pin |
| 19 | IOVCC | IO Supply Voltage |
| 20 | NC | Not connected |
| 21 ~ 22 | VCI | Power supply |
| 23 | NC | Not connected |
| 24 ~ 26 | LEDK | LED cathode |
| 27 | NC | Not connected |
| 28 ~ 30 | LEDA | LED anode |
