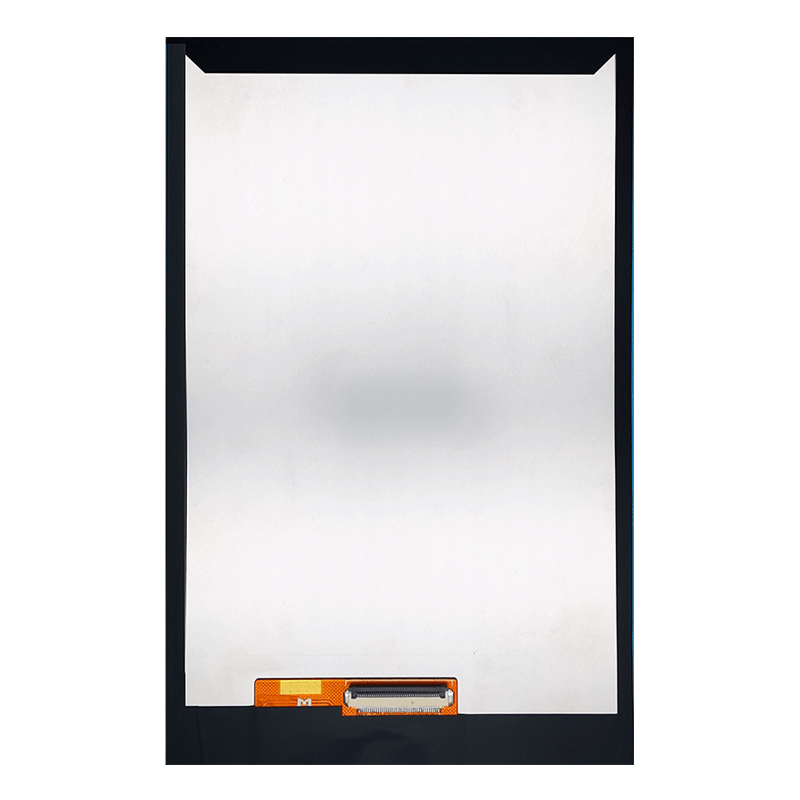

類型：TFT豎屏
顯示像素：800x1280
外形尺寸 ：114.70x184.20x2.65
VA尺寸：8.0
AA尺寸 ：8.0
有效尺寸mm：107.64x172.224
應用：車載，醫療，工控
視角：全視角
背光/亮度：600cd/m2
引腳：40pin
接口方式：MIPI
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：2.8v
驅動芯片：JD9365
隆重推出 TFT-H080A5HDIFT6N40，這是一款 8.0 英寸 IPS LCD 顯示屏，分辨率為 800x1280 像素，非常適合工業控制應用。 憑借其先進的技術，這款顯示器即使在陽光直射下也能提供最佳可視性，是戶外使用的絕佳選擇。
TFT-H080A5HDIFT6N40 采用 IPS 技術，提供寬視角和出色的色彩再現，確保所有圖像和文本都清晰且易于從任何角度閱讀。 其 MIPI 接口提供快速可靠的數據傳輸，而其 JD9365 驅動器 IC 提供卓越的性能和可靠性。
除了其卓越的性能外，TFT-H080A5HDIFT6N40 還可以承受工業使用的嚴苛條件。 憑借其堅固的結構和耐用的材料，該顯示器能夠承受極端溫度、沖擊和振動，使其成為在惡劣環境中使用的理想選擇。
無論您需要顯示器用于工業控制還是其他要求苛刻的應用，TFT-H080A5HDIFT6N40 都是完美的解決方案。 憑借其先進的技術、卓越的性能和堅固的結構，它提供了質量和耐用性的理想組合，確保它將在未來幾年提供可靠的性能。
General information

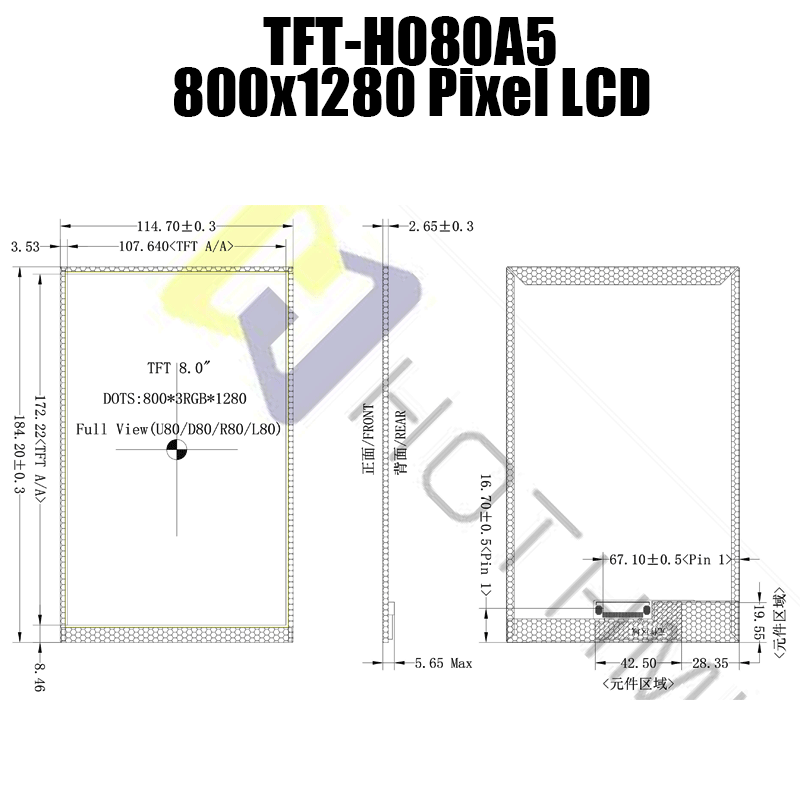

| Item | Specification | Unit | |
| Outline Dimension | 114.70x184.20x2.65mm | mm | |
| Display area | 107.64x172.224mm | mm | |
| Number of Pixel | 800(H) x 1280(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | JD9365 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | D0P | MIPI DSI positive differential data |
| 3 | D0N | MIPI DSI negative differential data |
| 4 | GND | Ground |
| 5 | D1P | MIPI DSI positive differential data |
| 6 | D1N | MIPI DSI negative differential data |
| 7 | GND | Ground |
| 8 | DCKP | MIPI DSI positive differential clock |
| 9 | DCKN | MIPI DSI negative differential clock |
| 10 | GND | Ground |
| 11 | D2P | MIPI DSI positive differential data |
| 12 | D2N | MIPI DSI negative differential data |
| 13 | GND | Ground |
| 14 | D3P | MIPI DSI positive differential data |
| 15 | D3N | MIPI DSI negative differential data |
| 16~17 | GND | Ground |
| 18~19 | IOVCC | Power Supply for I/O System |
| 20 | CSX/NC | No Connect |
| 21 | SDA/NC | No Connect |
| 22 | SCL/NC | No Connect |
| 23 | SDO/NC | No Connect |
| 24 | RESX | TFT Reset Pin |
| 25~26 | NC | No Connect |
| 27 | GND | Ground |
| 28~29 | LEDK | LED Cathode |
| 30 | GND | Ground |
| 31 | NC | No Connect |
| 32~33 | GND | Ground |
| 34 | NC | No Connect |
| 35~36 | LEDA | LED Anode |
| 37 | GND | Ground |
| 38~39 | VCI | Digital Power |
| 40 | NC | No Connect |
